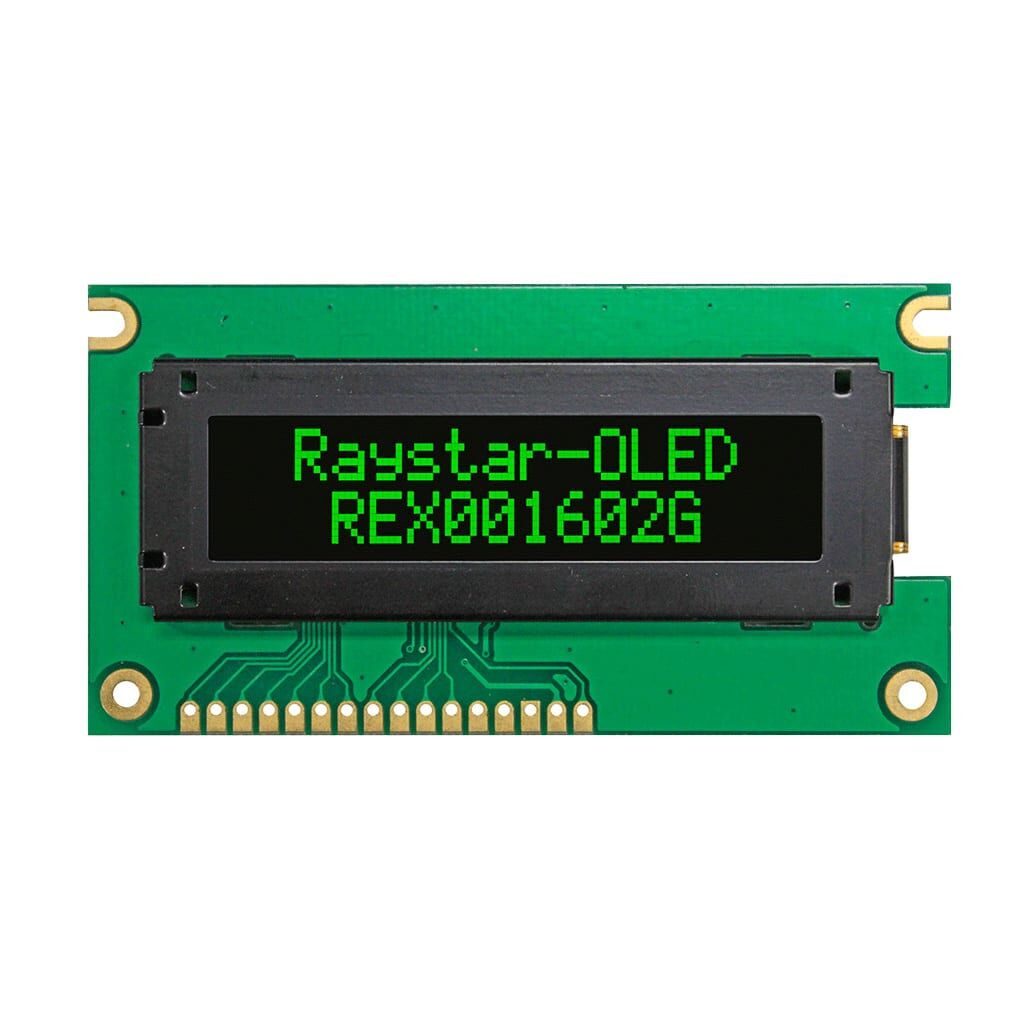

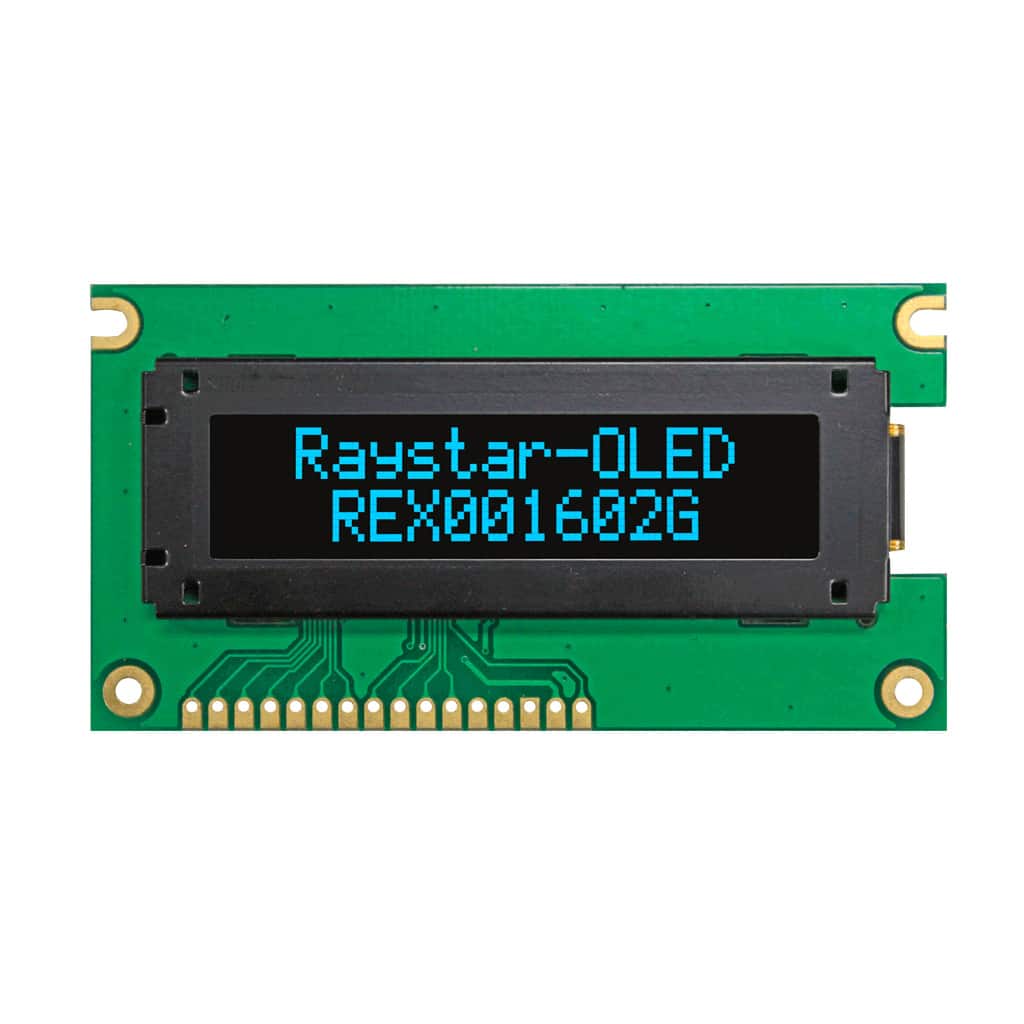

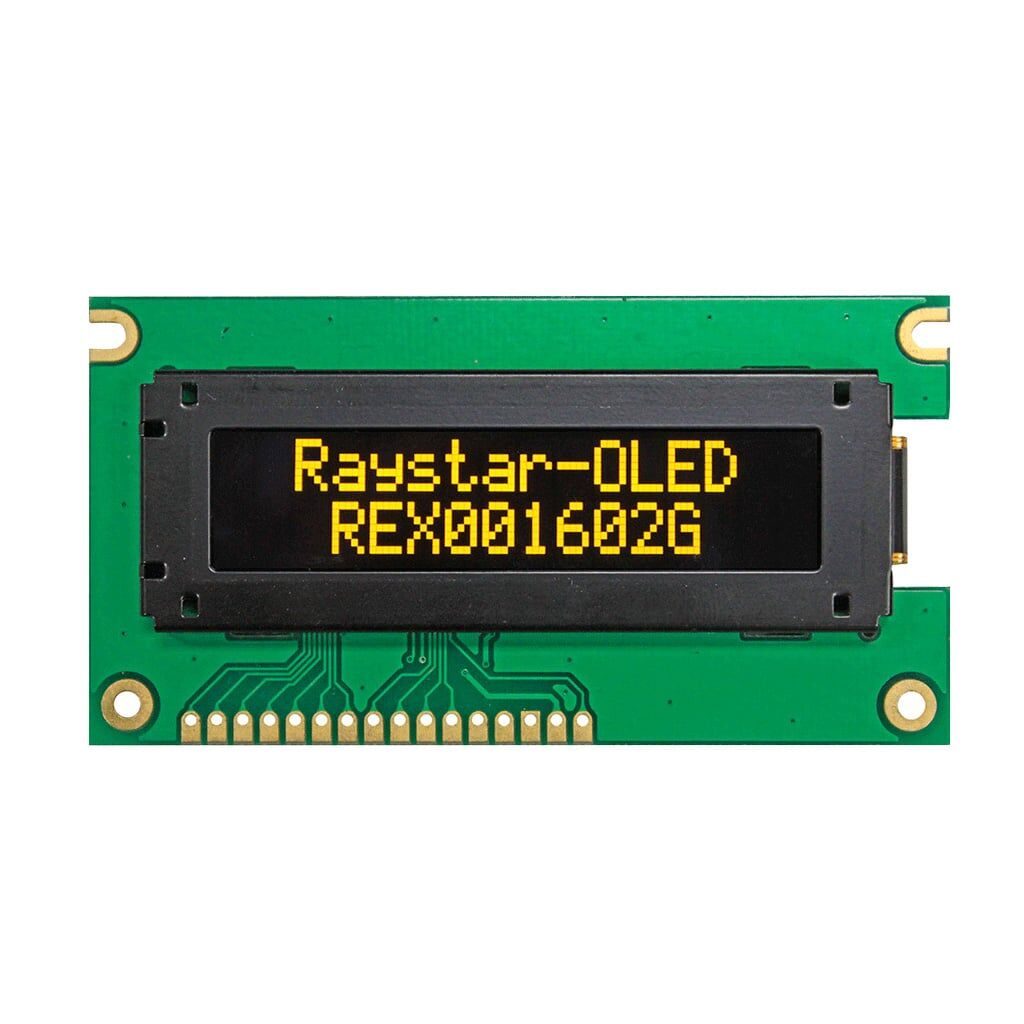

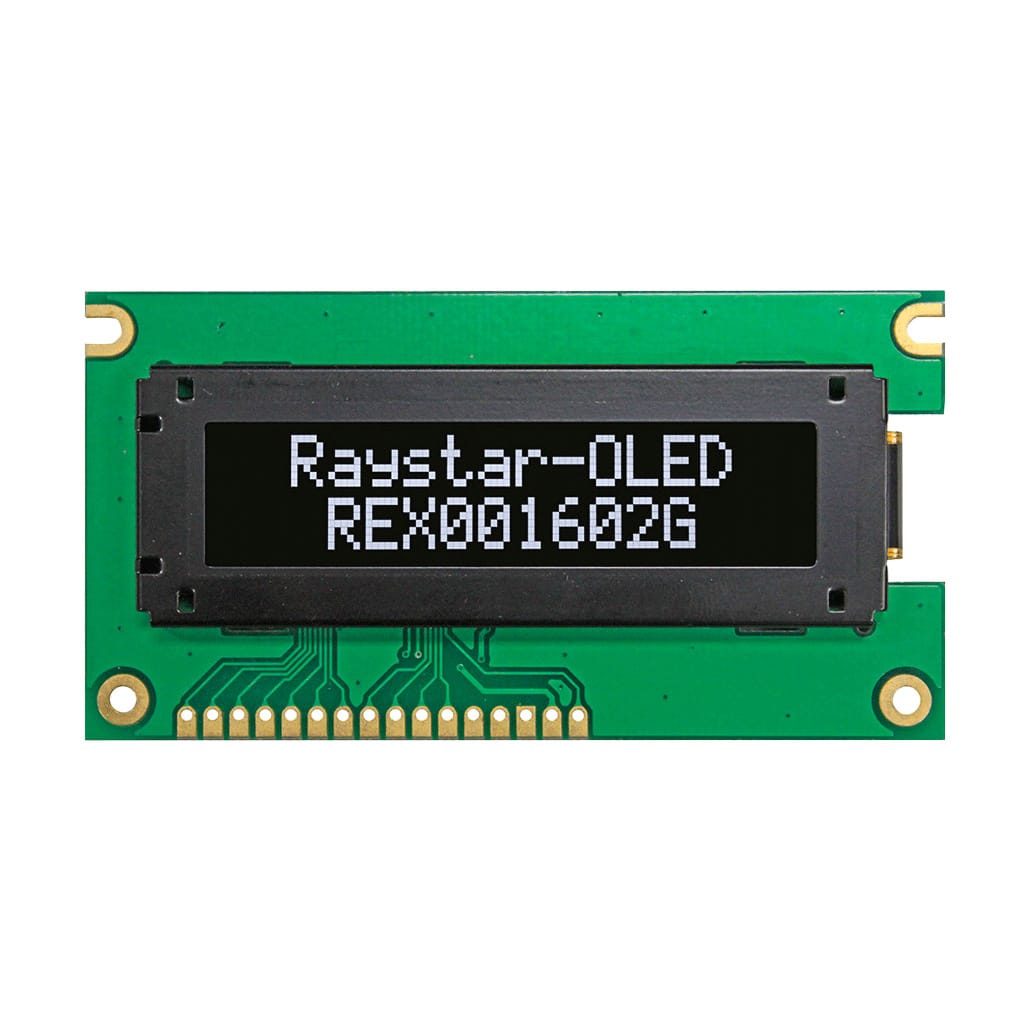

REX001602G series 16×2 Character Chip-On-Glass OLED (84.0mm x 44.0mm)
Product specs
| Dimensions | 84 × 44 mm |
|---|---|
| Characters | 16×2 |
| Emitting Colour | Blue, Green, White, Yellow |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG |
Product Description
The REX001602G series Chip-On-Glass Passive Matrix OLED offers 16×2 characters .With an active area of 56.22mm x 11.52mm within a viewable area of 58.22mm x 12.52mm
Available in a choice of Blue, Green, White or Yellow
Integrated SSD1311 IC
- 16×2 Chip-On-Glass OLED
- Dimensions: 84.0mm x 44.0mm
- Viewing Area: 58.22mm x 13.52mm
- Fast Response Times
- High Contrast
- 175° Viewing Angles
- IC: SSD1311
- Standard Operating Temperature of -40°C to +80°C
