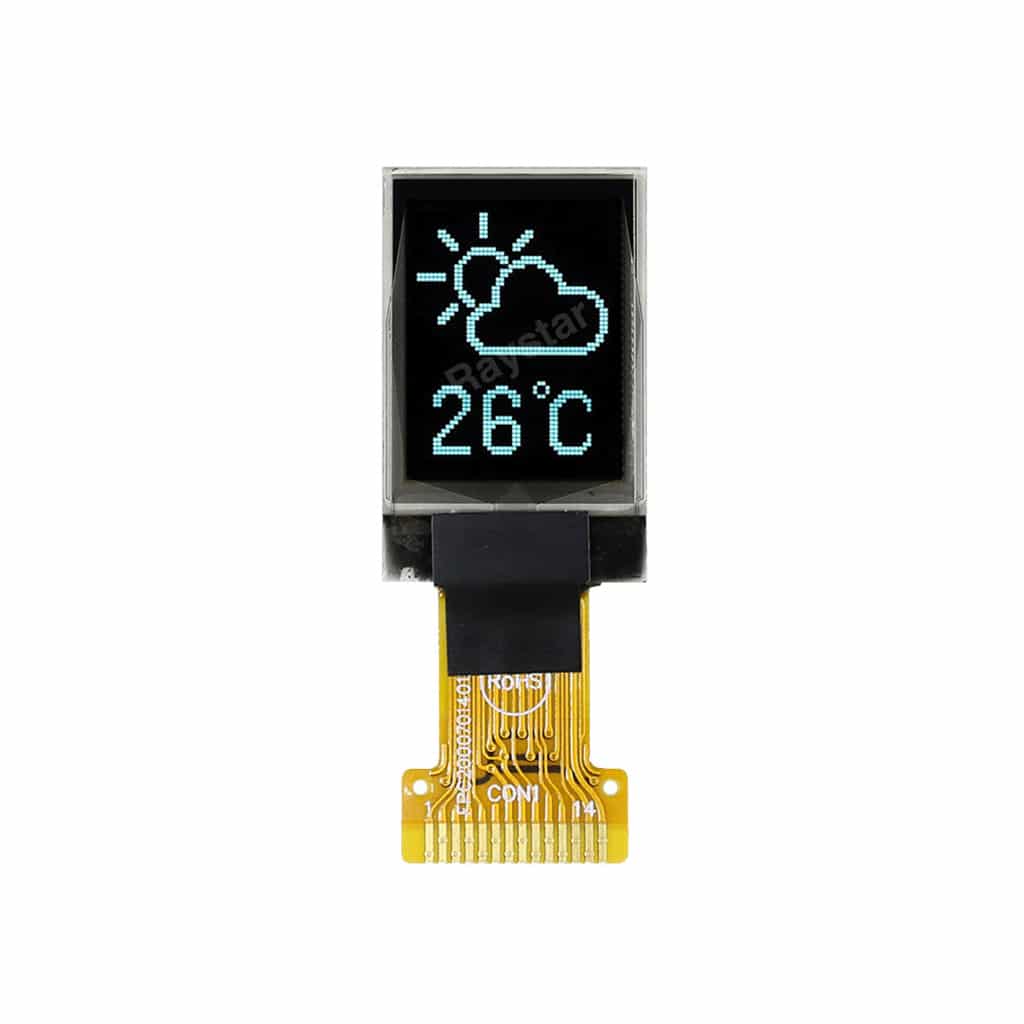

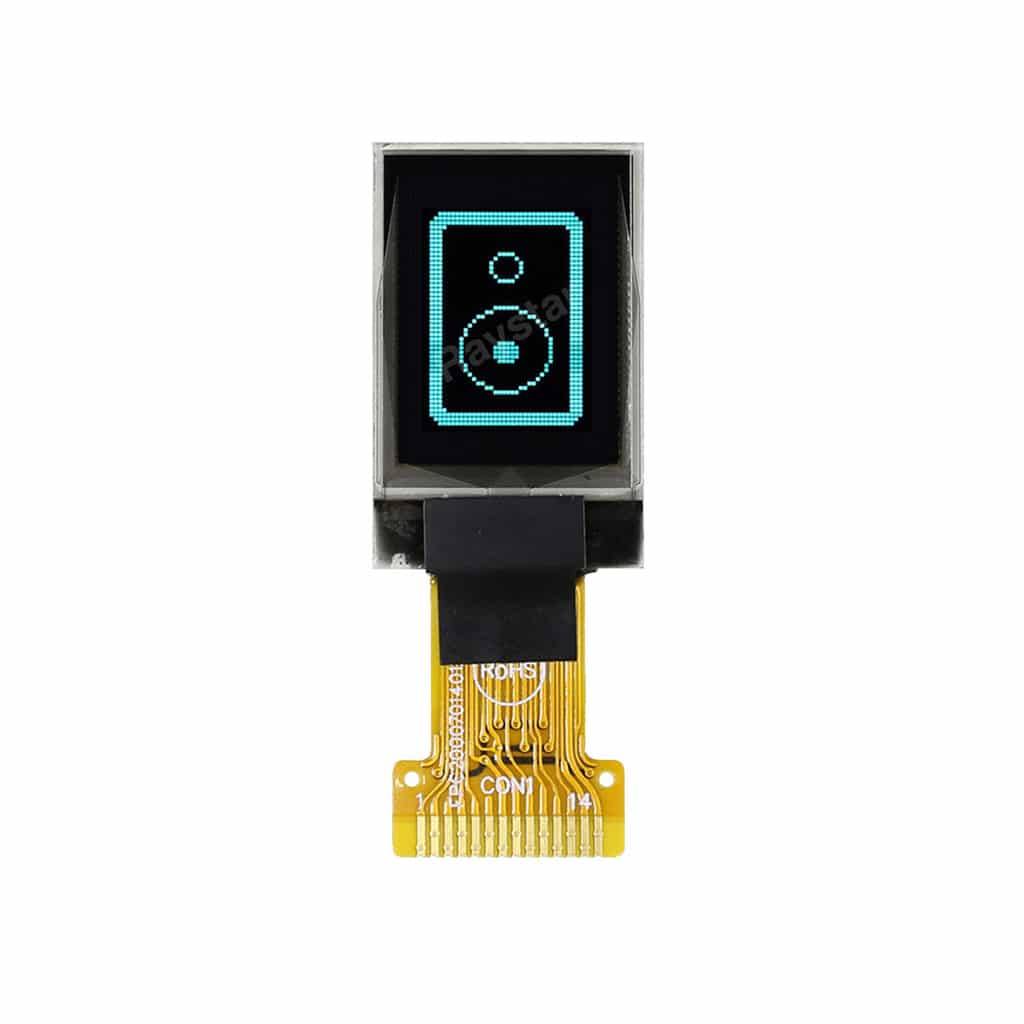

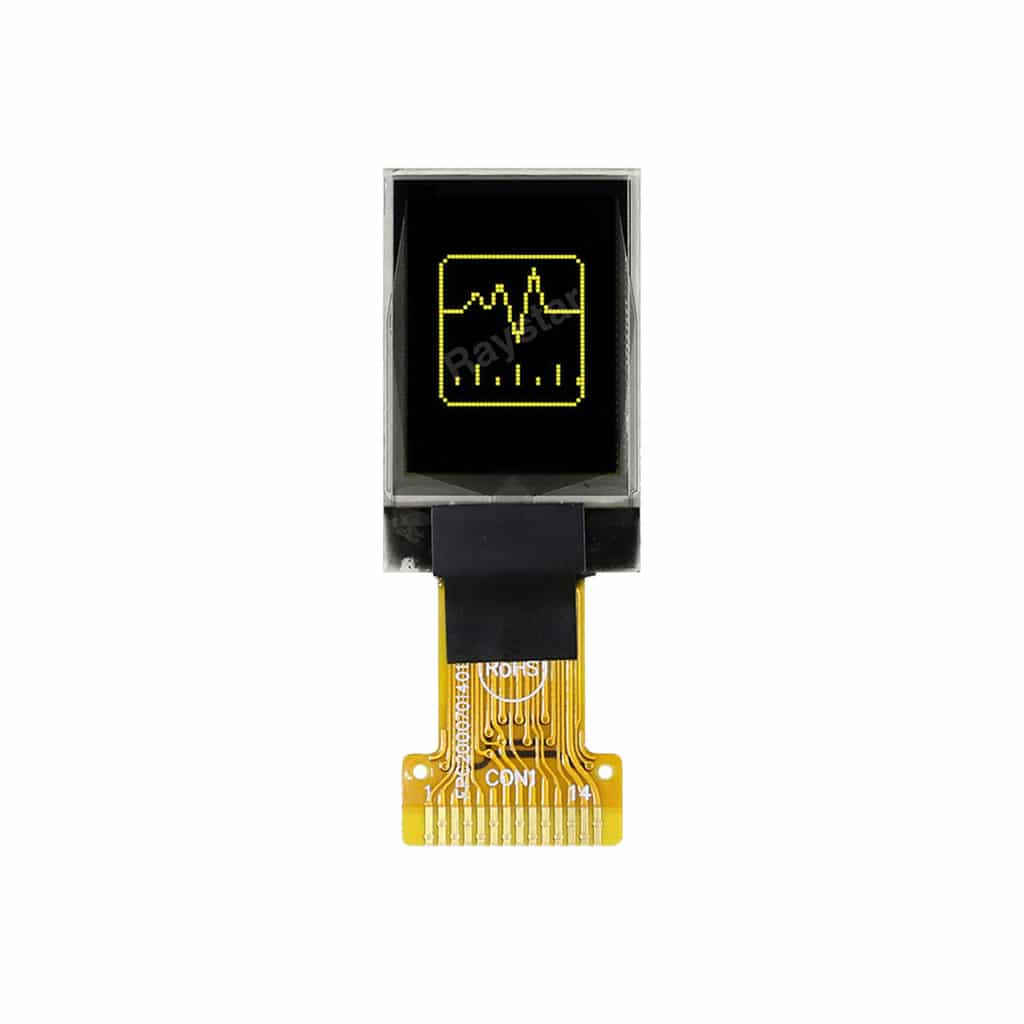

REX004864A series 48×64 COG micro-OLED (0.71″)
Product specs
| Dimensions | 13.9 × 22 mm |
|---|---|
| Pixels | 48×64 |
| Interface | I2C |
| Construction | COG |
Product Description
The REX004864A series is a Chip-On-Glass OLED offering 48×64 pixels, with an active area of 10.54mm x 14.7mm within a viewable area of 13.0mm x 22.0mm, it comes with an integrated SSD1306 IC, and is available in Blue, White or Yellow.
- 48×64 OLED
- Available in Blue, White or Yellow
- Dimensions: 13.9mm x 22.0mm
- Viewing Area: 12.14mm x 16.3mm
- SSD1306 IC on-board
- Standard Operating Temperature of -40°C to +80°C
