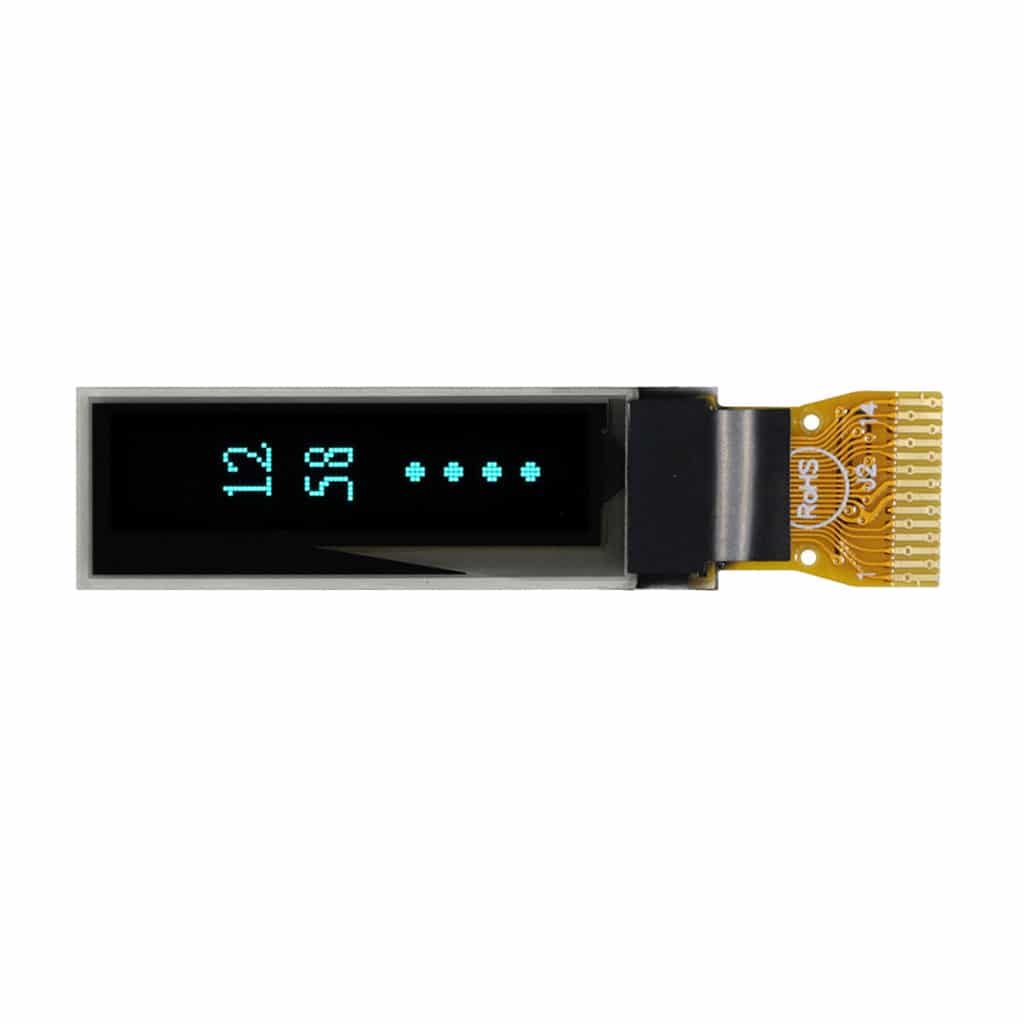

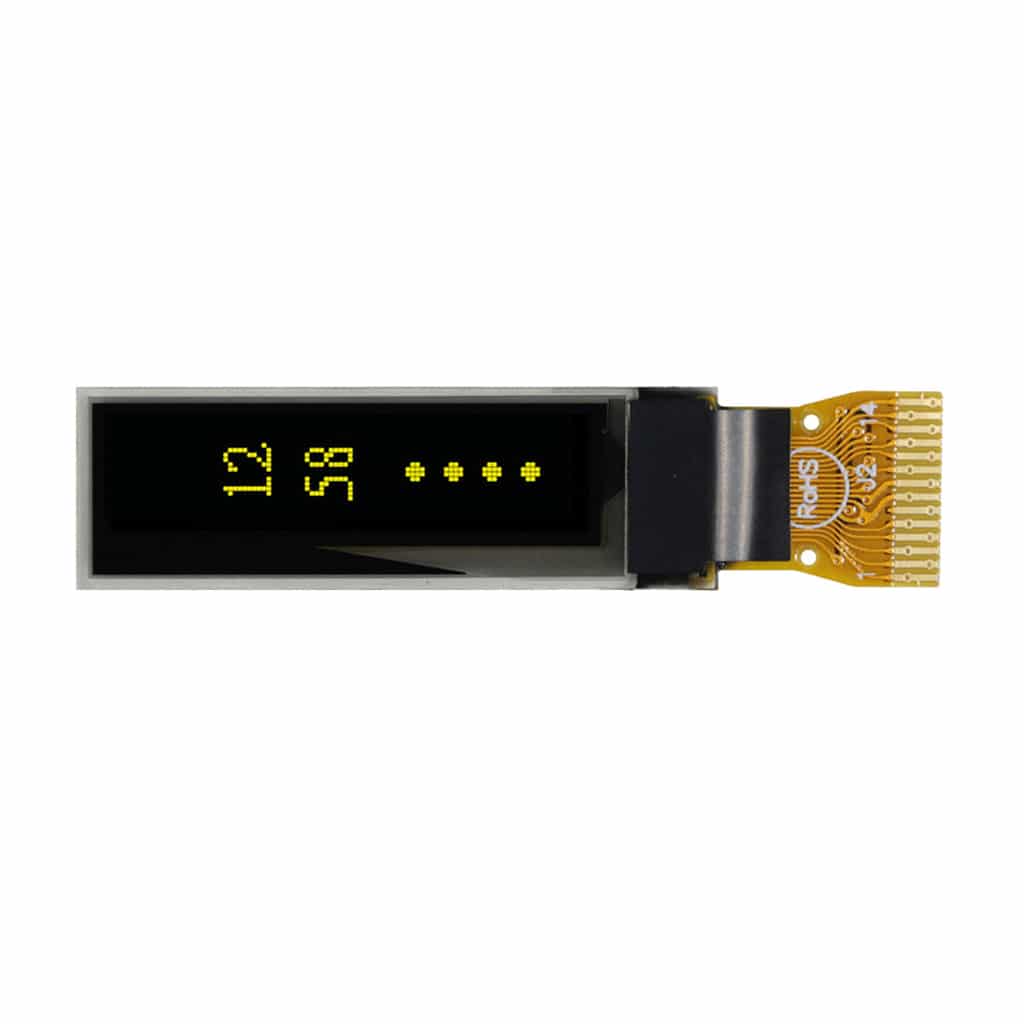

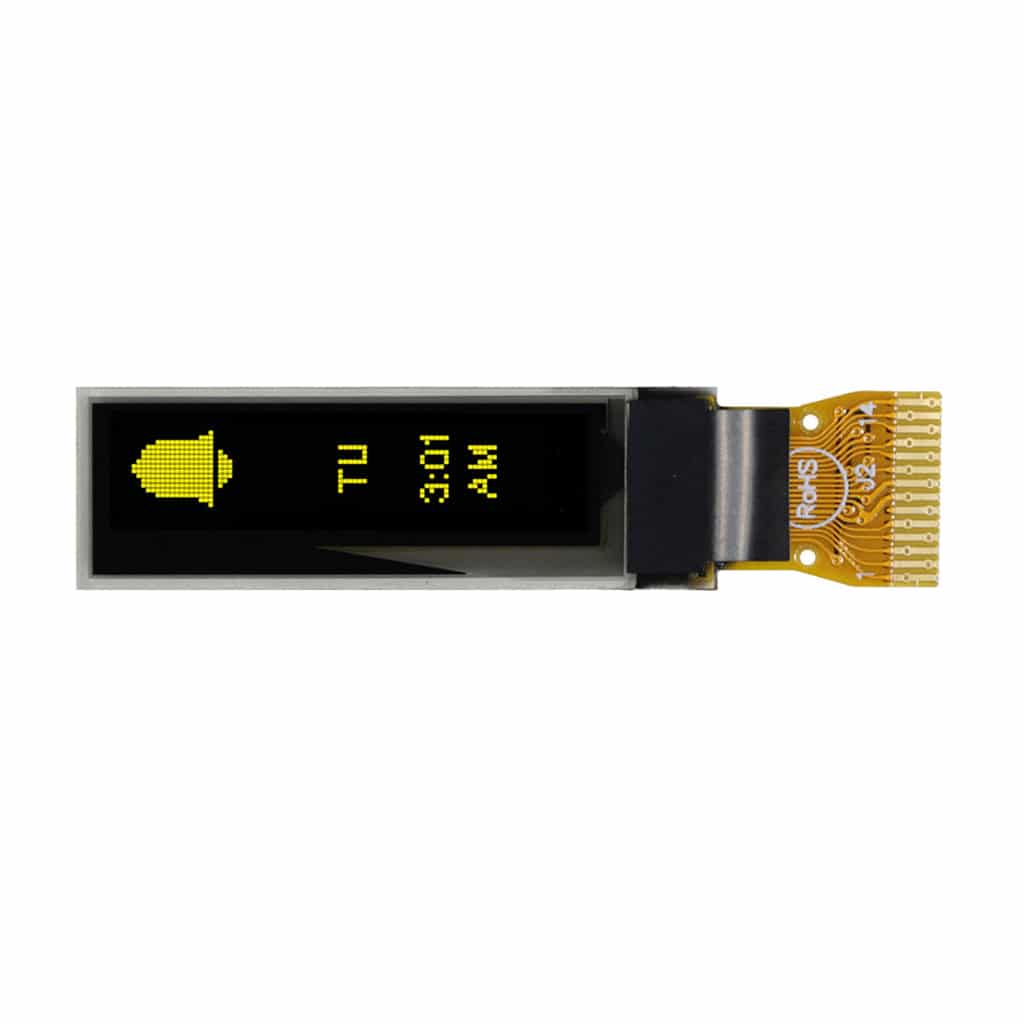

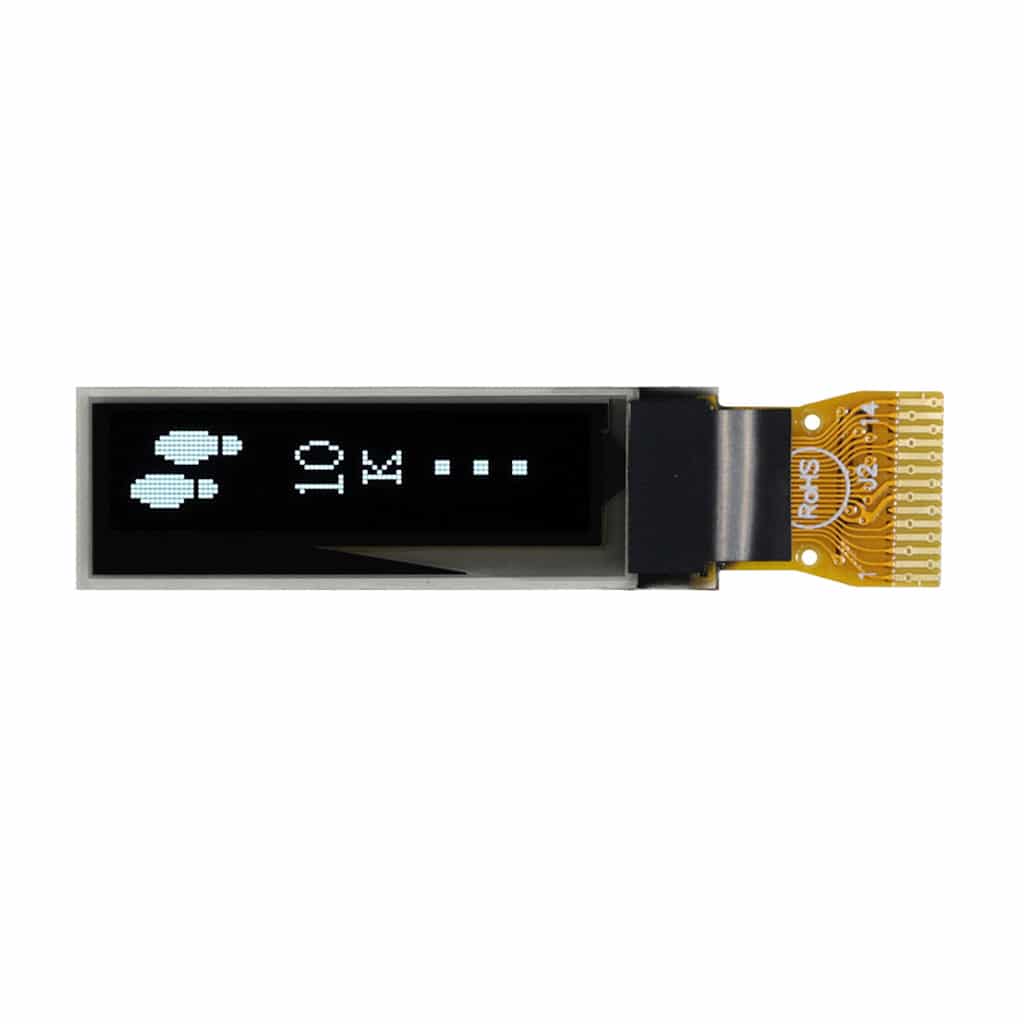

REX009616A series 96×16 COG micro-OLED (0.84″)
Product specs
| Dimensions | 29.1 × 9.2 mm |
|---|---|
| Pixels | 96×16 |
| Interface | I2C |
| Construction | COG |
Product Description
The REX009616A series is a Chip-On-Glass OLED offering 96×16 pixels, with an active area of 21.104mm x 3.504mm within a viewable area of 23.104mm x 5.504mm, it comes with an integrated SSD1306 IC, and is available in Blue, White or Yellow.
- 96×16 OLED
- Available in Blue, White or Yellow
- Dimensions: 29.10mm x 9.2mm
- Viewing Area: 23.104mm x 5.504mm
- SSD1306 IC on-board
- Standard Operating Temperature of -40°C to +80°C
