REX009632B-ZIF series 96×32 COG micro-OLED (0.68″)

SKU: REX009632B-ZIF Categories: , , Manufacturer:

Product specs

Dimensions 19.8 × 12.32 mm



6800, 8080, I2C, SPI



Product Description

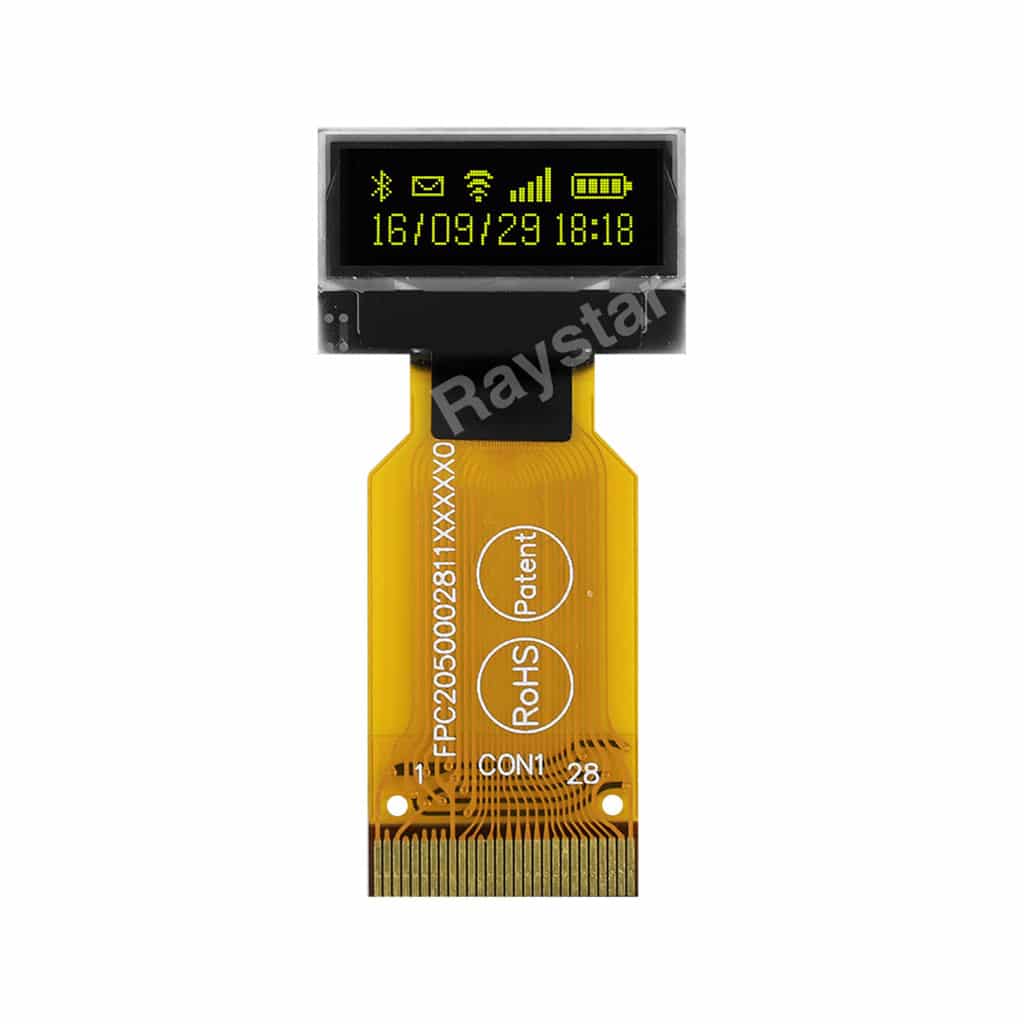

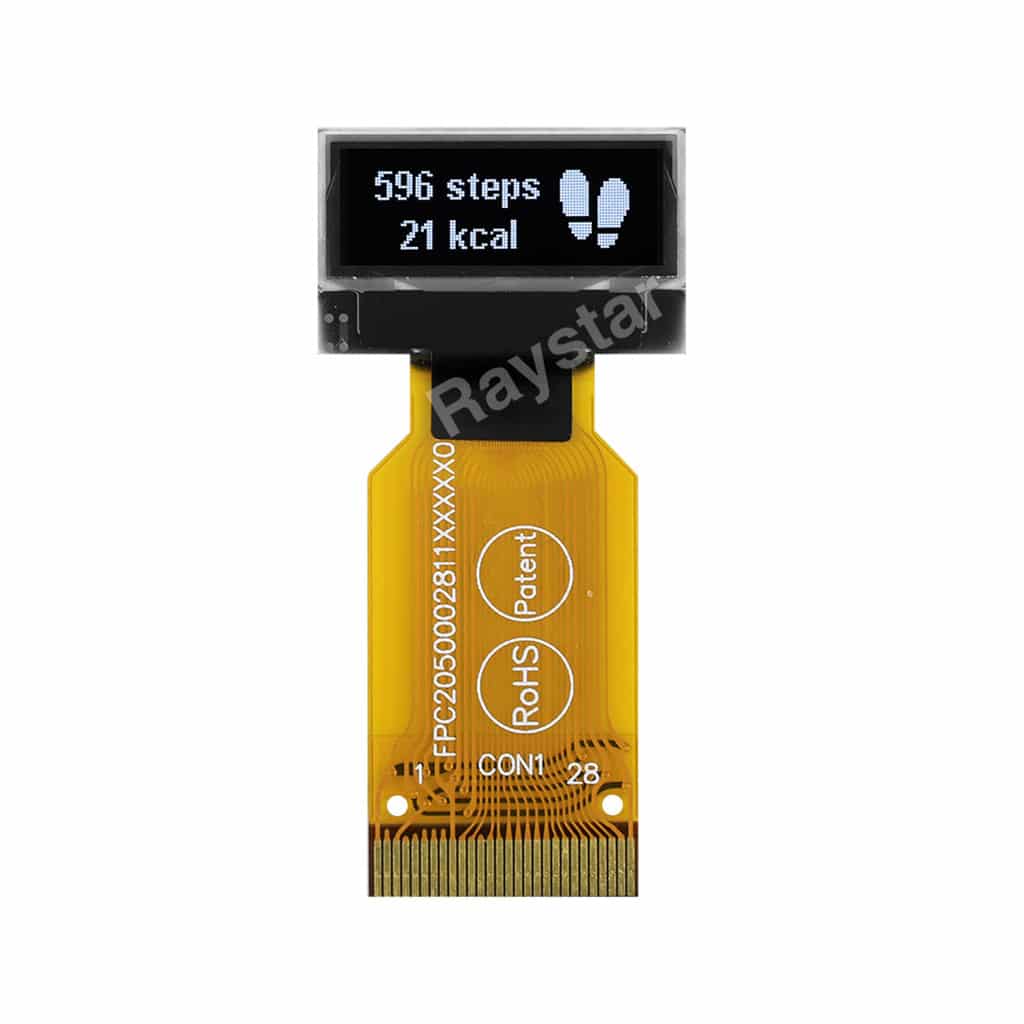

The REX009632B-ZIF series is a 0.68″ Chip-On-Glass OLED offering 96×32 pixels, with an active area of 16.298mm x 5.418mm within a viewable area of 17.298mm x 6.418mm,  it comes with an integrated SSD1305 IC, and is available in White or Yellow.

This device has a “ZIF” connector friendly FFC




  • 96×32 OLED
  • ZIF friendly FFC
  • Available in White or Yellow
  • Dimensions: 19.8mm x 12.32mm
  • Viewing Area: 17.298mm x 6.418mm
  • SSD1305 IC on-board
  • Standard Operating Temperature of -40°C to +80°C
