REX012832D series 128×32 SPI COG micro-OLED 30.0mm x 11.5mm (0.91″)
Product specs
| Dimensions | 30.0 × 11.5 mm |
|---|---|
| Pixels | 128×32 |
| Interface | SPI |
| Construction | COG |
Product Description

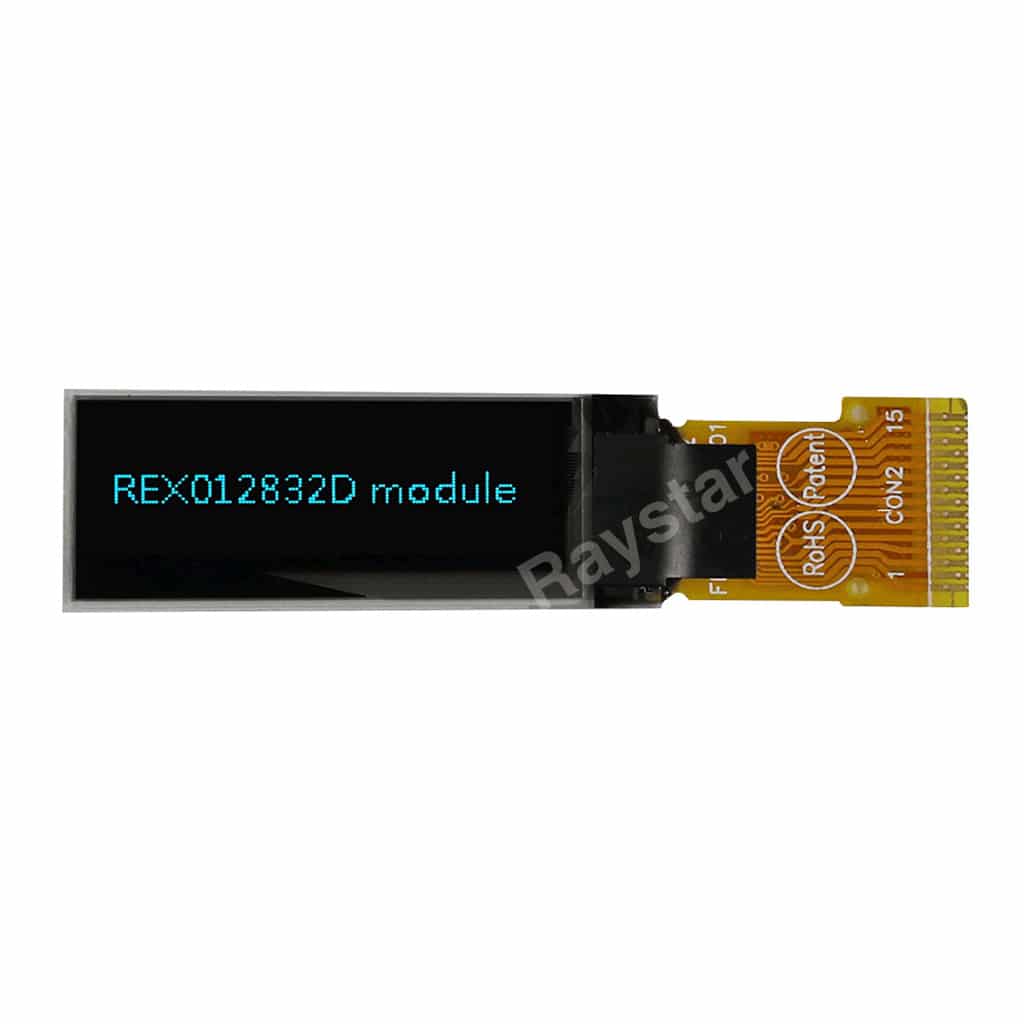

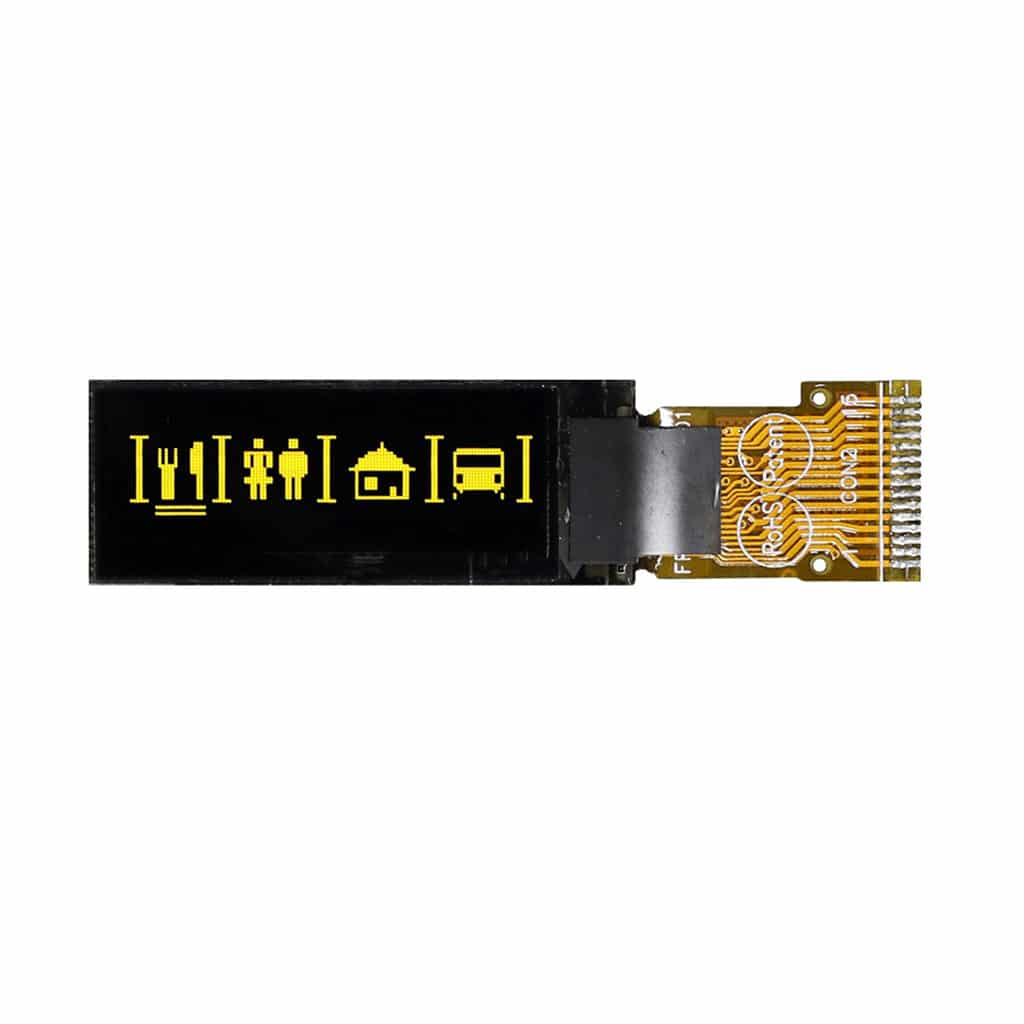

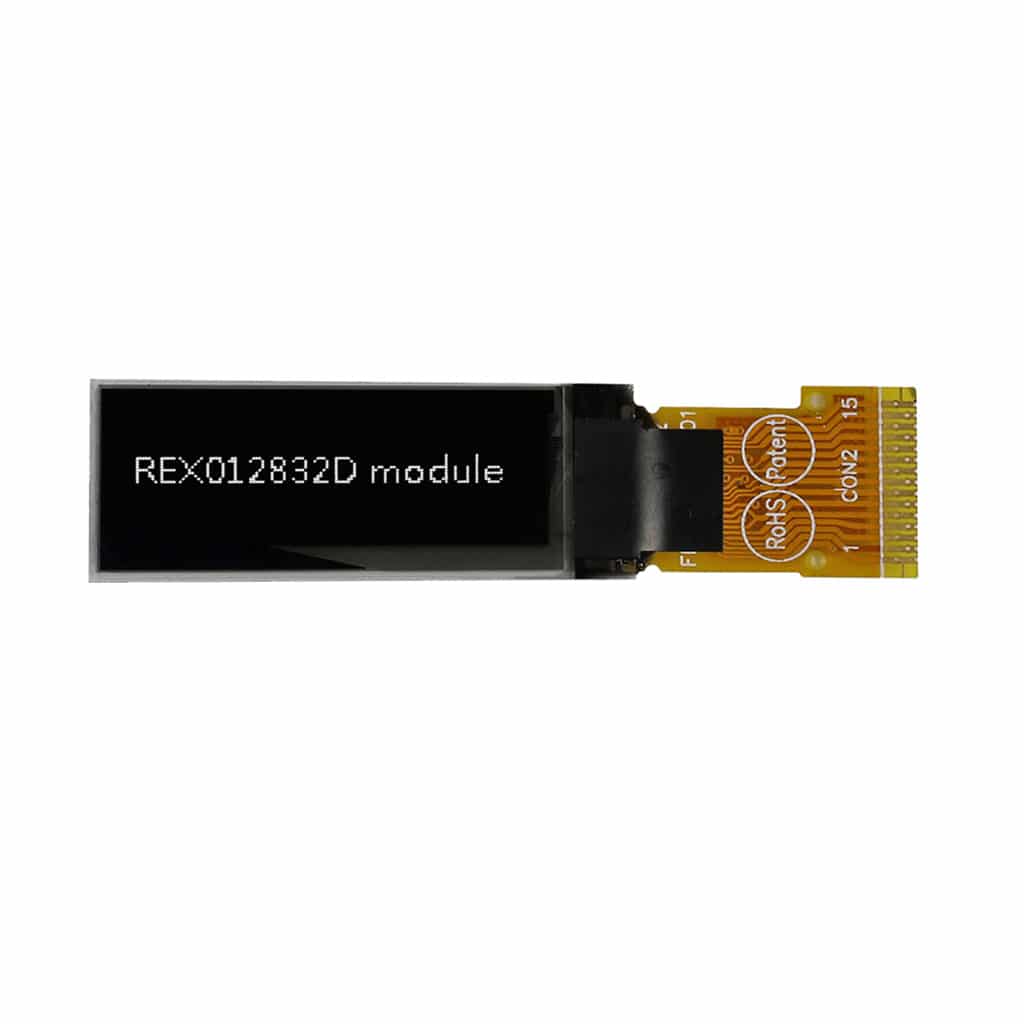

The REX012832D series is a Chip-On-Glass OLED offering 128×32 pixels within a 24.384mm x 7.584mm viewable area, it comes with an integrated SSD1306BZ IC, and is available in Blue, White or Yellow. This device has a 4-wire SPI interface
- 128×32 Graphic OLED
- Size: 0.91″
- Available in Blue, White or Yellow
- Dimensions: 30.0mm x 11.5mm
- Viewing Area: 24.384mm x 7.584mm
- Active Area: 22.384mm x 5.584mm
- Dot Size: 0.152mm x 0.152mm
- Dot Pitch: 0.175mm x 0.175mm
- 4-Wire SPI Interface
- Power Supply: 3V
- IC: SSD1306BZ
- Standard Operating Temperature of -40°C to +80°C
