Product specs
Dimensions | 42.04 × 27.22 mm |
---|---|
Pixels | 128×64 |
Interface | 6800, 8080, I2C, SPI |
Construction | COG |
Dimensions | 42.04 × 27.22 mm |
---|---|
Pixels | 128×64 |
Interface | 6800, 8080, I2C, SPI |
Construction | COG |

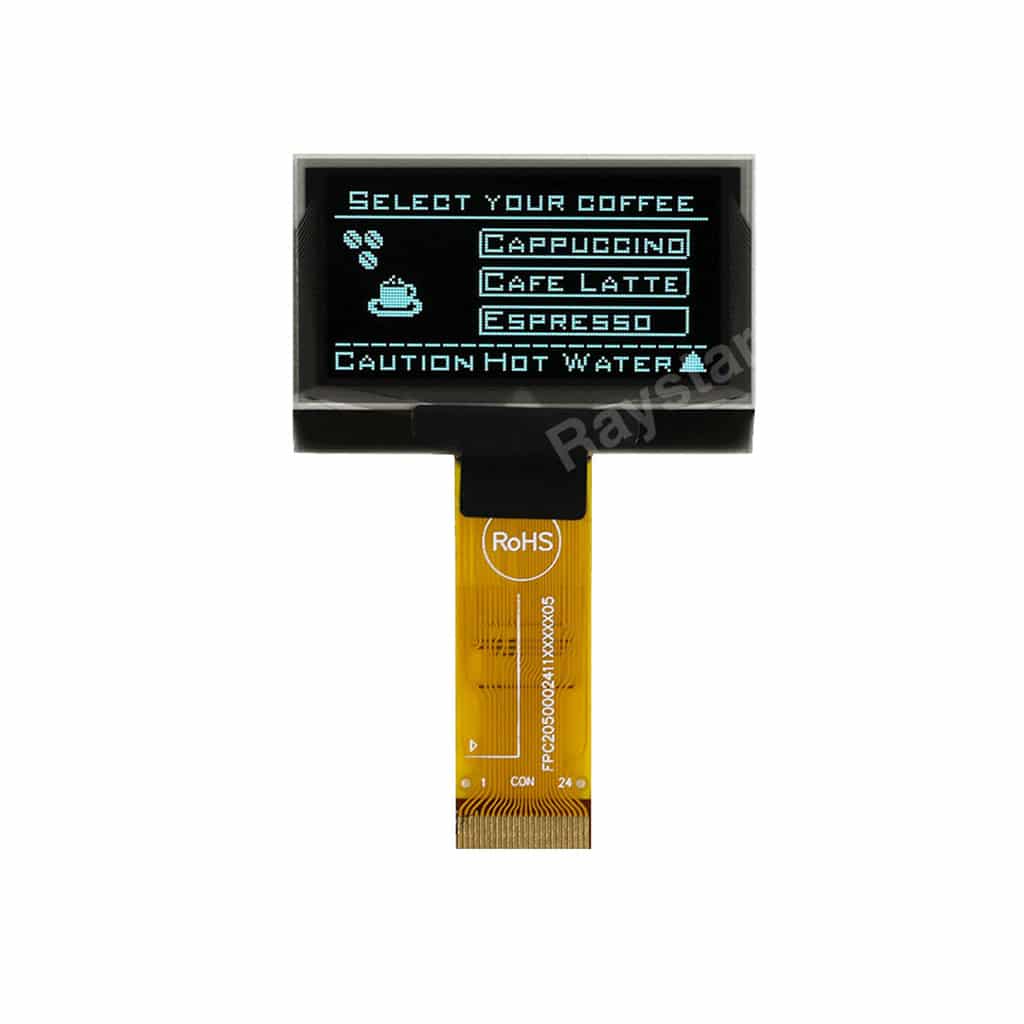

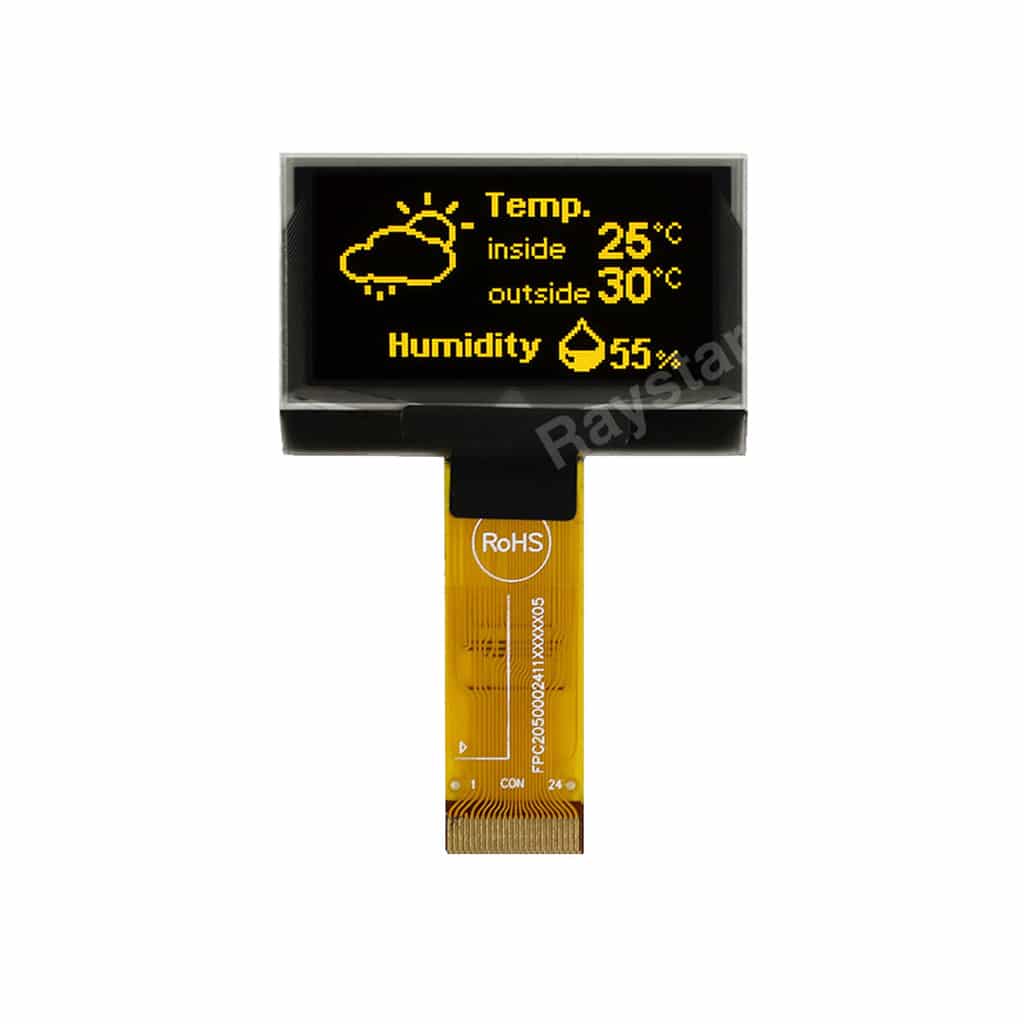

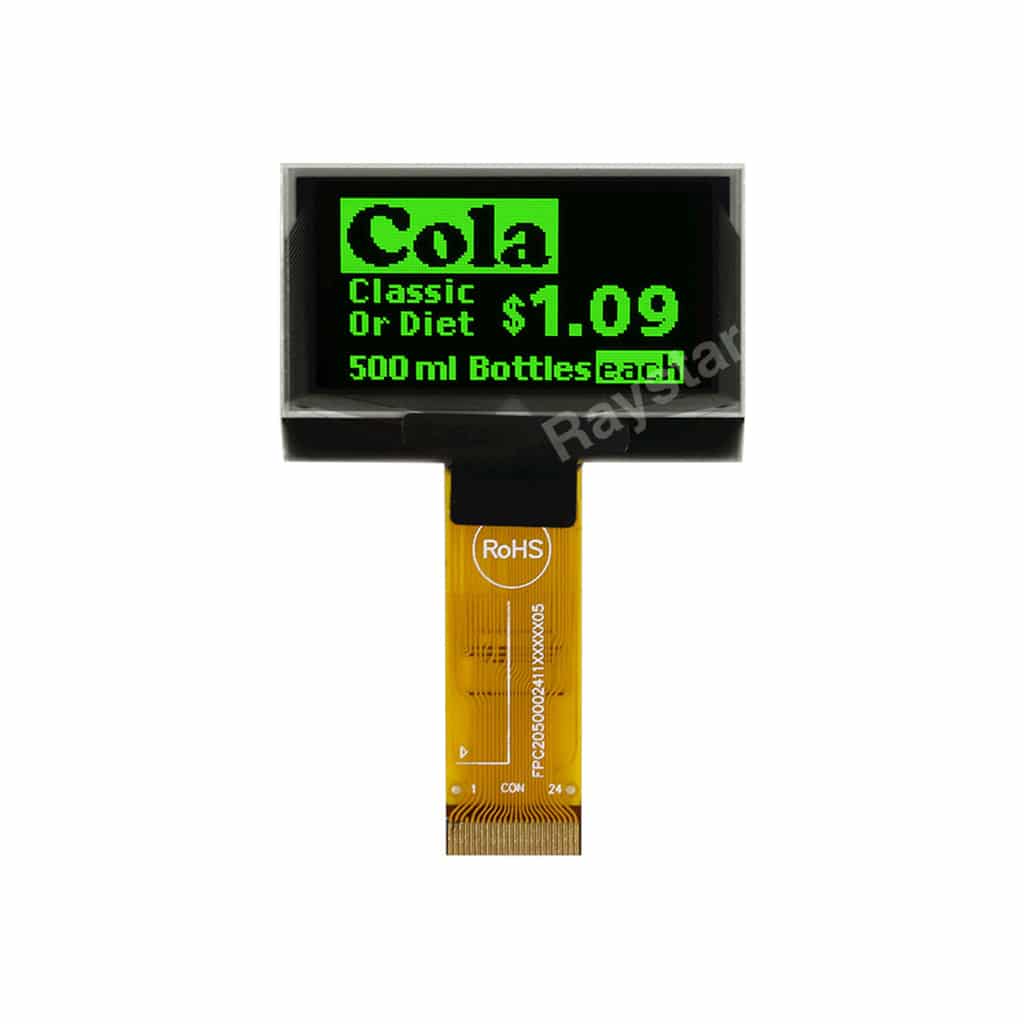

The REX012864A series is a 1.54″ Chip-On-Glass OLED offering 128×64 pixels within a 37.05mm x 19.52mm viewable area, it comes with an integrated SSD1309 IC, and is available in Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface
