REX012864C-Hotbar series 128×64 COG micro-OLED 26.7mm x 19.26mm (0.96″)

SKU: REX012864C-Hotbar Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 26.7 × 19.26 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

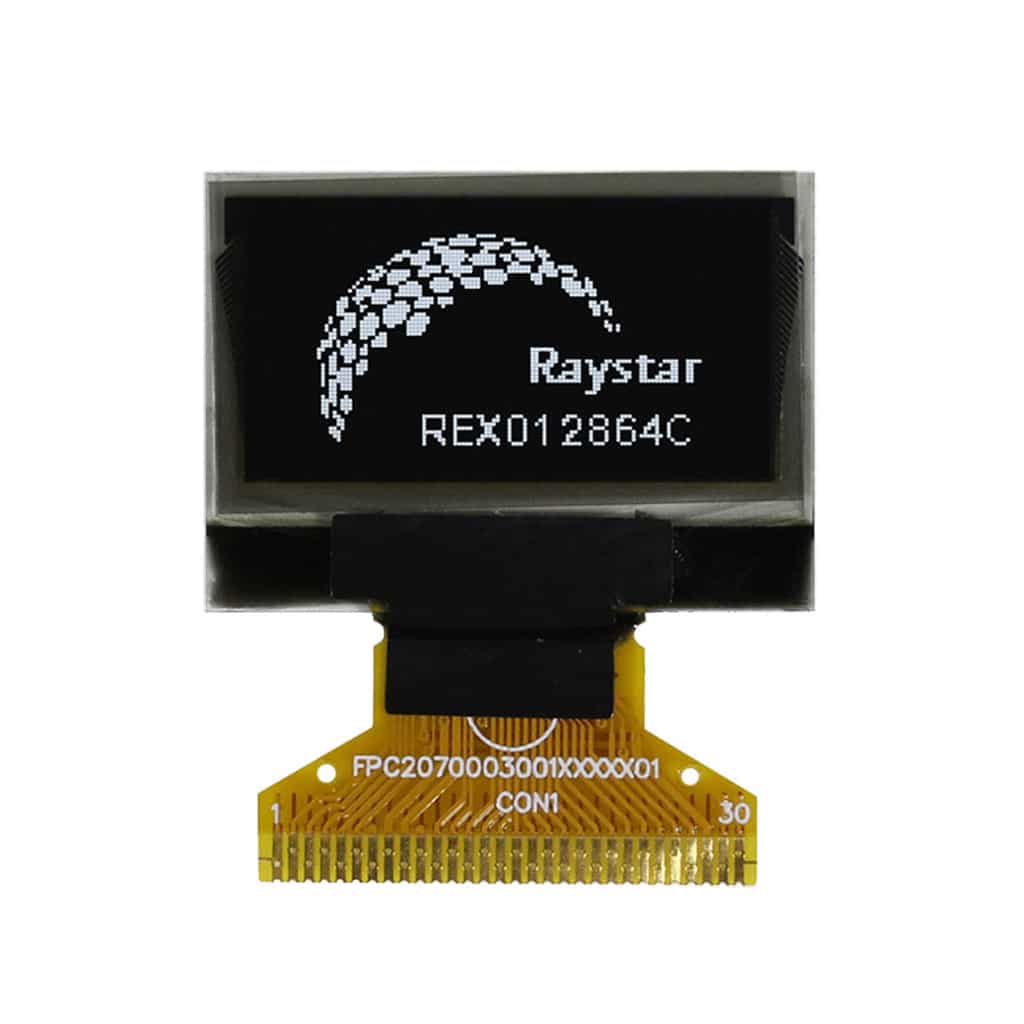

The REX012864C-Hotbar series is a 0.96″ Chip-On-Glass OLED  offering 128×64 pixels within a 23.34mm x 11.46mm viewable area, it comes with an integrated SH1106G IC, and is available in White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface.

This device is “solder straight on” or hotbar solder – we can offer the REX012864C-ZIF series if you require a version that can be used with a connector









  • 128×64 Graphic OLED
  • Size: 0.96″

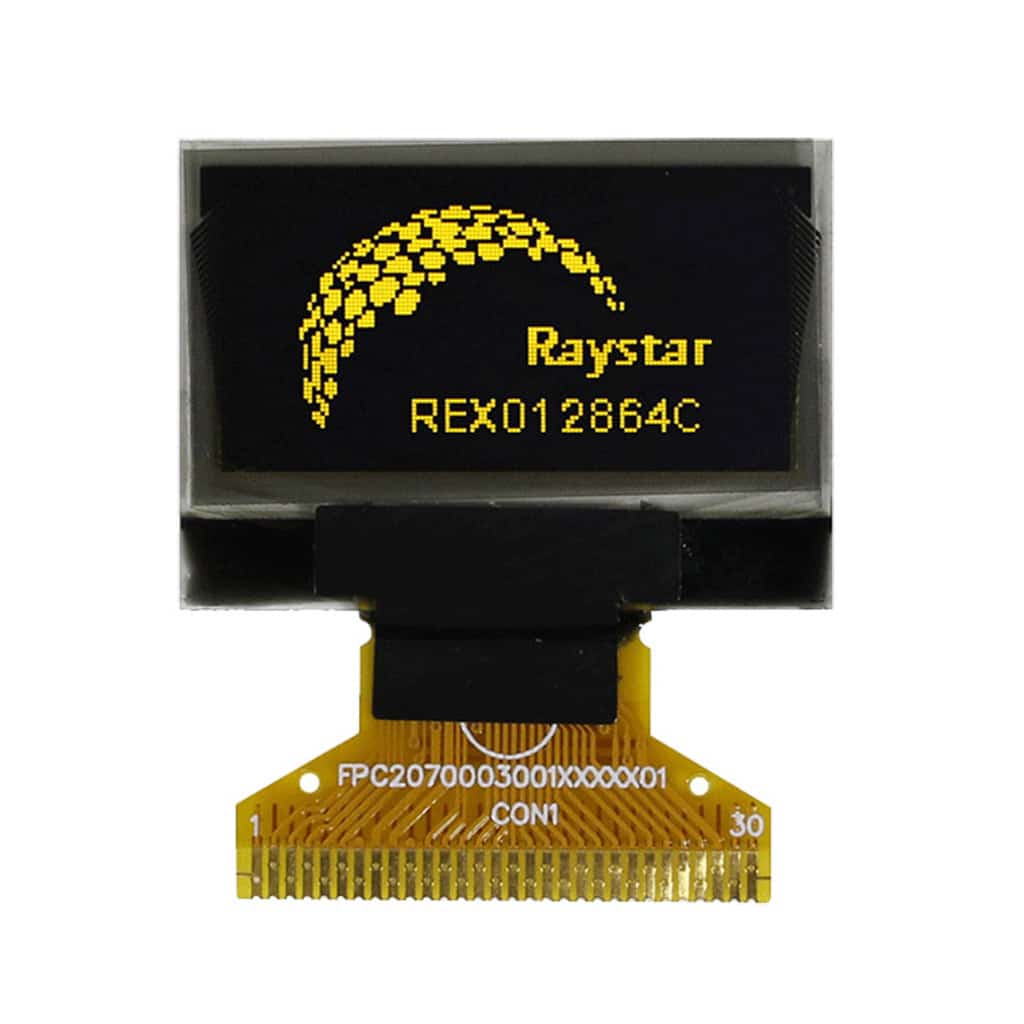

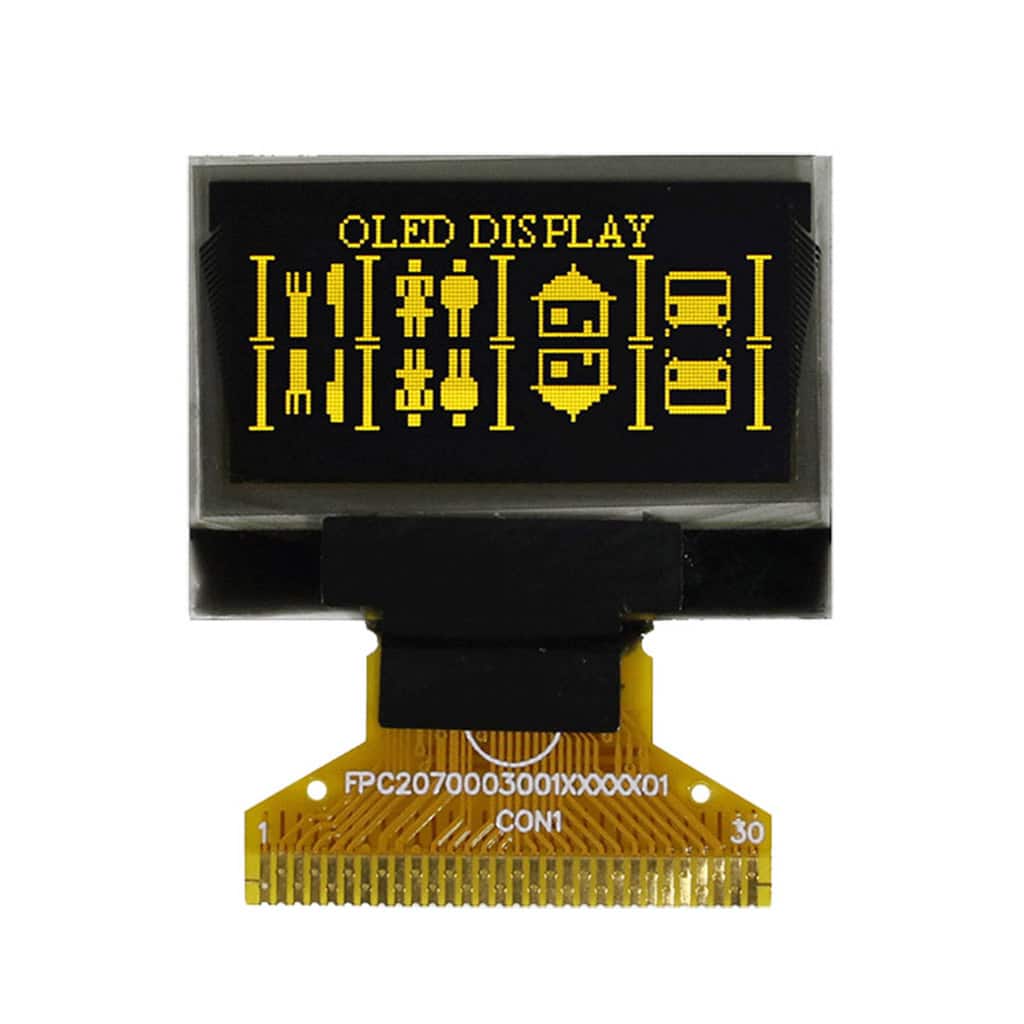

  • Available in White or Yellow

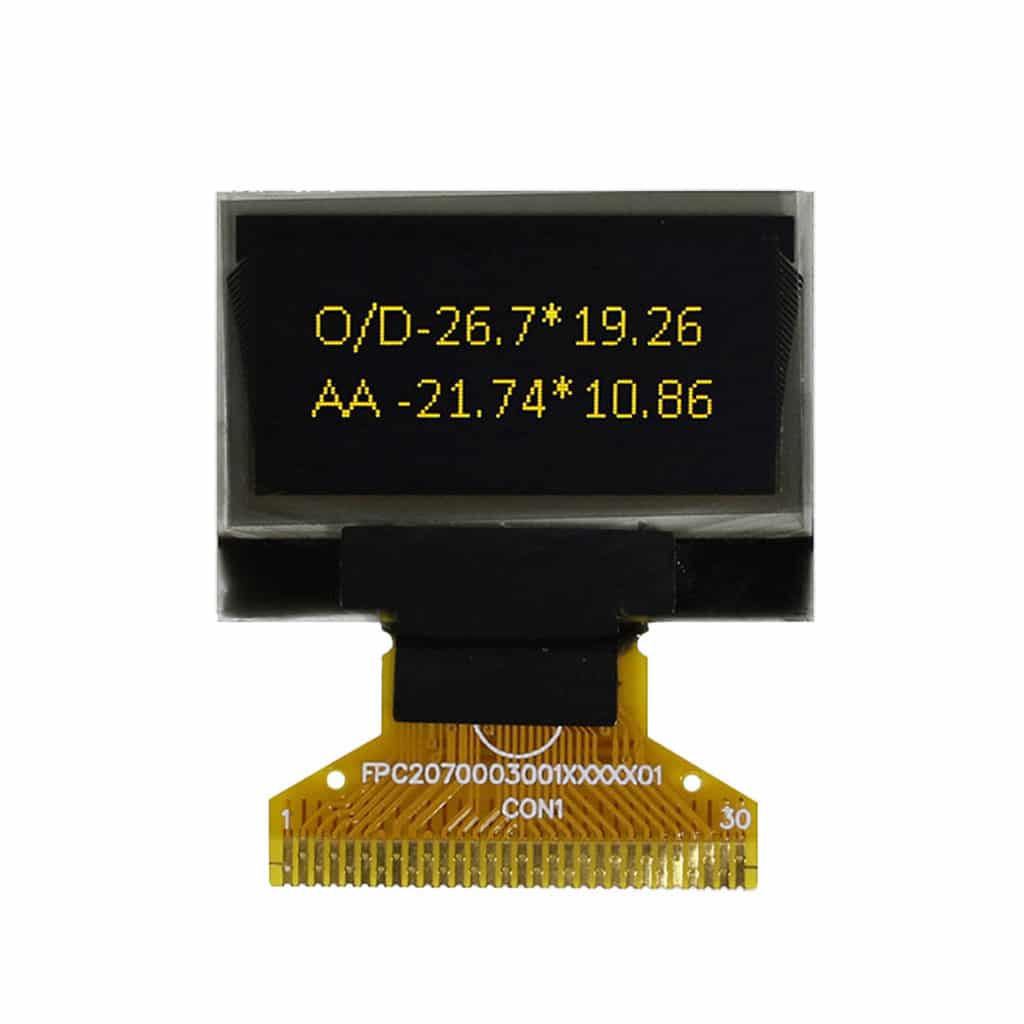

  • Dimensions: 26.7mm x 19.26mm
  • Viewing Area: 23.34mm x 11.46mm
  • Active Area: 21.74mm x 10.86mm
  • Dot Size: 0.148mm x 0.148mm
  • Dot Pitch: 0.17mm x 0.17mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SH1106G
  • Standard Operating Temperature of -40°C to +80°C
