REX012864J series 128×64 COG on PCB OLED 75.0mm x 52.7mm (2.42″)

SKU: REX012864J Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 75 × 52.7 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG+PCB

Product Description

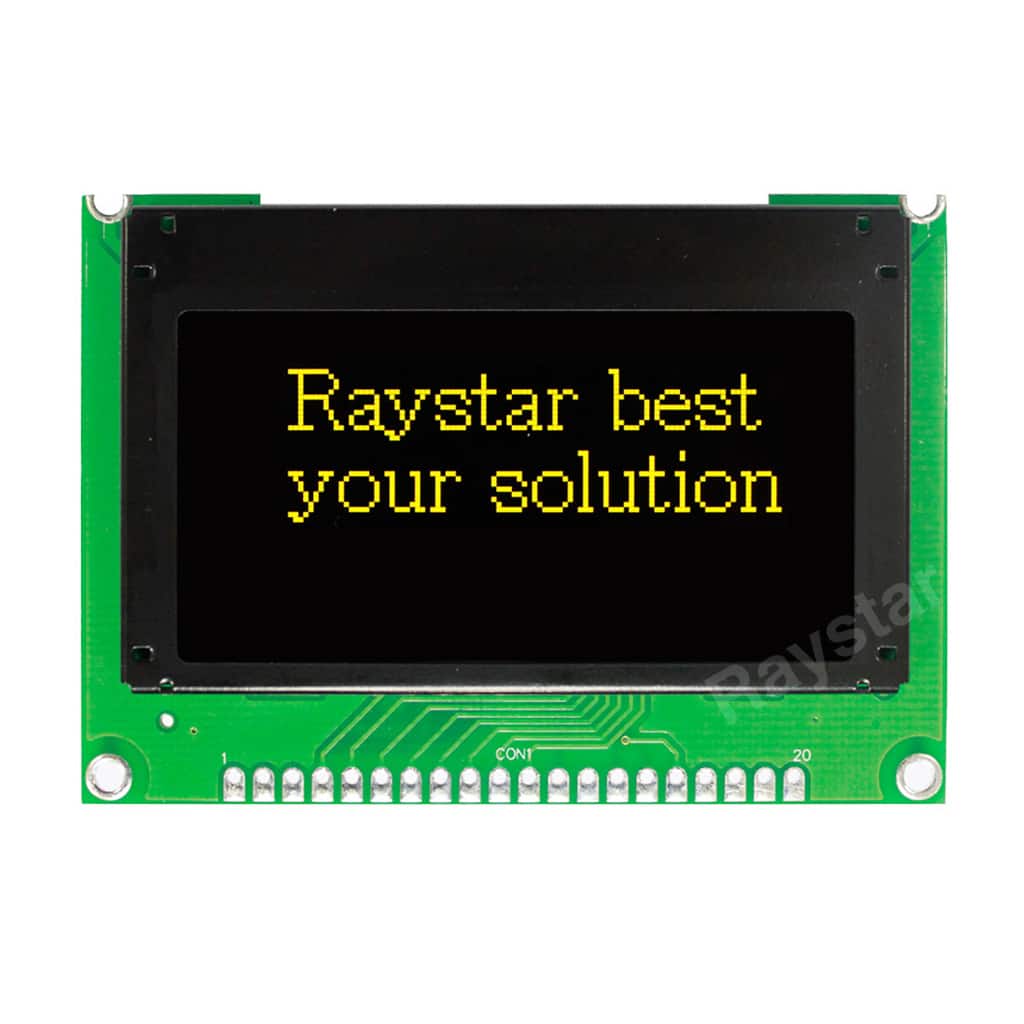

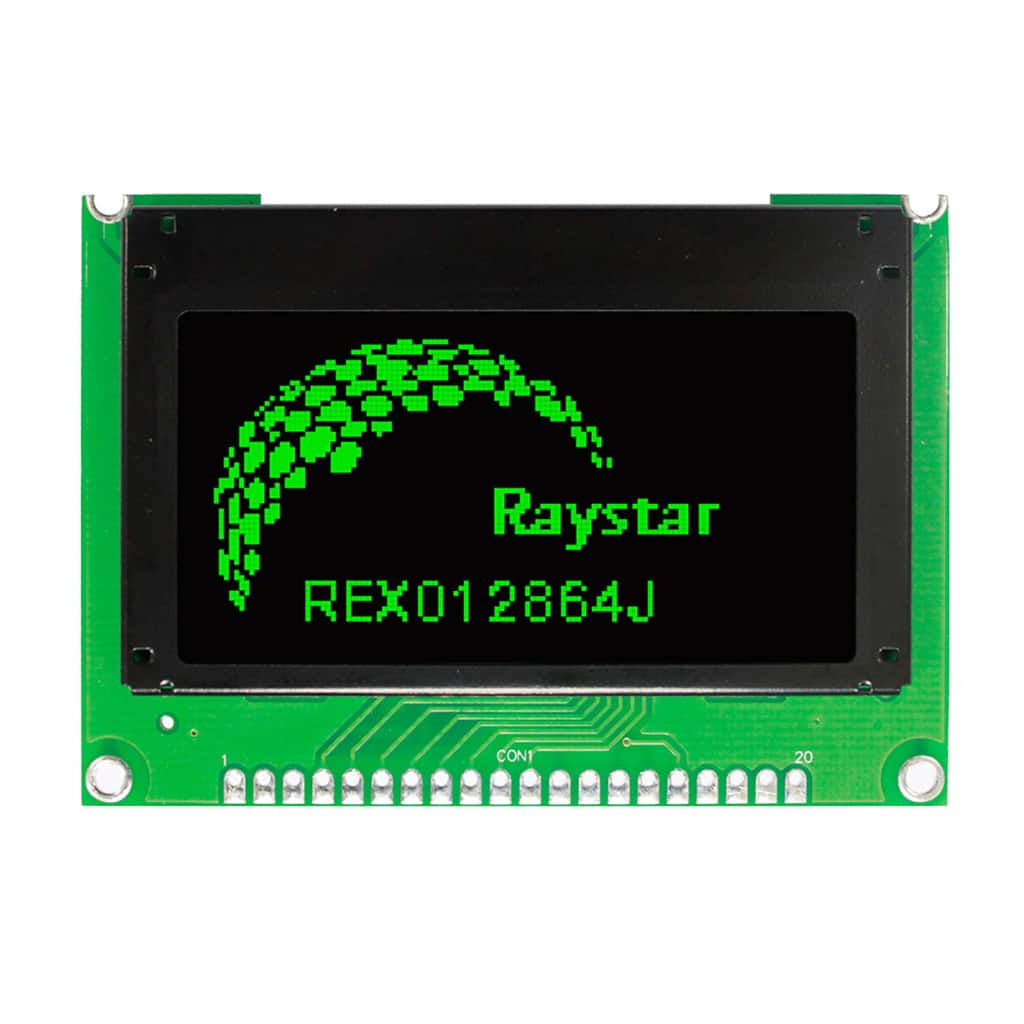

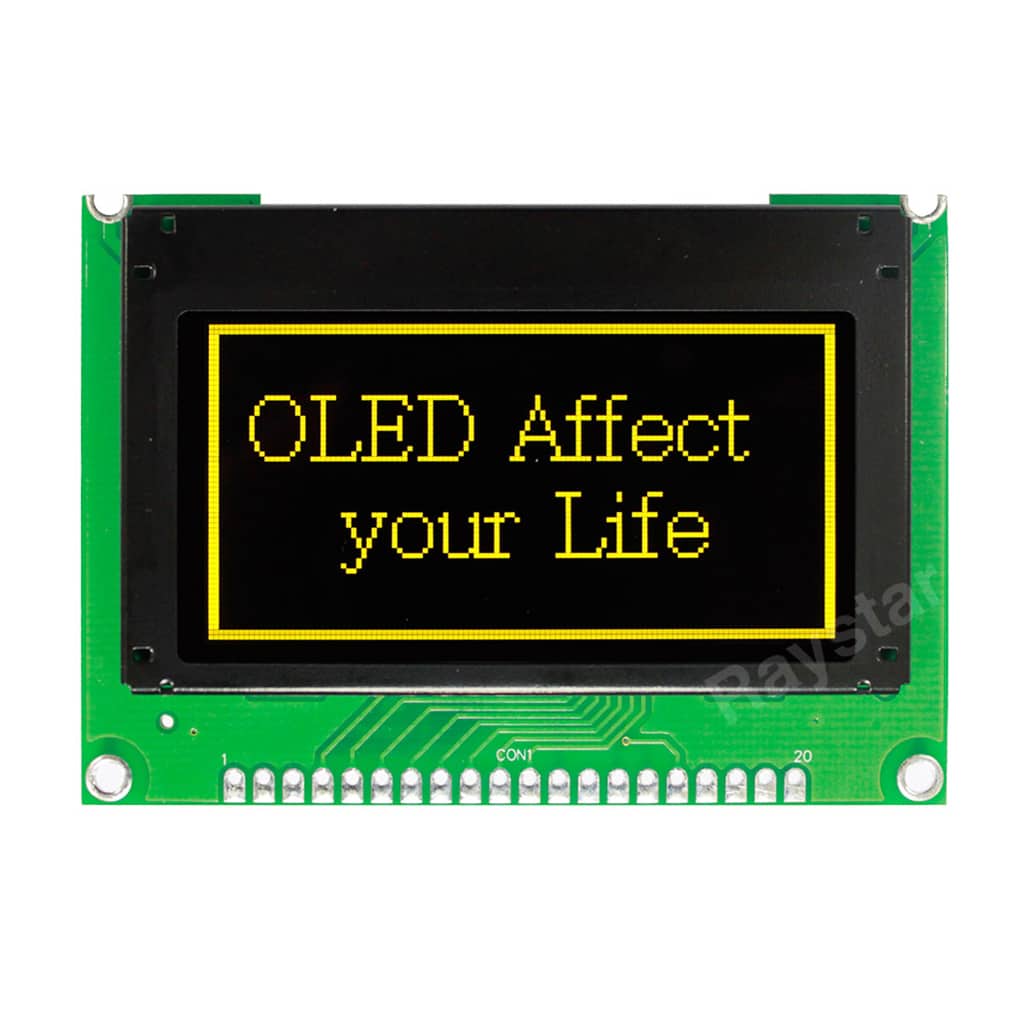

The REX012864J series is a 2.42″ Chip-On-Glass OLED on a PCB,  offering 128×64 pixels within a 57.01mm x 29.49mm viewable area, it comes with an integrated SSD1309ZC IC, and is available in Blue, Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface

Also available with CTP if required









  • 128×64 Graphic OLED
  • Size: 2.42″
  • Available in Blue, Green, White or Yellow
  • Dimensions: 75.0mm x 52.7mm
  • Viewing Area: 57.01mm x 29.49mm
  • Active Area: 55.01mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SSD1309ZC
  • Standard Operating Temperature of -40°C to +80°C
