REX012864L-ZIF series 128×64 COG micro-OLED 34.5mm x 23.0mm (1.28″)

SKU: REX012864L-ZIF Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 34.5 × 23.0 mm
Pixels

128×64
Interface

6800, 8080, I2C, SPI
Construction

COG

Product Description

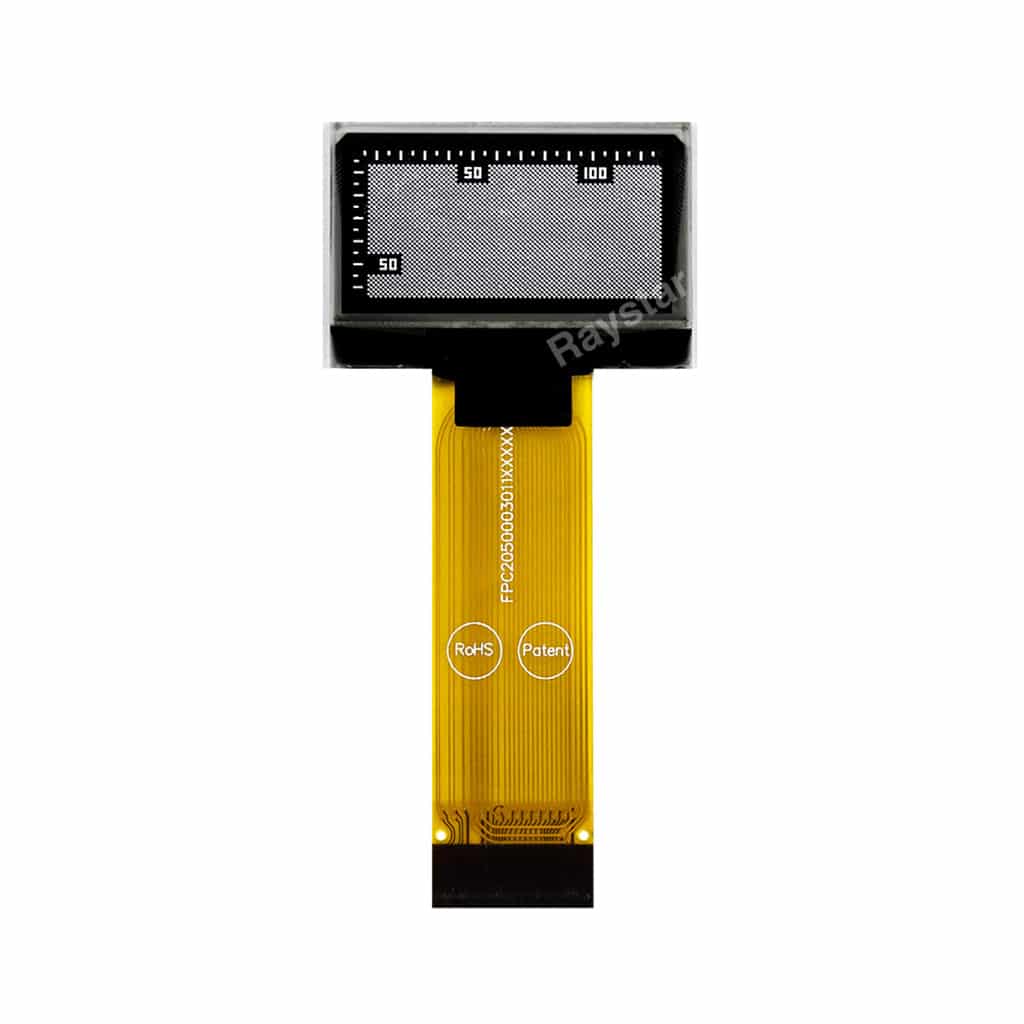

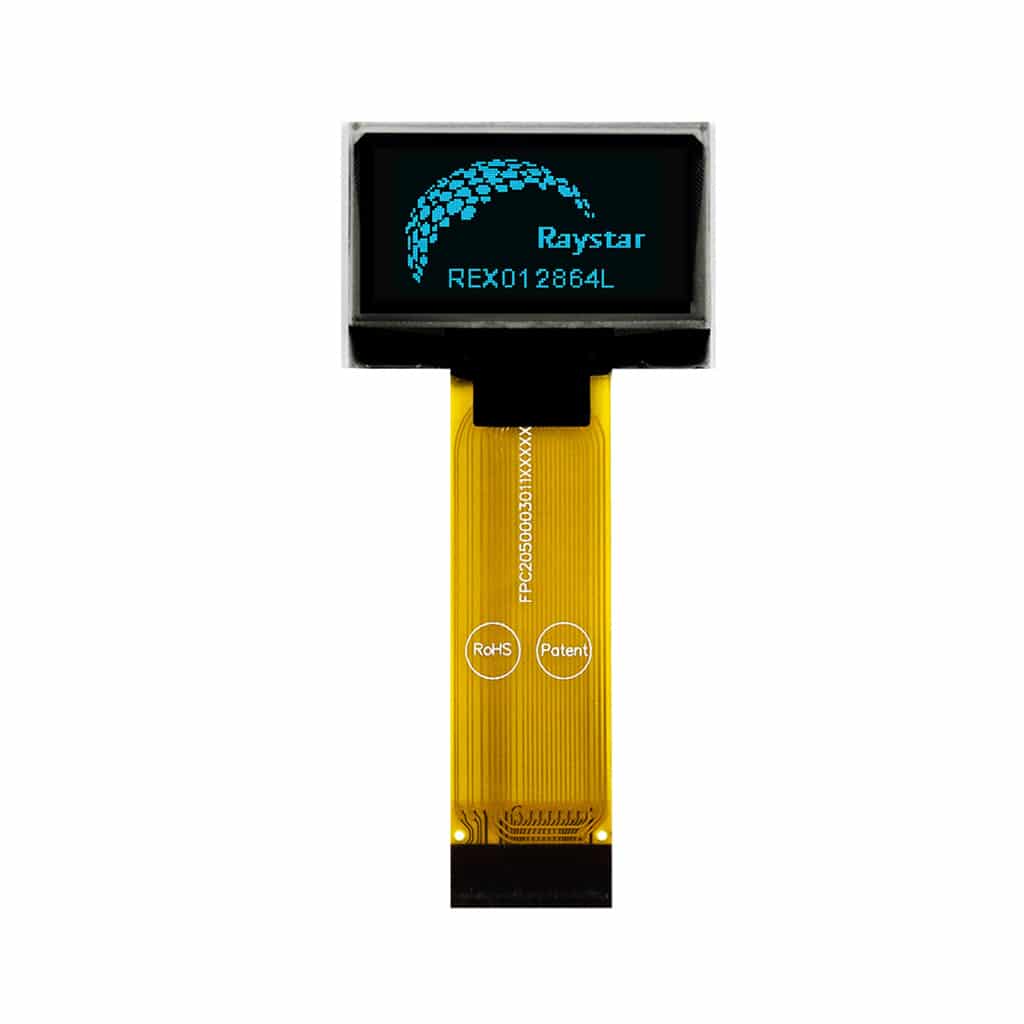

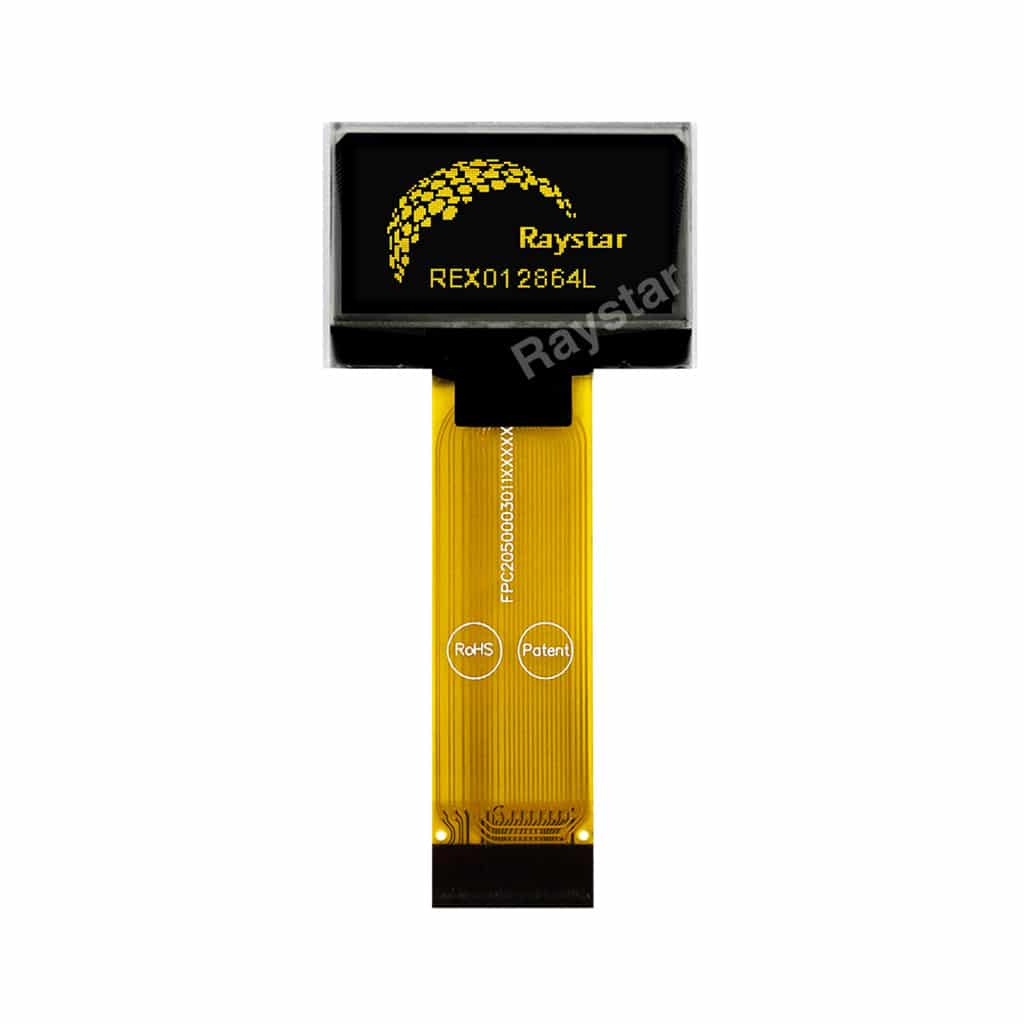

The REX012864L-ZIF series is a 1.28″ Chip-On-Glass OLED  offering 128×64 pixels within a 31.32mm x 15.62mm viewable area, it comes with an integrated SH1106G IC, and is available in Blue, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface.

This device has a ZIF friendly FPC, we can offer a “solder straight on” or hotbar solder version, which is our REX012864L-Hotbar series







  • 128×64 Graphic OLED
  • Size: 1.28″
  • Available in Blue, White or Yellow
  • Dimensions: 34.5mm x 23.0mm
  • Viewing Area: 31.32mm x 15.62mm
  • Active Area: 29.42mm x 14.2mm
  • Dot Size: 0.205mm x 0.197mm
  • Dot Pitch: 0.23mm x 0.222mm
  • FPC Length: 50.0mm
  • 6800, 8080, I2C or SPI Interface
  • Power Supply: 3V
  • IC: SH1106G
  • Standard Operating Temperature of -40°C to +80°C
