REX012864Y series 128×64 COG OLED 45.24mm x 29.14mm (1.54″)
Product specs
| Dimensions | 45.24 × 29.14 mm |
|---|---|
| Pixels | 128×64 |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG |
Product Description
The REX012864Y series is a 1.54″ Chip-On-Glass OLED offering 128×64 pixels within a 45.24mm x 29.14mm viewable area, it comes with an integrated SSD1309 IC, and is available in Green, White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface
- 128×64 Graphic OLED
- Size: 1.54″

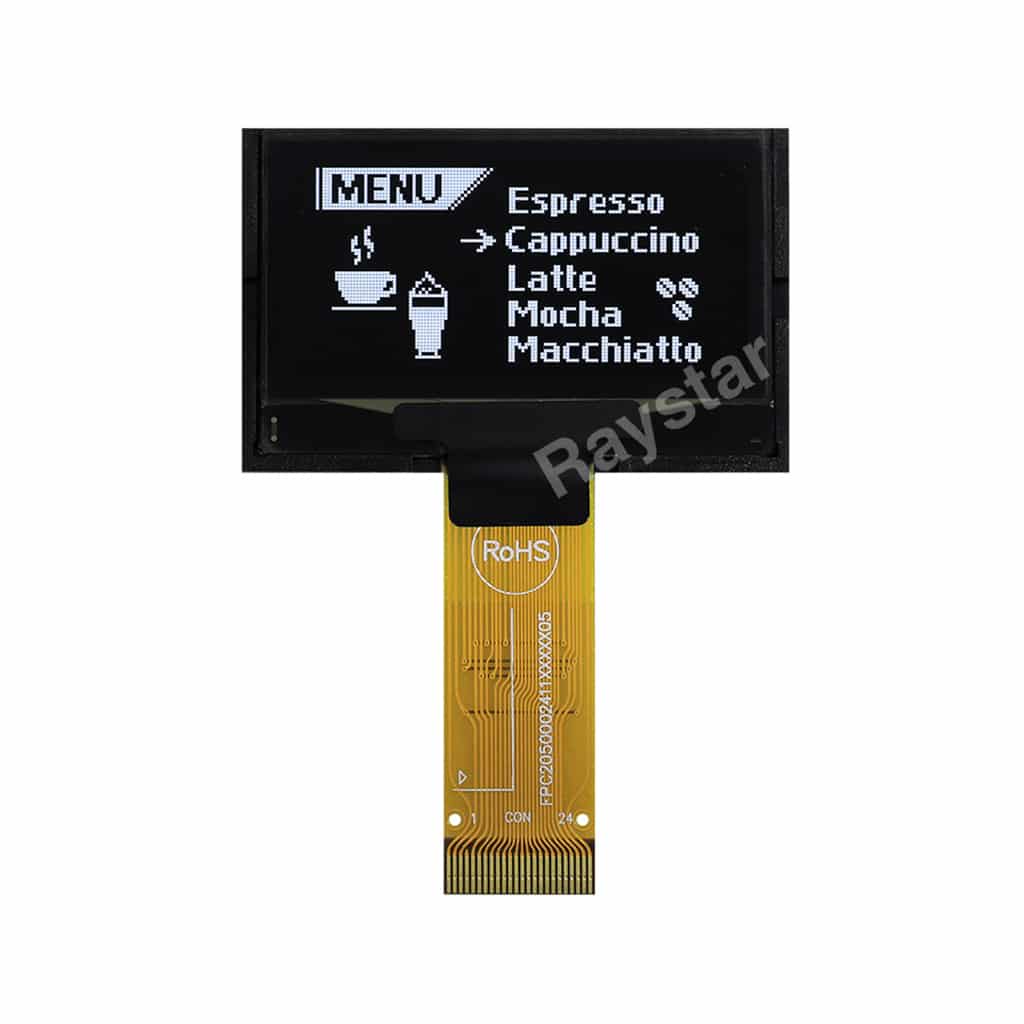

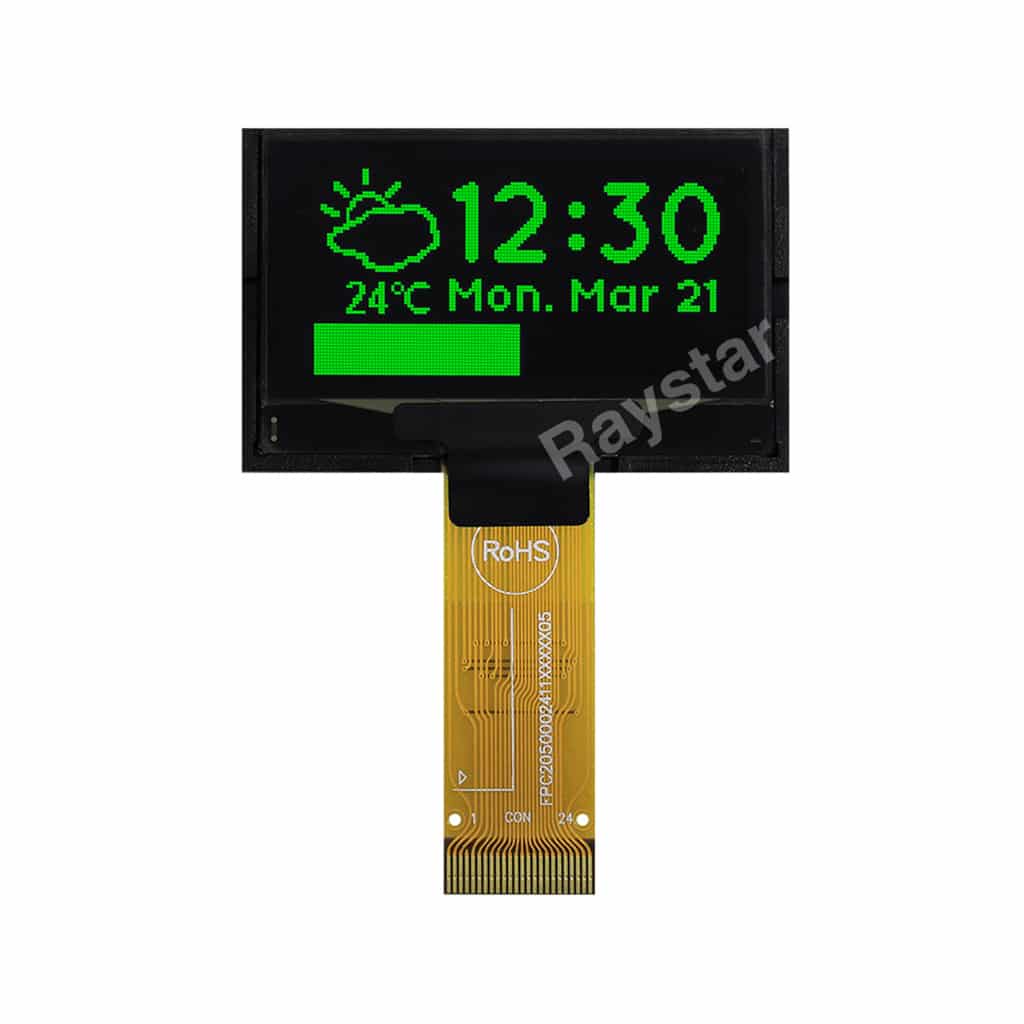

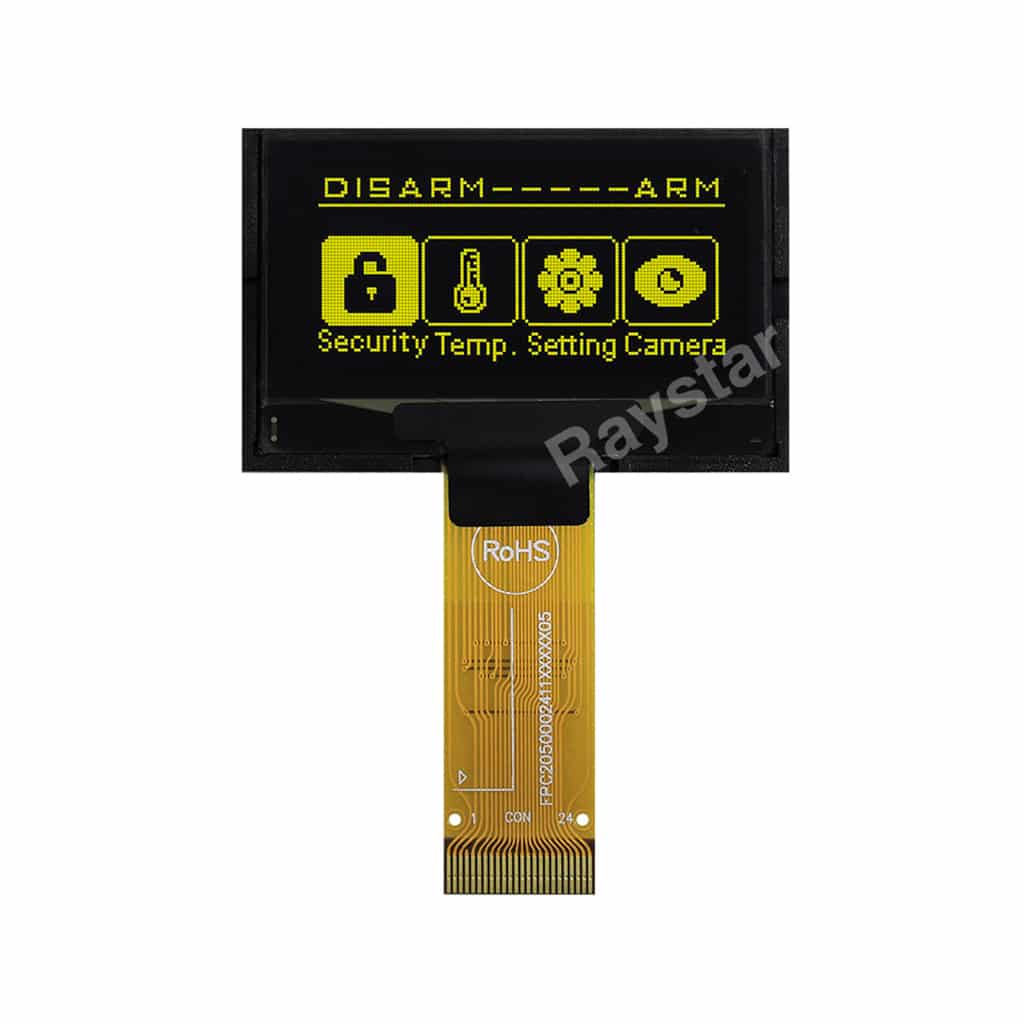

- Available in Green, White or Yellow
- Dimensions: 45.24mm x 29.14mm
- Viewing Area: 37.05mm x 19.51mm
- Active Area: 35.05mm x 17.51mm
- Dot Size: 0.249mm x 0.249mm
- Dot Pitch: 0.274mm x 0.274mm
- 6800, 8080, I2C or SPI Interface
- Power Supply: 3V
- IC: SSD1309
- Standard Operating Temperature of -40°C to +80°C
