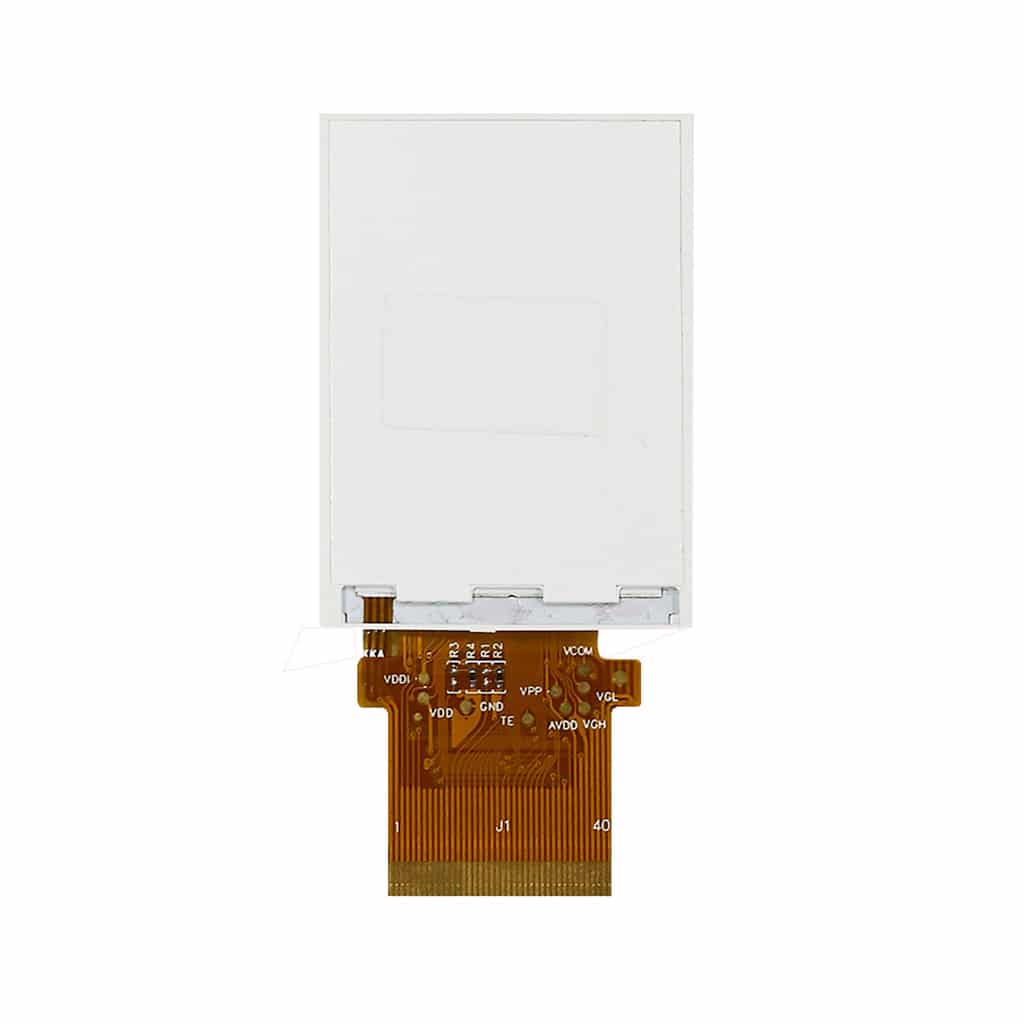

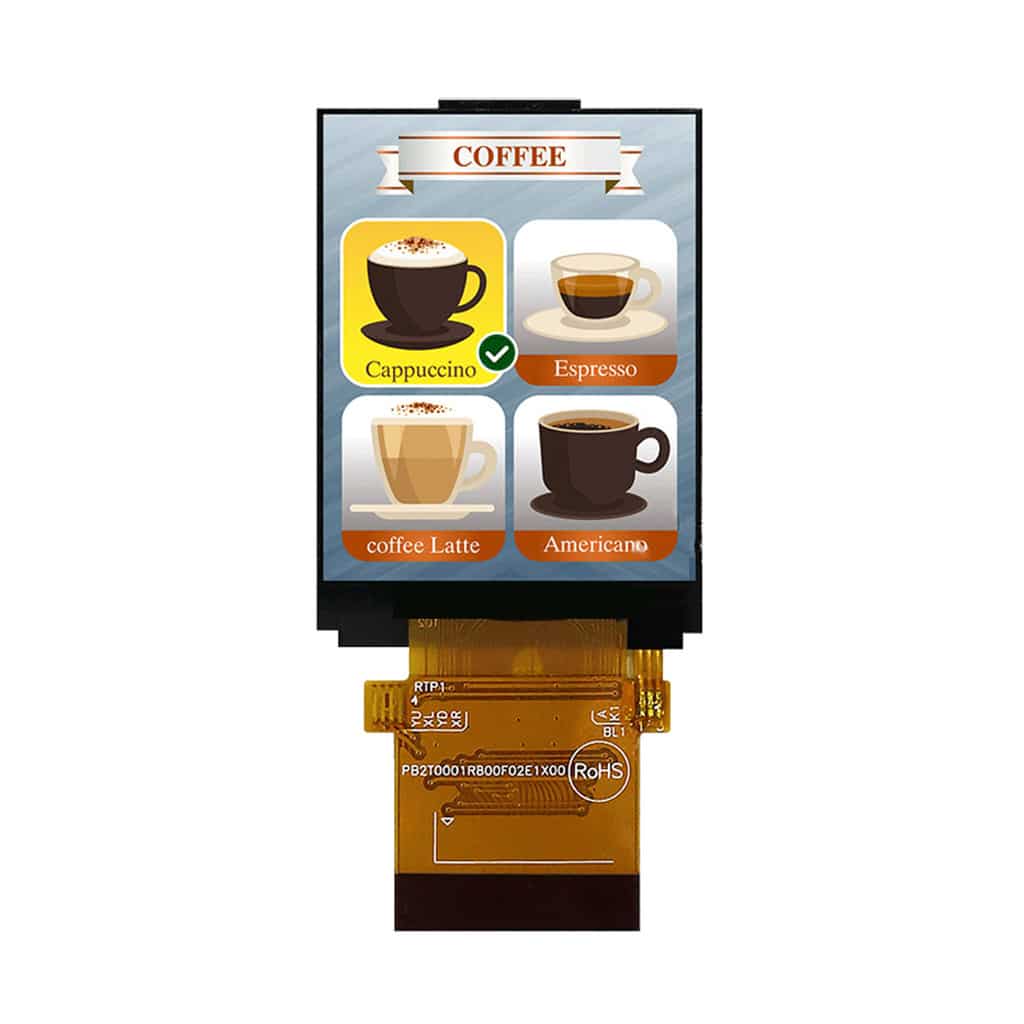

RFA180F-ALW-DNN 1.77″ TFT Display Module 128×160
Product specs
| Dimensions | 34.0 × 45.83 mm |
|---|---|
| Display Size | 1.77" |
| Pixels | 128×160 |
| Technology | TN |
| Interface | MCU |
Product Description
Easby Electronics are able to offer the RFA180F-ALW-DNN TFT module from Raystar. This display has 128×160 pixels within a viewing area of 31.83mm x 41.42mm and comes with the Sitronix ST7735S IC built in, this device has an MCU interface
As we have several different options for this type of product, please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application
- 1.77″ TFT
- 6 O’clock Viewing Angle
- Overall Dimensions: 34.0mm x 45.83mm
- Viewing Area: 31.83mm x 41.42mm
- Active Area: 28.03mm x 35.04mm
- Built-in Controller: ST7735S
- MCU Interface
- Operating Temperature: -20°C to +70°C
