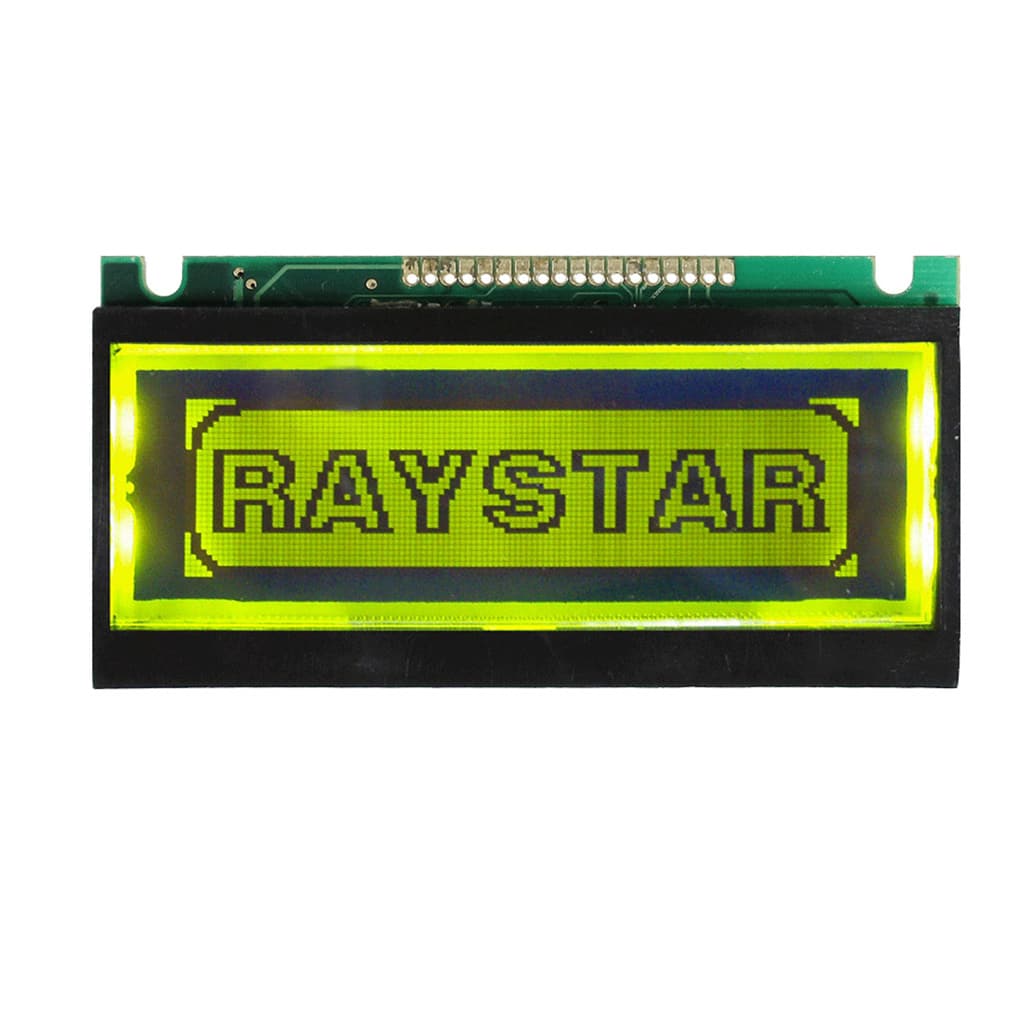

RG12232C series 122×32 Graphic LCD (59.0mm x 29.3mm)

SKU: RG12232C Categories: , , Manufacturer:

Product specs

Dimensions 59 × 29.3 mm
Pixels

122×32

Interface

6800

Technology

Blue-STN, FSTN, STN

Construction

COB

Product Description

The RG12232C series is a Chip-On-Board LCD offering 122×32 pixels, with an active area of 45.72mm x 11.97mm within a viewable area of 52.0mm x 15.0mm

A choice of SBN1661G or ST7920 (ideal for Chinese characters/symbols) is available

The entire series is available in either STN, Blue-STN or FSTN, and in either negative or positive mode



  • 122×32 Chip-On-Board Liquid Crystal Display
  • Dimensions: 59.0mm x 29.3mm
  • Viewing Area: 52.0mm x 15.0mm
  • Available in either STN, Blue-STN or FSTN Technology
  • Available in Reflective, Transflective or Transmissive Mode, with a white LED backlight if required
  • Standard Operating Temperature of -20°C to +70°C
