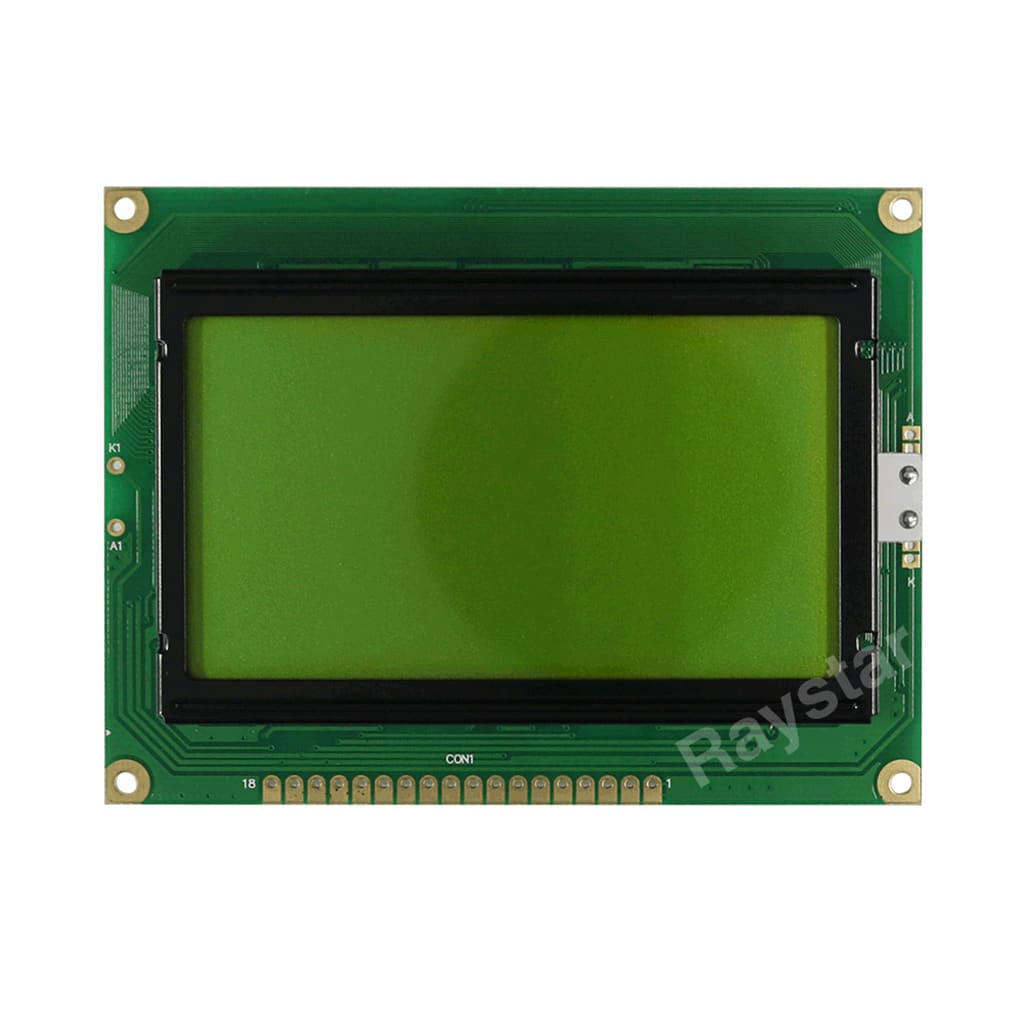

RG12864A2 series 128x64 LCD 93.0mm x 70.0mm

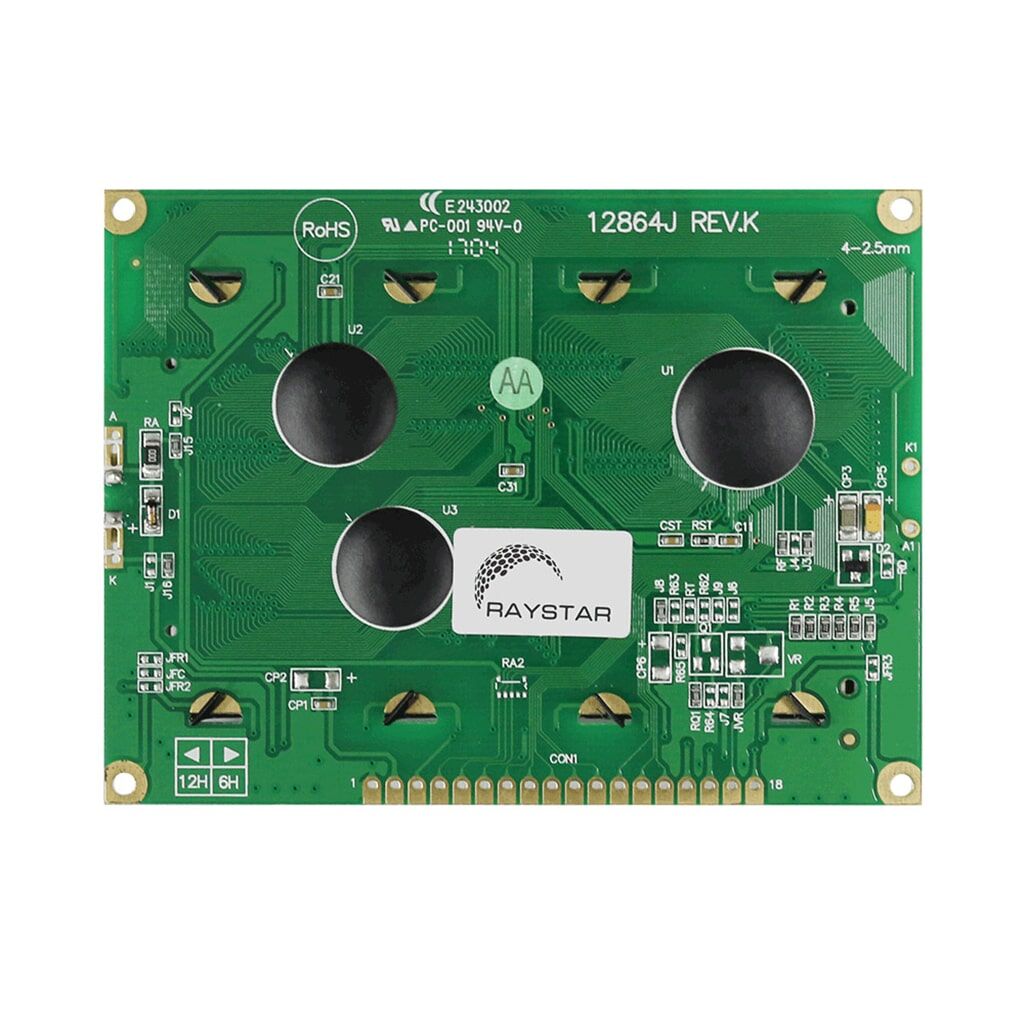

RG12864A2 series 128x64 LCD 93.0mm x 70.0mm - Image 2

RG12864A2 series 128×64 LCD 93.0mm x 70.0mm

SKU: RG12864A2 Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 93 × 70 mm
Pixels

128×64
Interface

6800, SPI
Construction

COB

Product Description

The RG12864A2 series is a standard Chip-On-Board LCD,  offering 128×64 pixels within a 72.0mm x 40.0mm viewable area, with a built in controller (ST7920)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available











  • 128×64 Graphic LCD
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 93.0mm x 70.0mm
  • Viewing Area: 72.0mm x 40.0mm
  • Active Area: 66.52mm x 33.24mm
  • Dot Size: 0.48mm x 0.48mm
  • Dot Pitch: 0.52mm x 0.52mm
  • 6800 & SPI Interface
  • Power Supply: 3.3V
  • On-Board Controller: ST7920
  • Standard Operating Temperature of -20°C to +70°C
