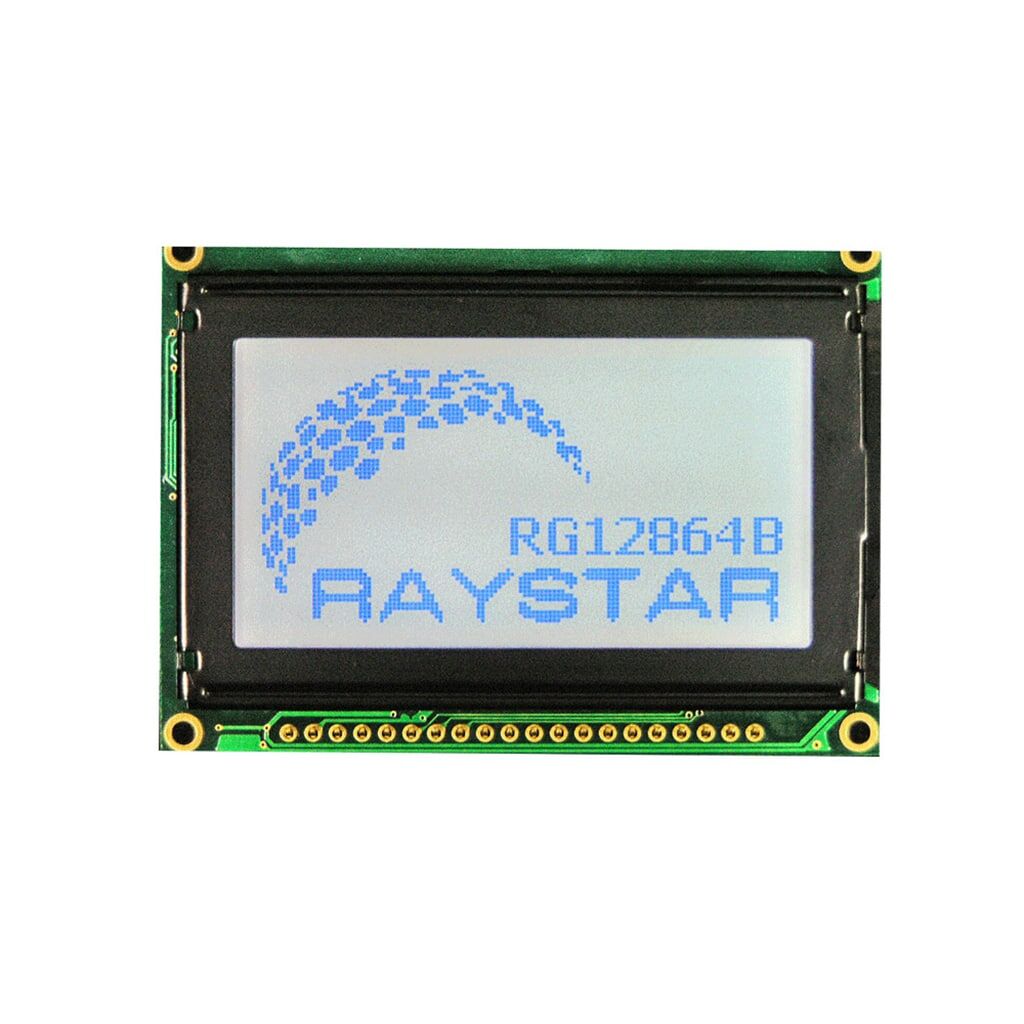

RG12864B series 128×64 LCD 75.0mm x 52.7mm

SKU: RG12864B Categories: , , Manufacturer:

Product specs

Dimensions 75.0 × 52.7 mm






Product Description

The RG12864B series is a standard Chip-On-Board LCD,  offering 128×64 pixels within a 58.8mm x 52.7mm viewable area, with a built in controller (NT7107, NT7108 or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available

This device also has negative voltage “built in”


Also available as the following options:

RG12864B2: Chinese built-in
RG12864B1: 3.3V option





  • 128×64 Graphic LCD
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 75.0mm x 52.7mm
  • Viewing Area: 58.8mm x 31.4mm
  • Active Area: 55.01mm x 27.49mm
  • Dot Size: 0.40mm x 0.40mm
  • Dot Pitch: 0.43mm x 0.43mm
  • 6800 Interface
  • Power Supply: 5V
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
