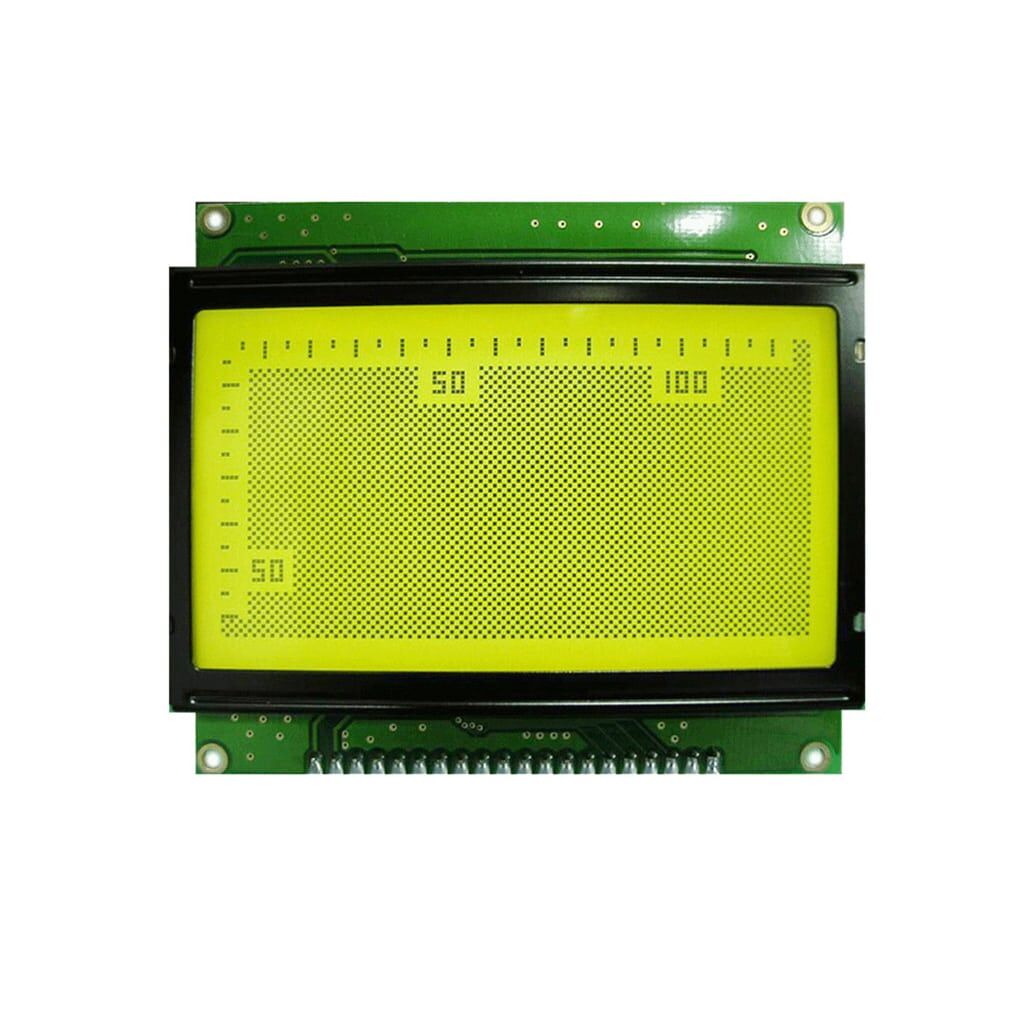

RG12864D series 128x64 LCD 80.0mm x 70.0mm

RG12864D series 128×64 LCD 80.0mm x 70.0mm

SKU: RG12864D Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 80.0 × 70.0 mm
Pixels

128×64
Interface

6800
Construction

COB

Product Description

The RG12864D series is a standard Chip-On-Board LCD,  offering 128×64 pixels within a 72.0mm x 40.0mm viewable area, with a built in controller NT7107/NT7108 (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available

This device also has negative voltage “built in”









  • 128×64 Graphic LCD
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 80.0mm x 70.0mm
  • Viewing Area: 72.0mm x 40.0mm
  • Active Area: 66.52mm x 33.24mm
  • Dot Size: 0.48mm x 0.48mm
  • Dot Pitch: 0.52mm x 0.52mm
  • 6800 Interface
  • Power Supply: 5V
  • On-Board Controller: NT7107/NT7108 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
