RG160160A series 160×160 LCD 89.2mm x 85.0mm

SKU: RG160160A Categories: , , Manufacturer:

Product specs

Dimensions 89.2 × 85.0 mm
Pixels

160×160

Construction

COB

Product Description

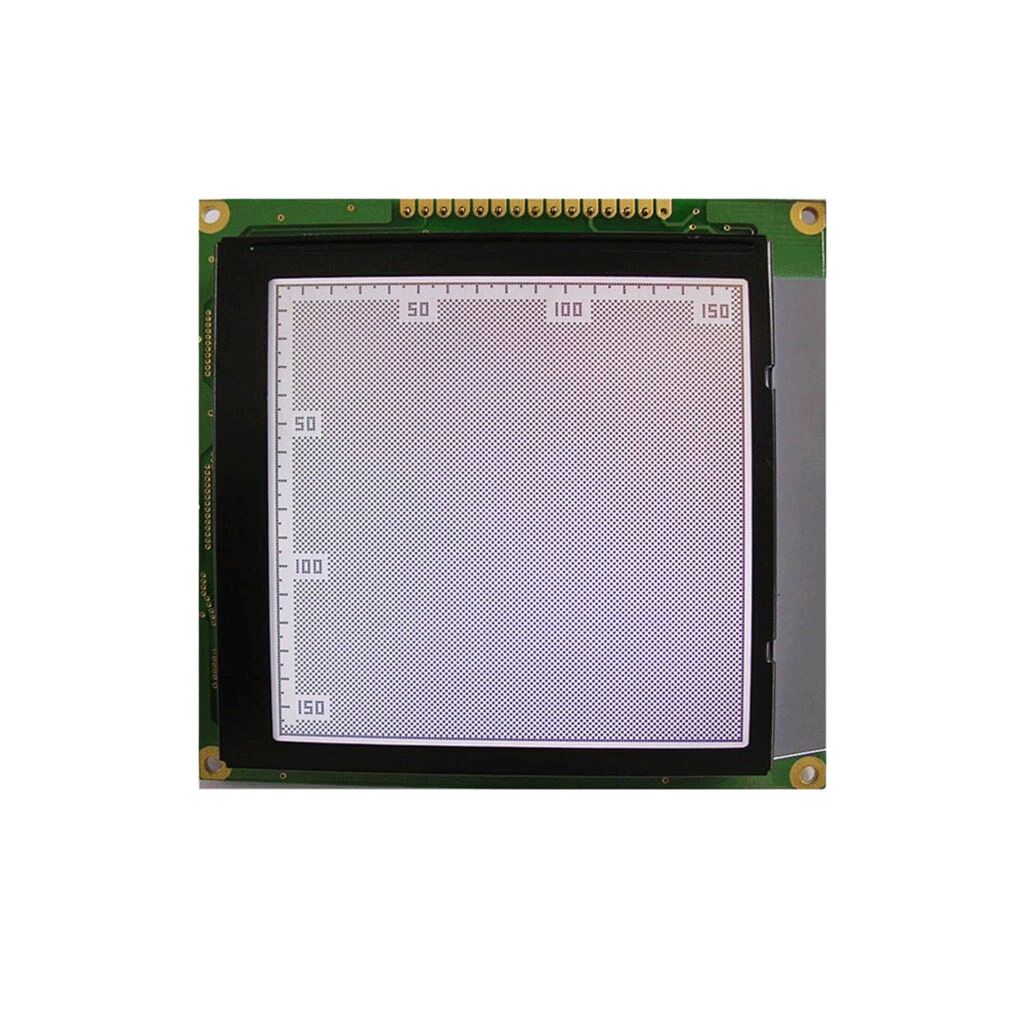

The RG160160A series is a standard Chip-On-Board LCD,  offering 160×160 pixels within a 62.0mm x 62.0mm viewable area. This module has no on-board controller

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.













  • 160×160 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 89.2mm x 85.0mm
  • Viewing Area: 62.0mm x 62.0mm
  • Active Area: 60.76mm x 60.76mm
  • Dot Size: 0.36mm x 0.36mm
  • Dot Pitch: 0.38mm x 0.38mm
  • Power Supply: 5V
  • On-Board Controller: None
  • Standard Operating Temperature of -20°C to +70°C
