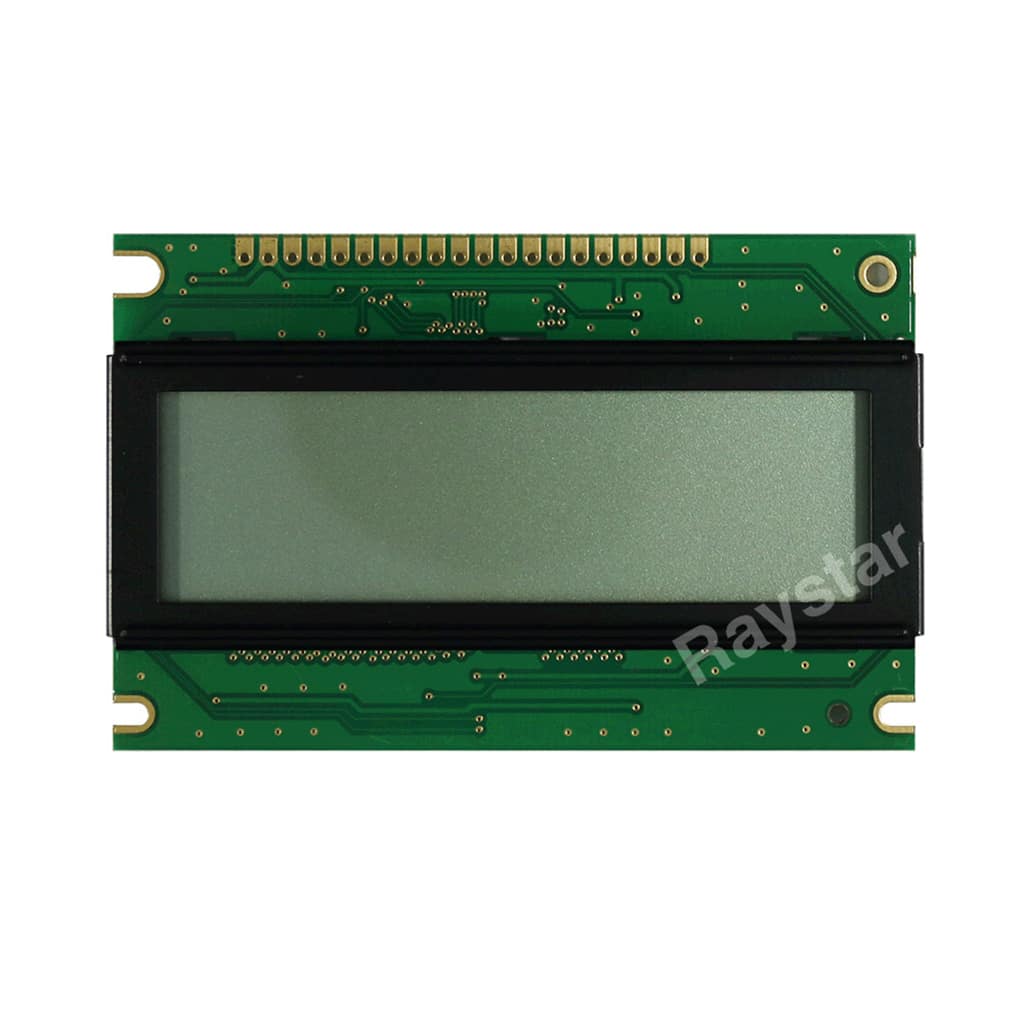

RG16032A series 160×32 LCD 85.2mm x 55.0mm

SKU: RG16032A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 85.2 × 55 mm
Pixels

160×32
Interface

6800, 8080
Construction

COB

Product Description

The RG16032A series is a standard Chip-On-Board LCD,  offering 160×32 pixels within a 74.0mm x 22.0mm viewable area, with a built in SBN1661G controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.













  • 160×32 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 85.2mm x 55.0mm
  • Viewing Area: 74.2mm x 22.0mm
  • Active Area: 70.36mm x 19.47mm
  • Dot Size: 0.40mm x 0.56mm
  • Dot Pitch: 0.44mm x 0.61mm
  • 6800 & 8080 Interface
  • On-Board Controller: Avant SBN1661G (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
