RG16080B1 series 160×80 LCD 100.0mm x 54.0mm

SKU: RG16080B1 Categories: , , Manufacturer:

Product specs

Dimensions 100.0 × 54.0 mm






Product Description

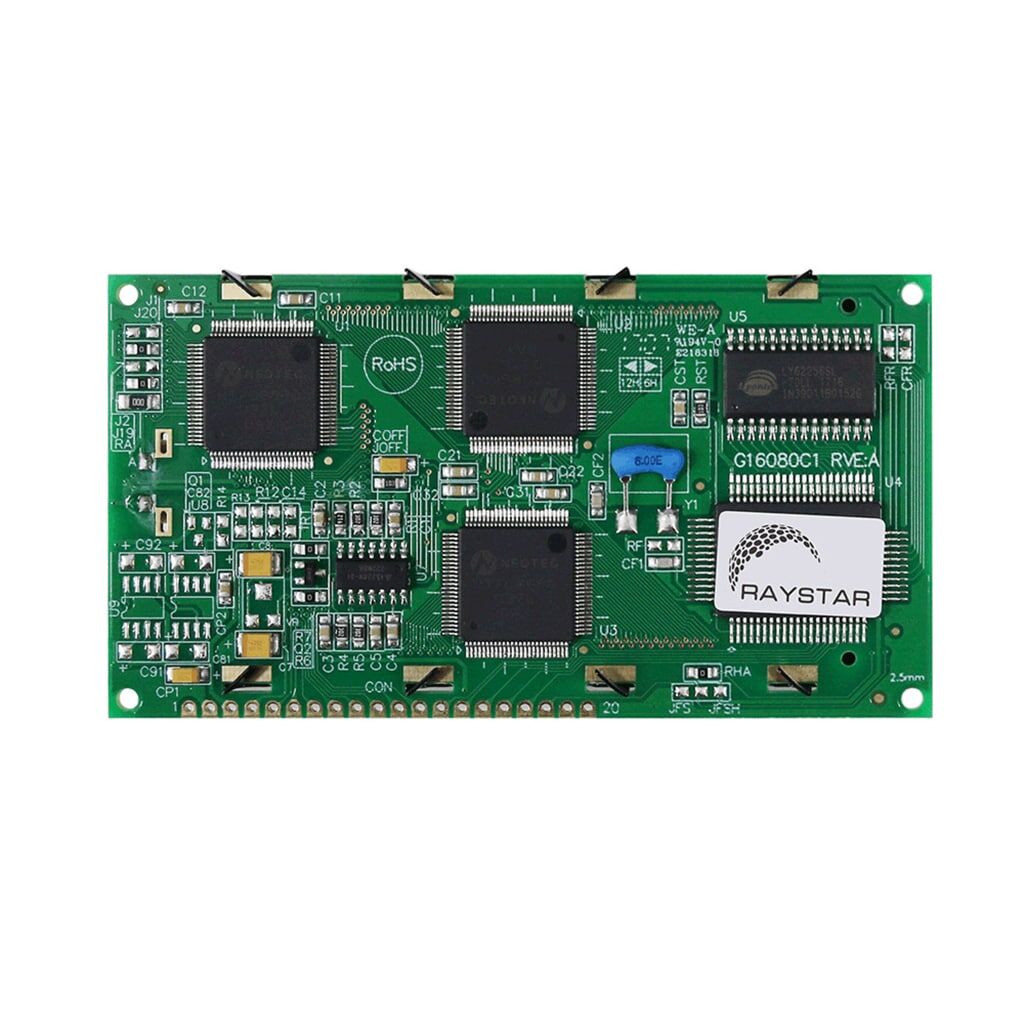

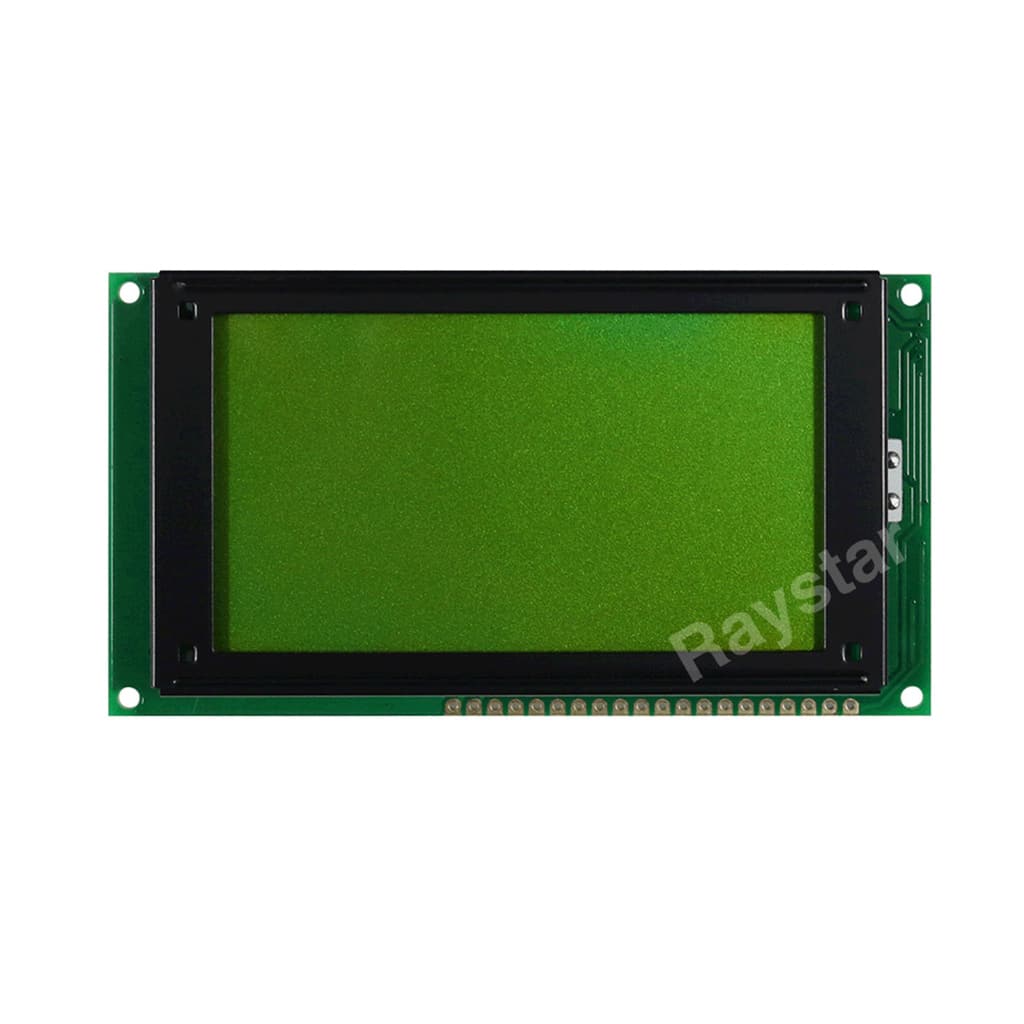

The RG16080B1 series is a standard Chip-On-Board LCD,  offering 160×80 pixels within a 72.0mm x 40.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.







  • 160×80 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 100.0mm x 54.0mm
  • Viewing Area: 72.0mm x 40.0mm
  • Active Area: 67.17mm x 33.57mm
  • Dot Size: 0.39mm x 0.39mm
  • Dot Pitch: 0.42mm x 0.42mm
  • 8080 Interface
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
