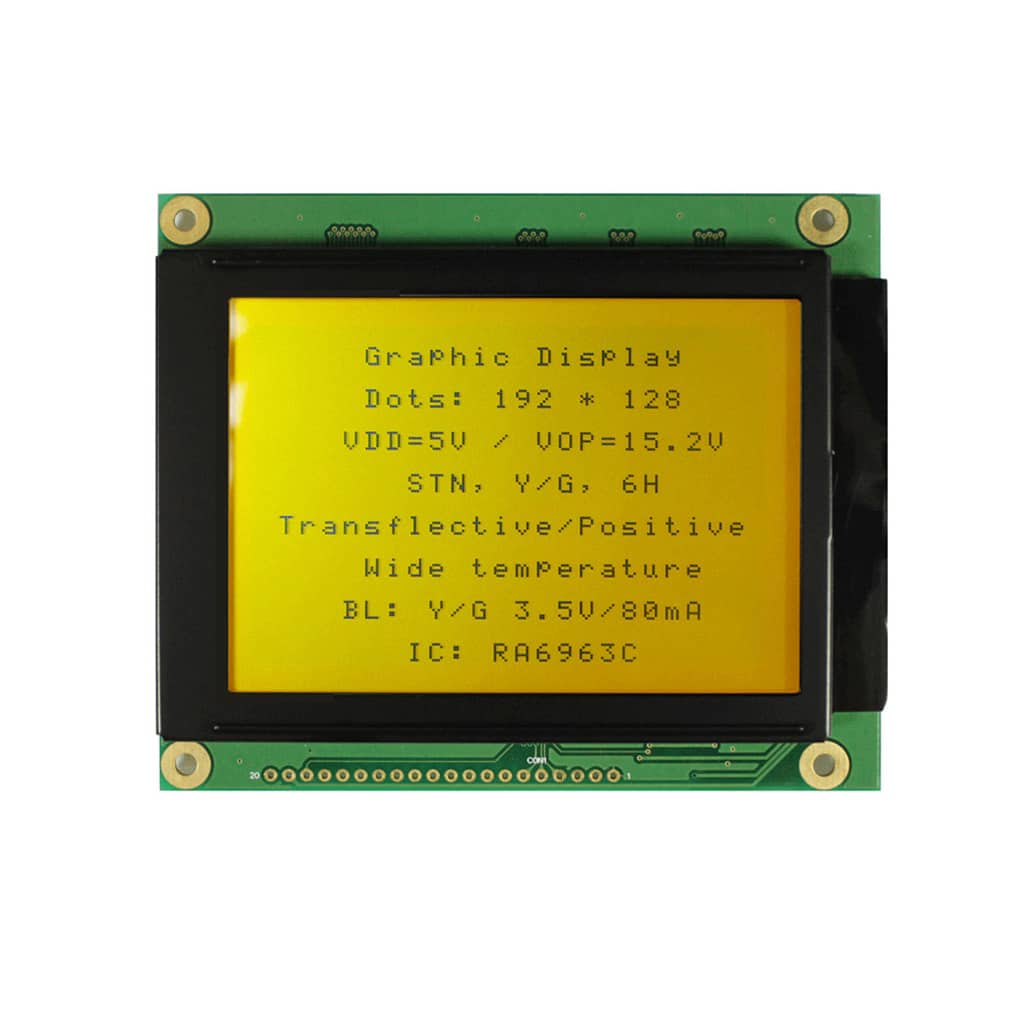

RG192128C series 192x128 LCD 102.3mm x 96.0mm

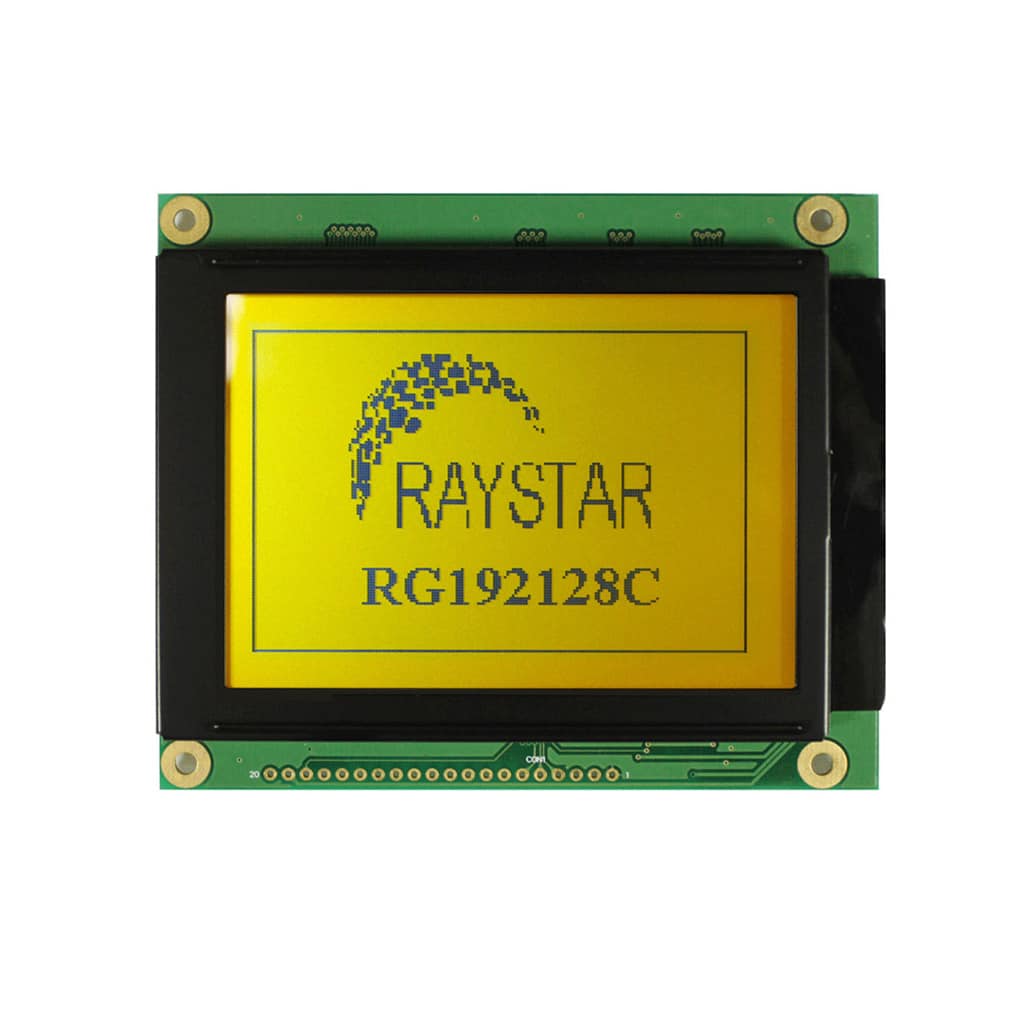

RG192128C series 192x128 LCD 102.3mm x 96.0mm - Image 2

RG192128C series 192×128 LCD 102.3mm x 96.0mm

SKU: RG192128C Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 102.3 × 86.0 mm
Pixels

192×128
Interface

8080
Construction

COB

Product Description

The RG192128C series is a standard Chip-On-Board LCD,  offering 192×128 pixels within a 78.5mm x 55.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.













  • 192×128 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 102.3mm x 86.0mm
  • Viewing Area: 78.5mm x 55.0mm
  • Active Area: 71.02mm x 47.34mm
  • Dot Size: 0.35mm x 0.35mm
  • Dot Pitch: 0.37mm x 0.37mm
  • 8080 Interface
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
