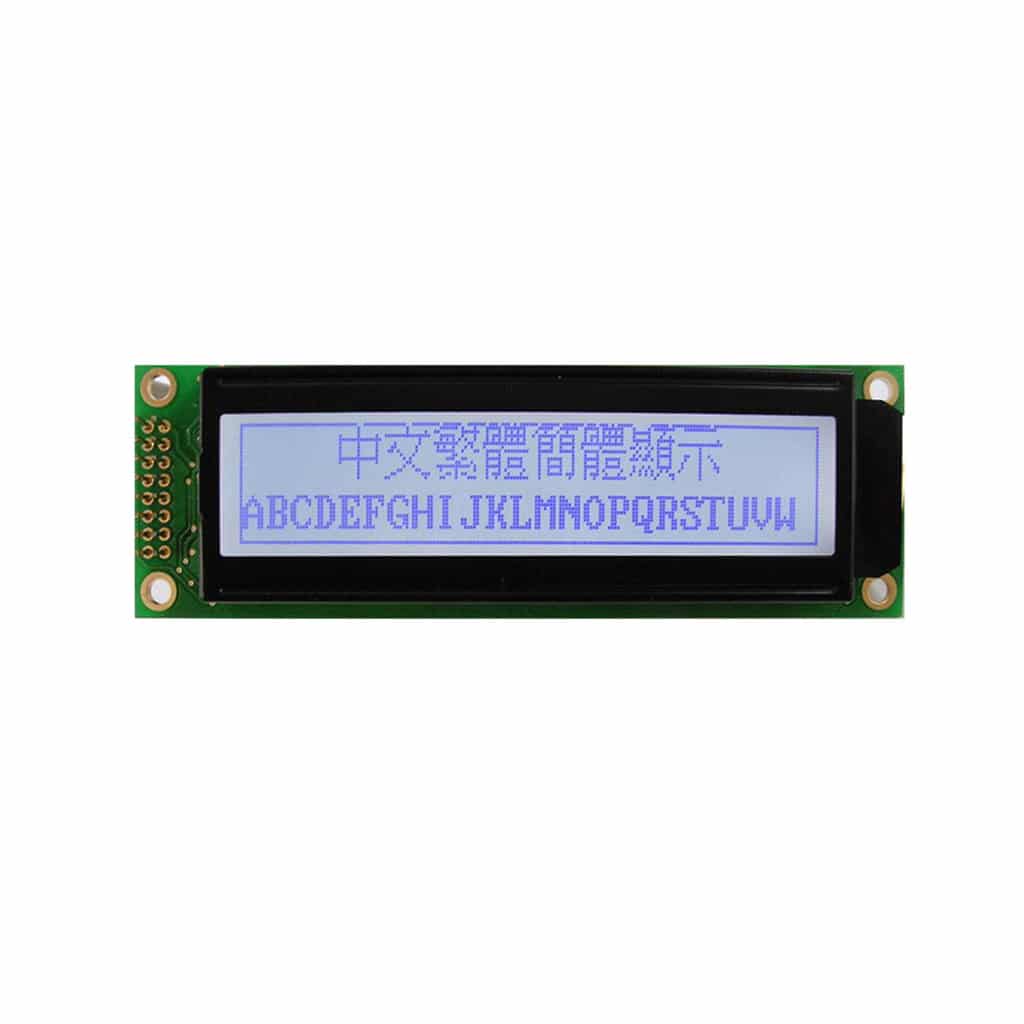

RG19232A series 192×32 LCD 116.0mm x 37.0mm

SKU: RG19232A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 116.0 × 37.0 mm
Pixels

192×32
Interface

6800, SPI
Construction

COB

Product Description

The RG19232A series is a standard Chip-On-Board LCD,  offering 192×32 pixels within a 85.0mm x 18.6mm viewable area, with a built in ST7920 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

This device has the same footprint at the RC2002A character display













  • 192×32 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 116.0mm x 37.0mm
  • Viewing Area: 85.0mm x 18.6mm
  • Active Area: 80.6mm x 15.96mm
  • Dot Size: 0.38mm x 0.46mm
  • Dot Pitch: 0.42mm x 0.50mm
  • 6800 & SPI Interface
  • On-Board Controller: ST7920(or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
