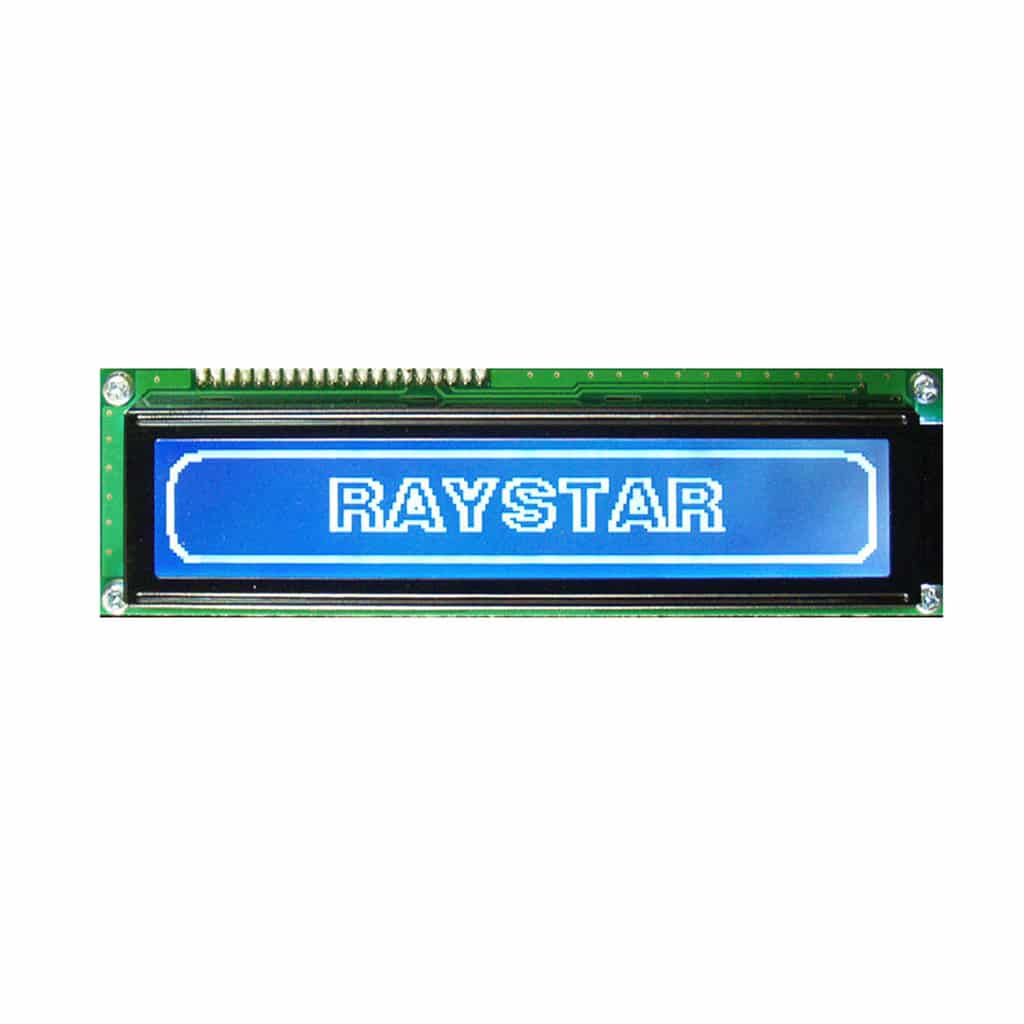

RG20232A series 202×32 LCD 146.0mm x 43.0mm

SKU: RG20232A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 146.0 × 43.0 mm
Pixels

202×32
Interface

6800, 8080
Construction

COB

Product Description

The RG20232A series is a standard Chip-On-Board LCD,  offering 202×32 pixels within a 123.0mm x 23.0mm viewable area, with a built in SBN1661G controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

This display has the same footprint as the RC2002D Character module















  • 202×32 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 146.0mm x 43.0mm
  • Viewing Area: 123.0mm x 23.0mm
  • Active Area: 119.16mm x 18.86mm
  • Dot Size: 0.57mm x 0.57mm
  • Dot Pitch: 0.59mm x 0.59mm
  • 6800 & 8080 Interface
  • On-Board Controller: Avant SBN1661G (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
