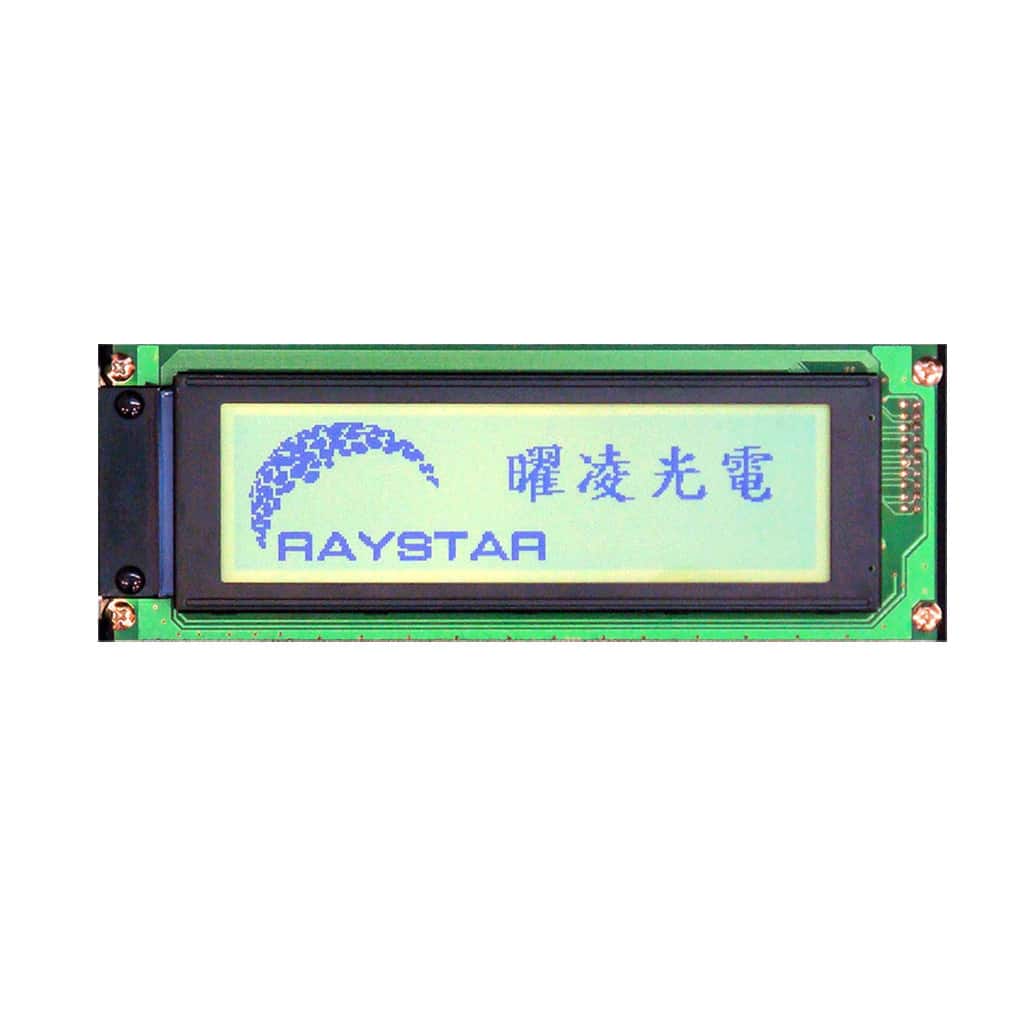

RG24064A series 240×64 LCD 180.0mm x 65.0mm

SKU: RG24064A Categories: , , Manufacturer:

Product specs

Dimensions 180.0 × 65.0 mm






Product Description

The RG24064A series is a standard Chip-On-Board LCD,  offering 240×64 pixels within a 133.0mm x 39.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.









  • 240×64 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 180.0mm x 65.0mm
  • Viewing Area: 133.0mm x 39.0mm
  • Active Area: 127.16mm x 33.88mm
  • Dot Size: 0.49mm x 0.49mm
  • Dot Pitch: 0.53mm x 0.53mm
  • 8080 Interface
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
