RG24064A4 series 240x64 LCD 180.0mm x 65.0mm

RG24064A4 series 240×64 LCD 180.0mm x 65.0mm

SKU: RG24064A4 Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 180.0 × 65.0 mm
Pixels

240×64
Interface

8080
Construction

COB

Product Description

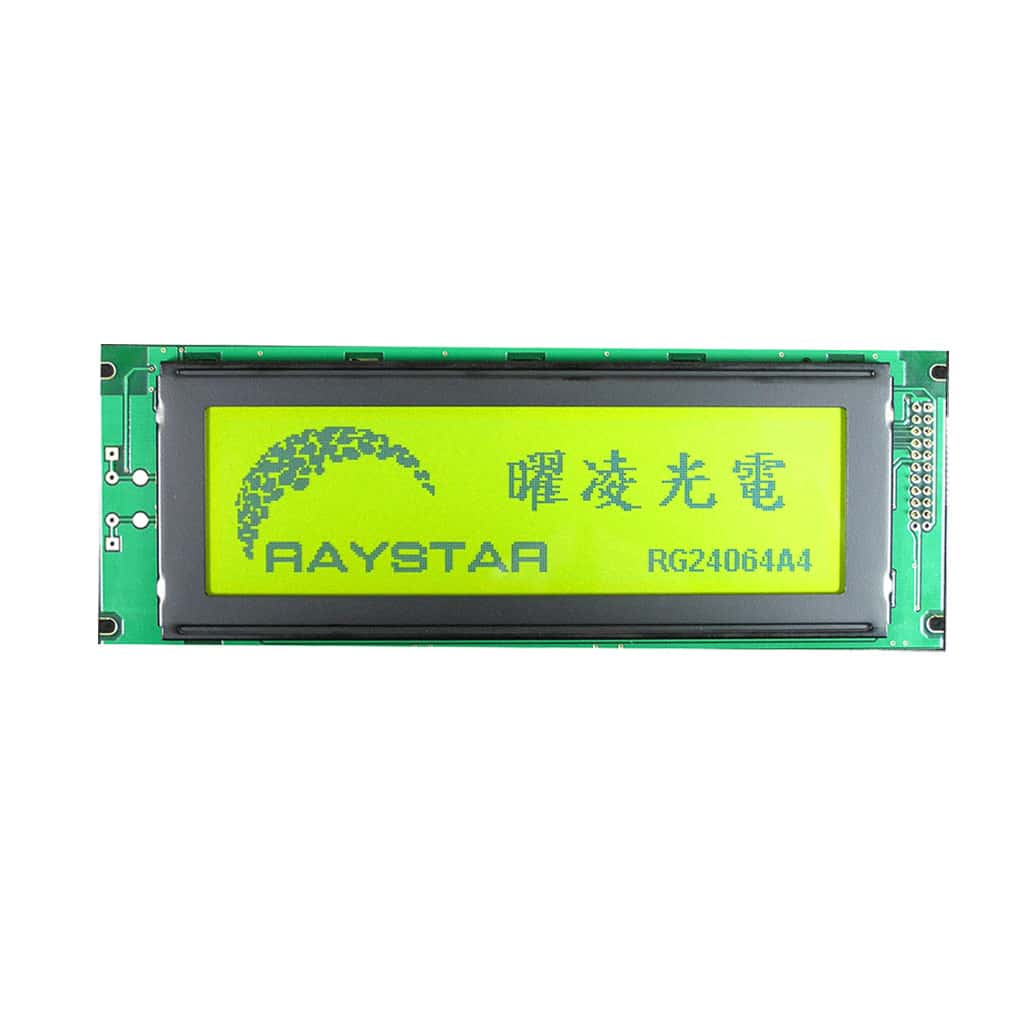

The RG24064A2series is a standard Chip-On-Board LCD,  offering 240×64 pixels within a 132.6mm x 39.0mm viewable area, with a built in RA6963 controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 240×64 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 180.0mm x 65.0mm
  • Viewing Area: 132.69mm x 39.0mm
  • Active Area: 127.15mm x 33.87mm
  • Dot Size: 0.48mm x 0.48mm
  • Dot Pitch: 0.53mm x 0.53mm
  • 8080 Interface
  • On-Board Controller: RA6963 (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
