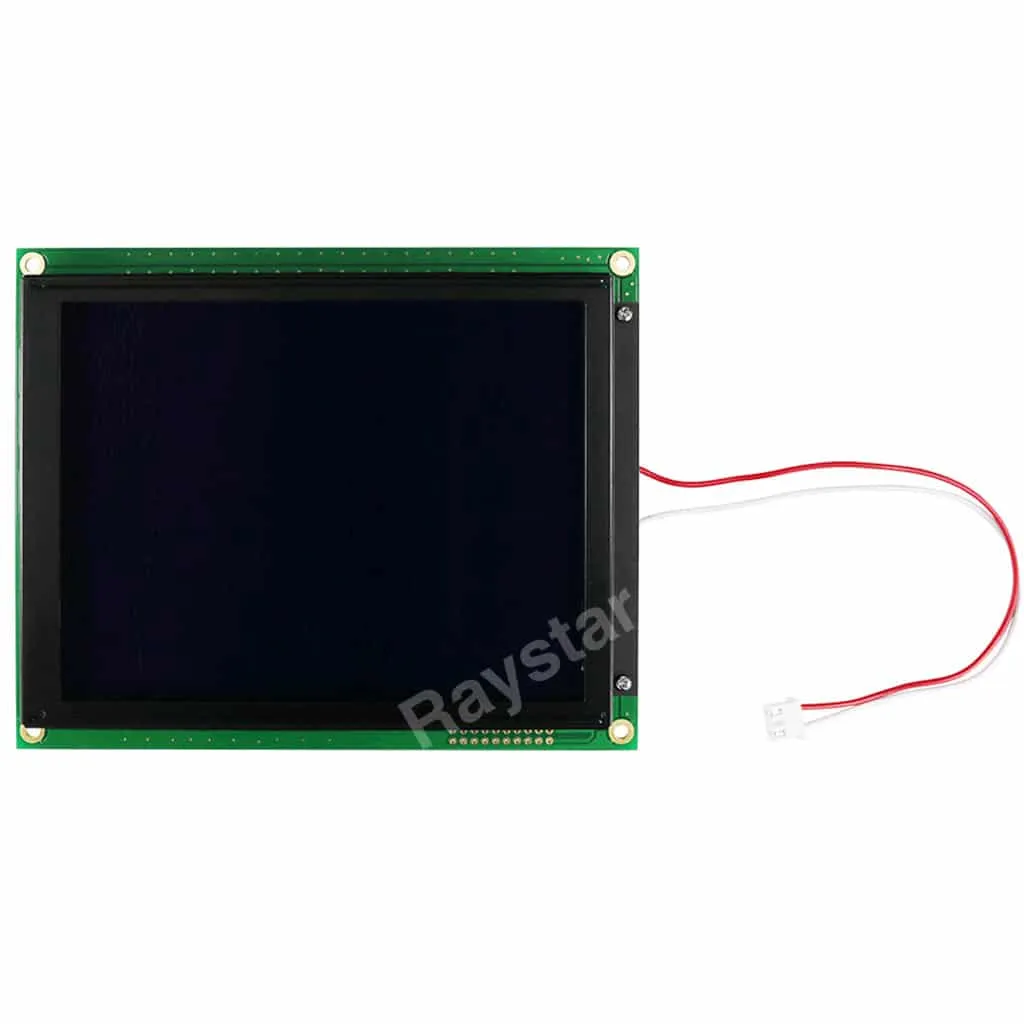

RG320240B1 series 320×240 (QVGA) LCD 148.02mm x 120.2mm (S1D13700)

SKU: RG320240B1 Categories: , , Manufacturer:

Product specs

Dimensions 148.02 × 120.2 mm



6800, 8080



Product Description

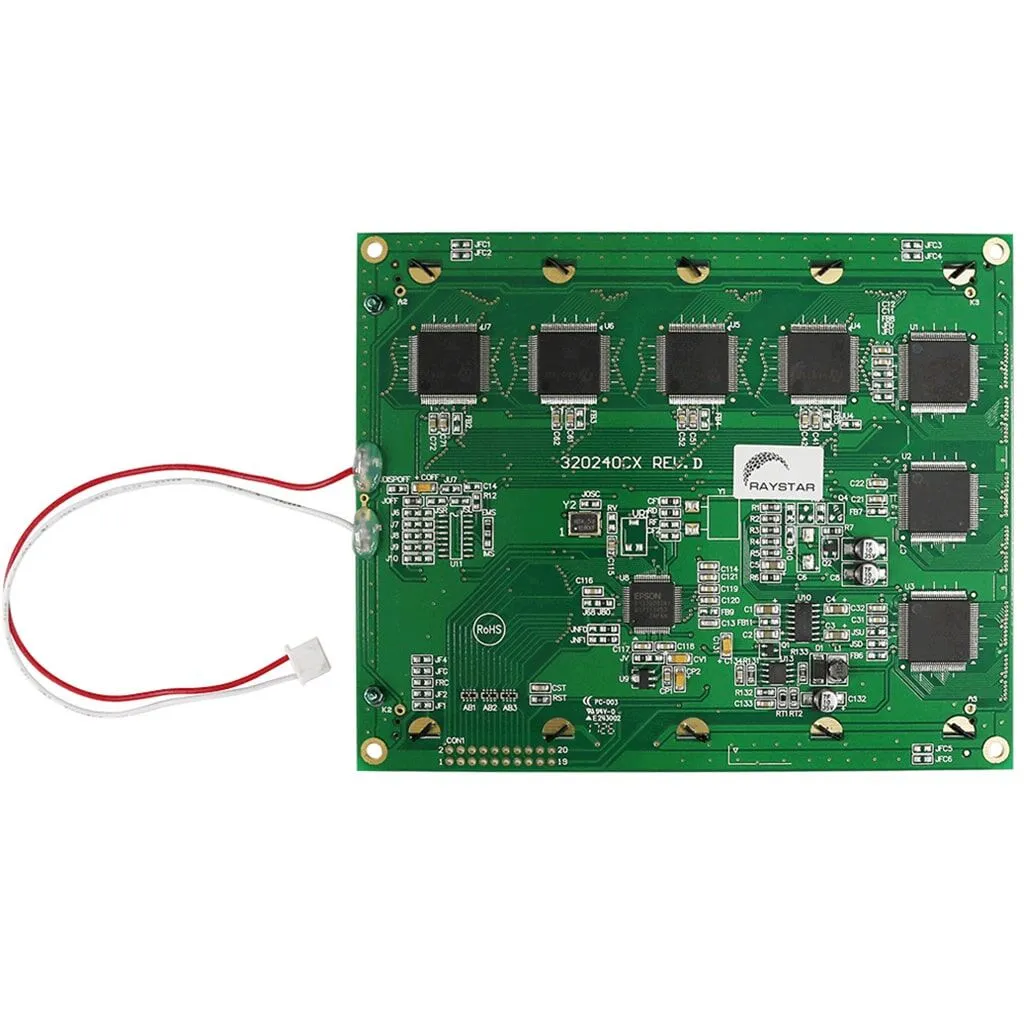

The RG320240B1 series is a standard Chip-On-Board QVGA LCD,  offering 320×240 pixels within a 120.14mm x 92.1mm viewable area, this display has the S1D13700 controller IC on board.

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.









  • 320×240 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 148.02mm x 120.2mm
  • Viewing Area: 120.14mm x 92.1mm
  • Active Area: 115.18mm x 86.38mm
  • Dot Size: 0.34mm x 0.34mm
  • Dot Pitch: 0.36mm x 0.36mm
  • On-Board Controller: S1D13700
  • Interface: 6800 & 8080
  • Standard Operating Temperature of -20°C to +70°C
