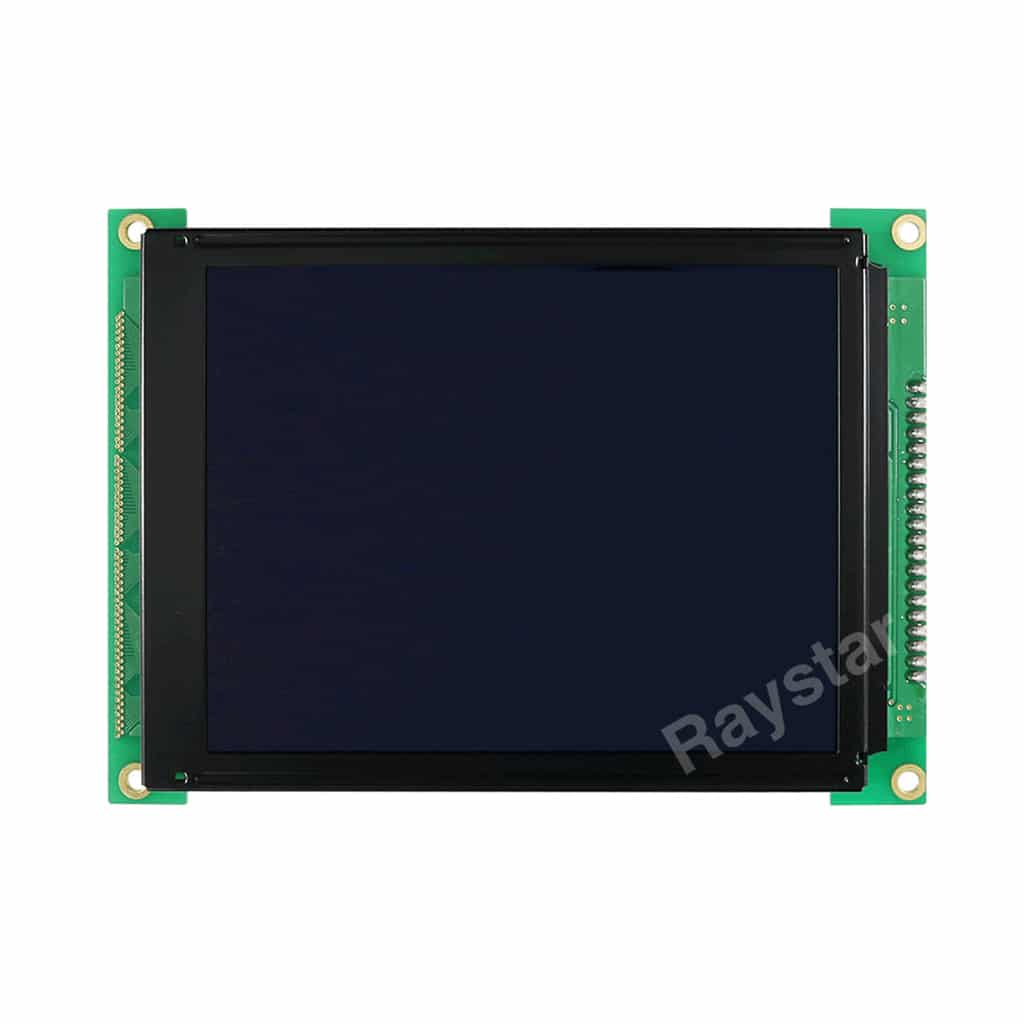

RG320240C4 series 320x240 (QVGA) LCD 139.0mm x 100.0mm (RA8835)

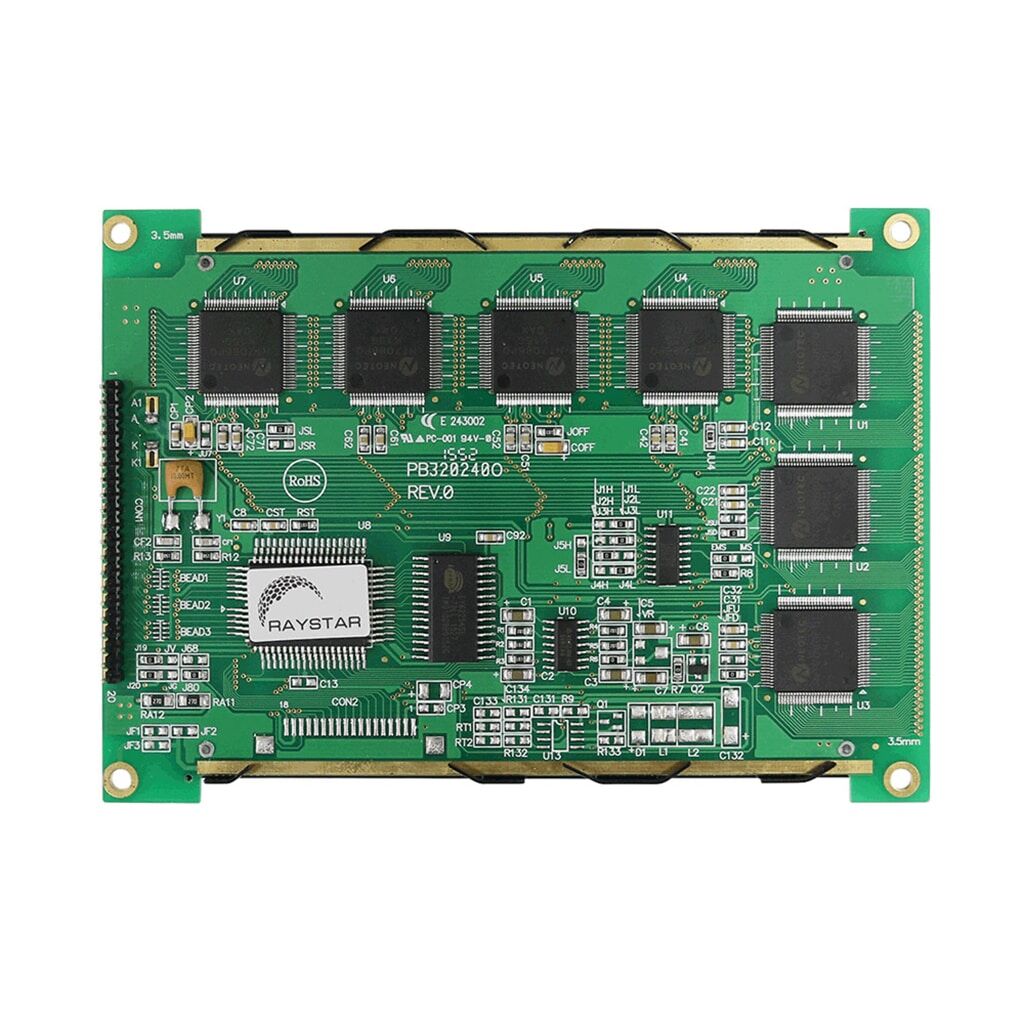

RG320240C4 series 320x240 (QVGA) LCD 139.0mm x 100.0mm (RA8835) - Image 2

RG320240C4 series 320×240 (QVGA) LCD 139.0mm x 100.0mm (RA8835)

SKU: RG320240C4 Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 139.0 × 100.0 mm
Pixels

320×240
Interface

6800, 8080
Construction

COB

Product Description

The RG320240C4 series is a standard Chip-On-Board QVGA LCD,  offering 320×240 pixels within a 104.0mm x 79.3mm viewable area, this display has the RA8835 controller IC on board.

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available.

















  • 320×240 Graphic LCD
  • Chip-On-Board
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 139.0mm x 100.0mm
  • Viewing Area: 104.0mm x 79.3mm
  • Active Area: 95.98mm x 71.98mm
  • Dot Size: 0.27mm x 0.27mm
  • Dot Pitch: 0.30mm x 0.30mm
  • On-Board Controller: RA8835
  • Interface: 6800 & 8080
  • Standard Operating Temperature of -20°C to +70°C
