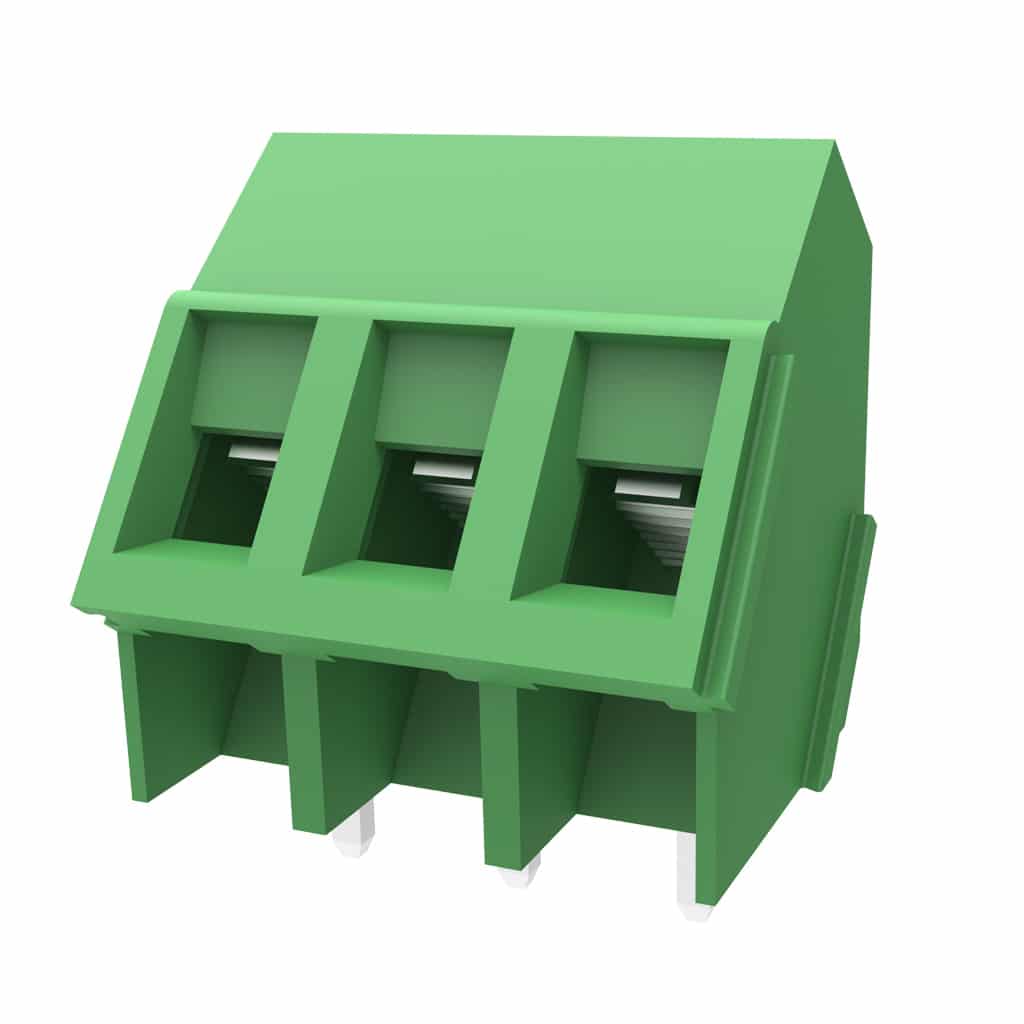

Rising Clamp , 5.0mm Pitch , 45Degree- DG103-5.0-xxP-1400AH
Product specs
| Height | 15.5mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | 45° |
| Poles | 2, 3 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG103-5.0 series is a 45 degree wire entry rising clamp terminal block from Degson. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
DG103 series is both UL (E228872) & VDE (40022134) approved and with the highest V0 flammability rating.
- Pitch 5.0mm
- 45 degree Wire Entry
- 15.5mm High – 13.3mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2.5 slotted
- UL File number E228872 – 12-24 Awg – 20A @ 300v
- VDE File 40022134 – 2.5mm2 – 24A @ 250v
- Interlocking device
- Colour Green as standard
