RJ 6P Socket – DS1133-01 – Series

SKU: DS1133-01- Categories: , , , Manufacturer:

Product specs

Type

6P6C

Orientation

Right Angle

Product Description

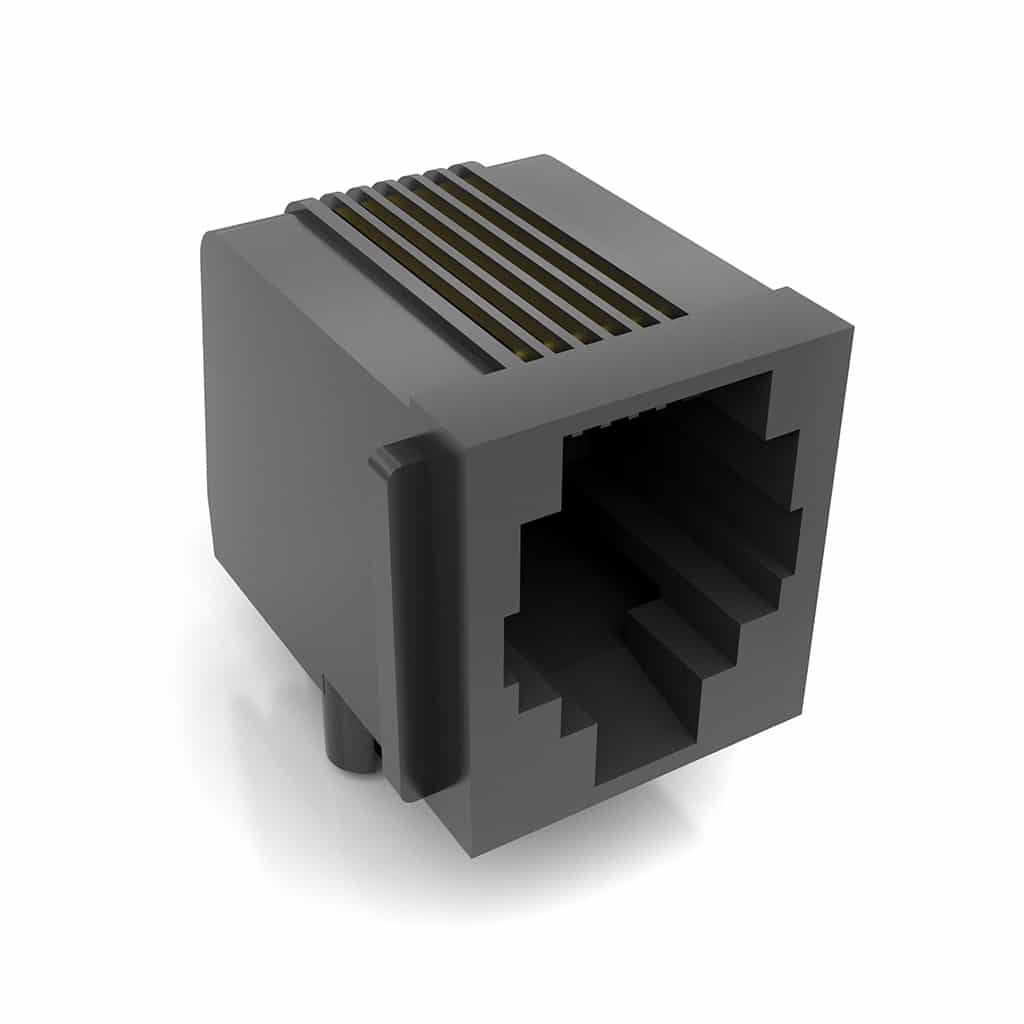

The DS1133-01 is a RJ12 6P6C socket from Connfly. The quality right angled socket has a PBT – UL 94V-0 flangeless housing with Gold Plated contacts. 16.00mm height.

  • RJ12 6P6C Female
  • Contact – Copper Alloy/ Gold Plated
  • Housing – PBT  (UL 94V-0)
  • Temperature Range -40C + 85C
  • Contact Resistance – 20mΩ max
  • Insulation Resistance – 1000MΩ min
  • Current Rating – 1.5A
  • Voltage Rating – 125V
