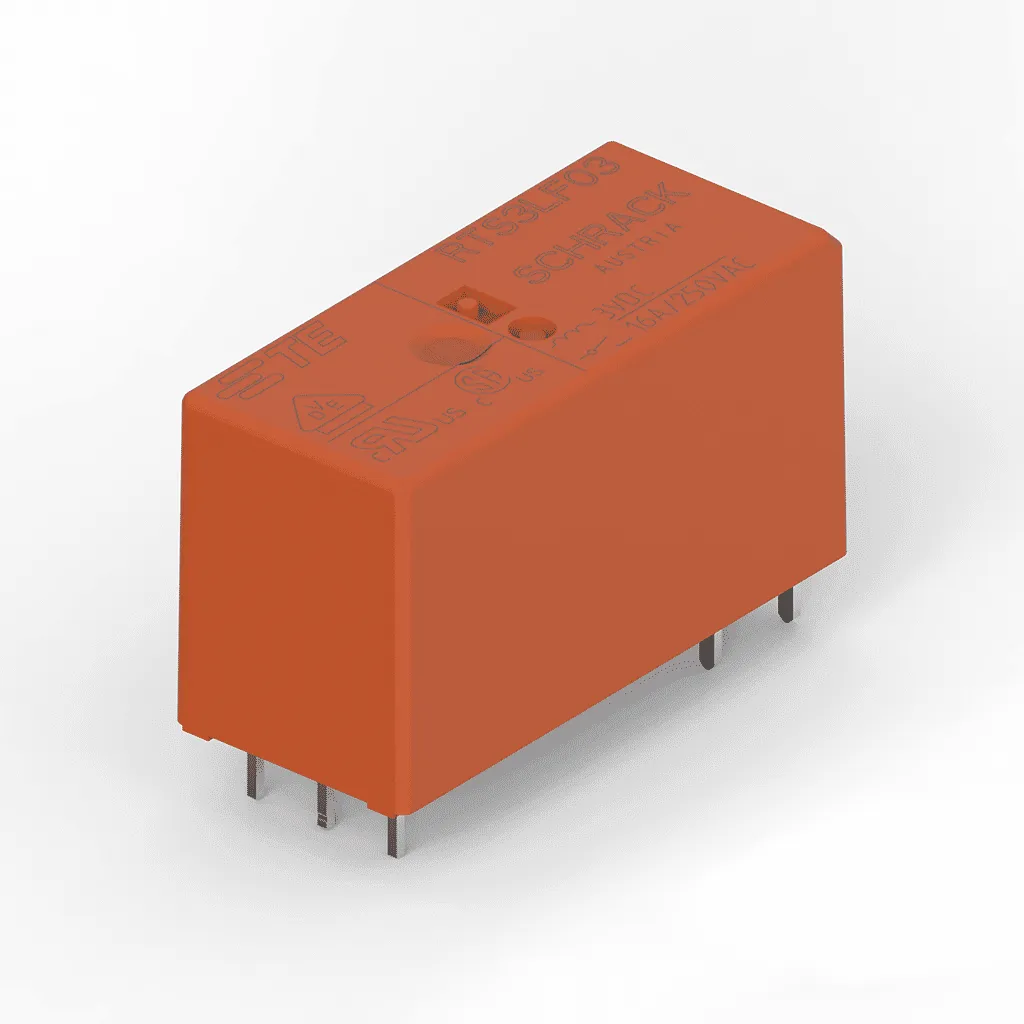

RT1 Inrush Power Relay
RT1 Inrush Power Relay - Image 2

RT1 Inrush Power Relay

SKU: RT Inrush Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc, 60Vdc, 110Vdc
Contact Arrangement

SPST (1NO)- 1 Form A
Coil Type

Non Latching, 1 Coil Latching, 2 Coil Latching
Contact Rating (Amps)

16A
Sealing

Flux Proof
Contact Material

AgSnO2, W + AgSnO2
Coil Resistance (Ohm)

15Ω, 203Ω, 21Ω, 240Ω, 28800Ω, 5520Ω, 8570Ω, 886Ω, 62Ω, 90Ω, 360Ω, 1440Ω
Mounting

PCB
Type

Power Relay

Product Description

This RT Inrush relay is designed to handle high inrush applications. Contacts are available with AgSnO2 and tungsten pre make.

Manual operated test tab is available on RTT3T bistable versions.



  • 1 pole 16A, 1 form A (NO) contact (AgSnO2 or W pre-make contact +
    AgSnO2)
  • Mono- or bistable coil
  • 5kV/10mm coil-contact
  • Reinforced insulation
  • Test tab (manual operator) optional for RTT3T bistable versions
  • WG version: product in accordance to IEC60335-1
  • RTS3T: Electronic ballast UL508/NEMA 410 rated
  • RTSET: 8A Electronic ballast rated
