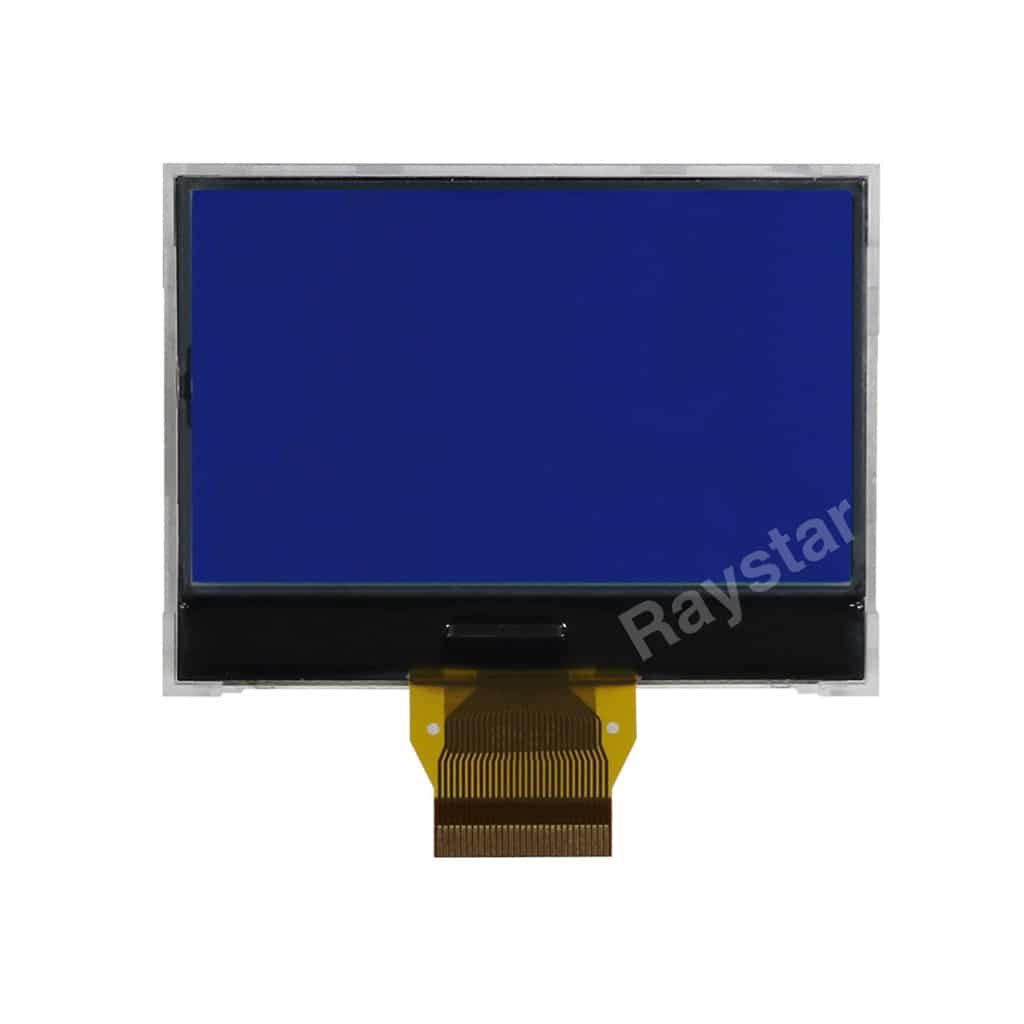

RX12864A1 series Chip-On-Glass 128x64 LCD 60.1mm x 44.5mm

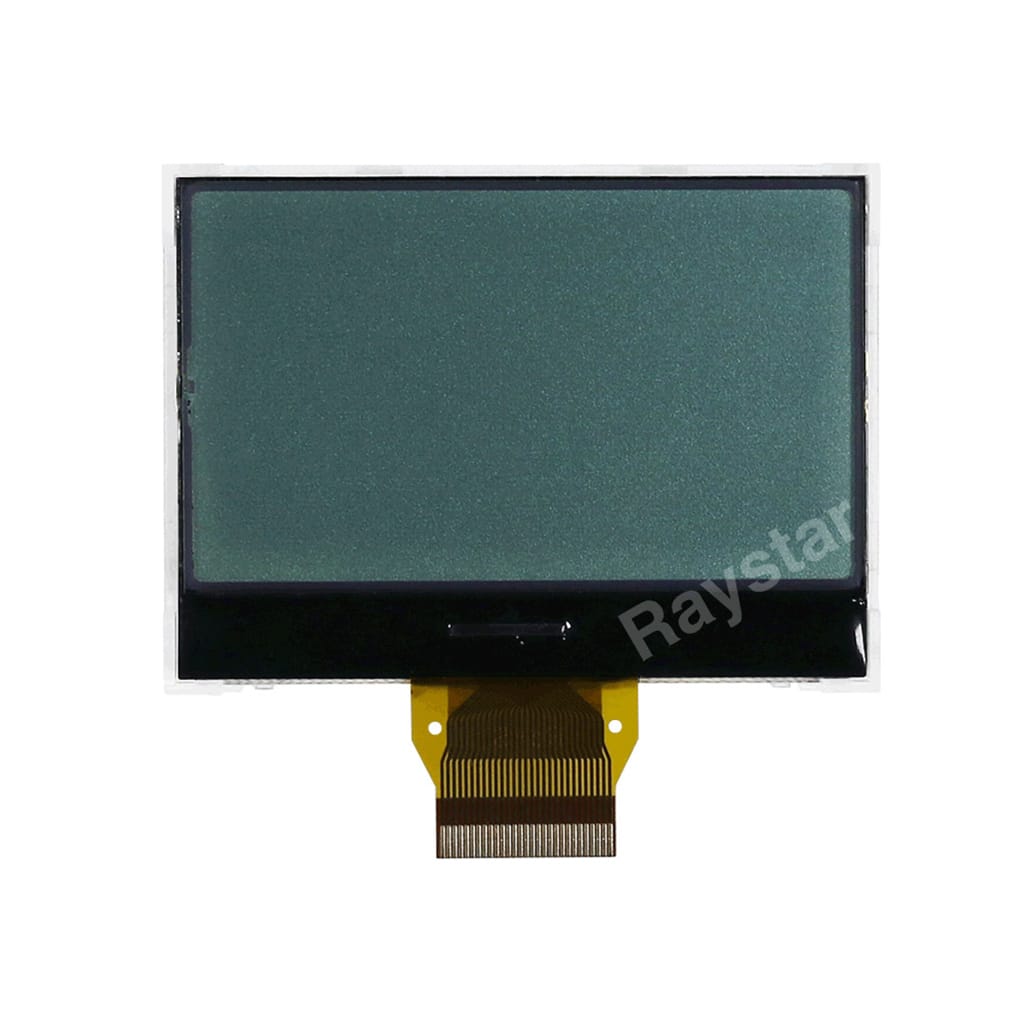

RX12864A1 series Chip-On-Glass 128x64 LCD 60.1mm x 44.5mm - Image 2

RX12864A1 series Chip-On-Glass 128×64 LCD 60.1mm x 44.5mm

SKU: RX12864A1 Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 60.1 × 44.5 mm
Pixels

128×64
Interface

6800, 8080, SPI
Construction

COG

Product Description

The RX12864A1 series is a standard Chip-On-Glass LCD,  offering 128×64 pixels within a 54.6mm x 32.0mm viewable area, with a built in ST7565P controller (or equivalent)

Available in either STN, FSTN or Blue-STN Technologies, a wide range of backlight colours are available











  • 128×64 Graphic LCD
  • Chip-On-Glass
  • Available in STN, FSTN or Blue-STN
  • Positive or Negative Mode
  • Reflective, Transflective or Transmissive polarisers available
  • Dimensions: 60.1mm x 44.5mm
  • Viewing Area: 54.6mm x 32.0mm
  • Active Area: 49.89mm x 27.49mm
  • Dot Size: 0.36mm x 0.40mm
  • Dot Pitch: 0.39mm x 0.43mm
  • 6800, 8080 & SPI Interface
  • Power Supply: 3.3V
  • On-Board Controller: ST7565P (or equivalent)
  • Standard Operating Temperature of -20°C to +70°C
