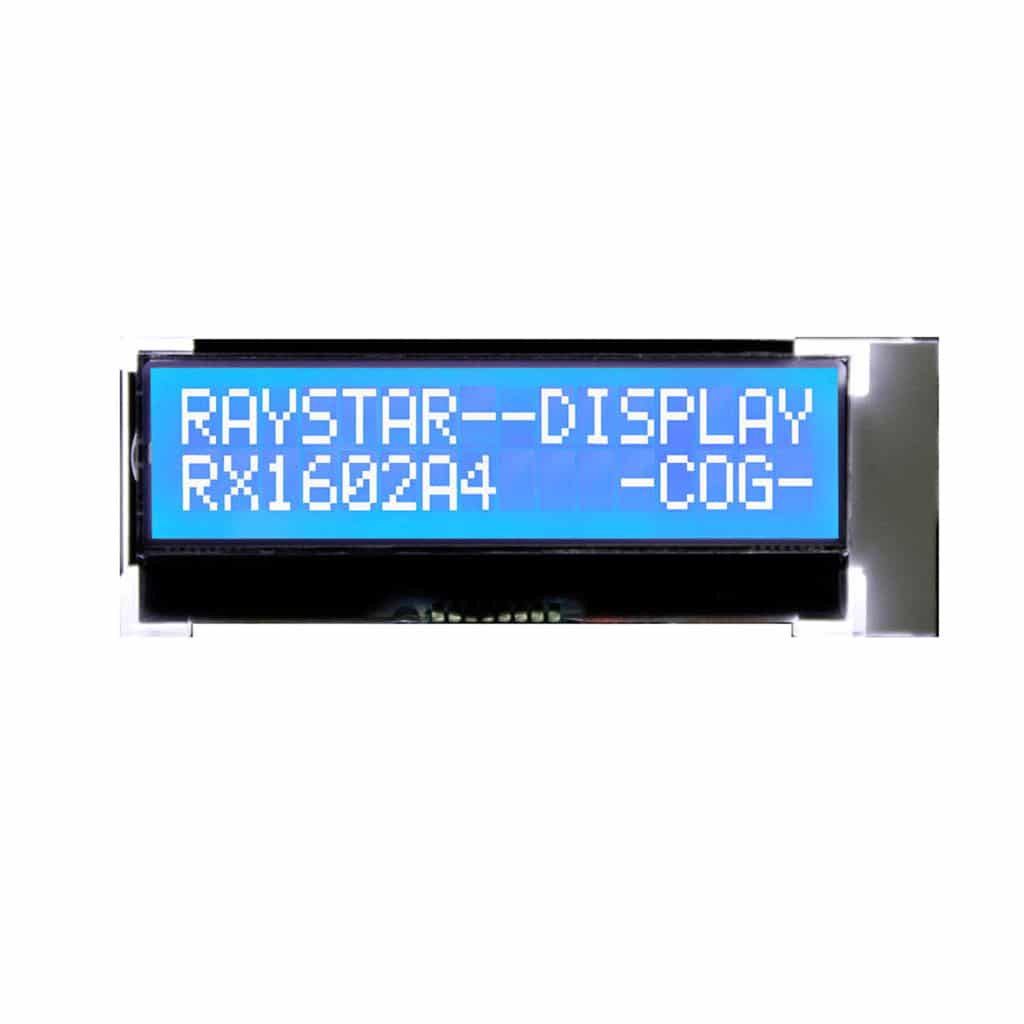

RX1602A4 16x2 COG Character LCD (62.8mm x 23.2mm)

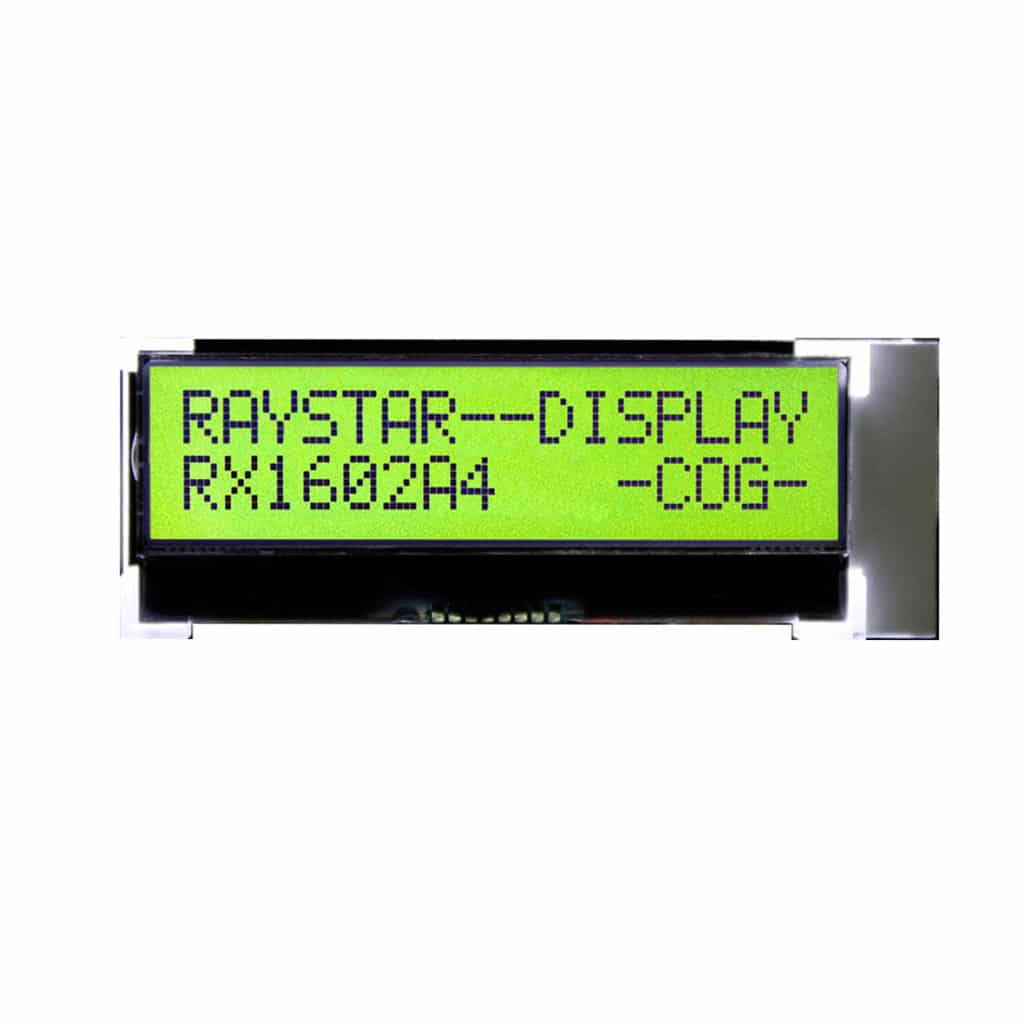

RX1602A4 16x2 COG Character LCD (62.8mm x 23.2mm) - Image 2

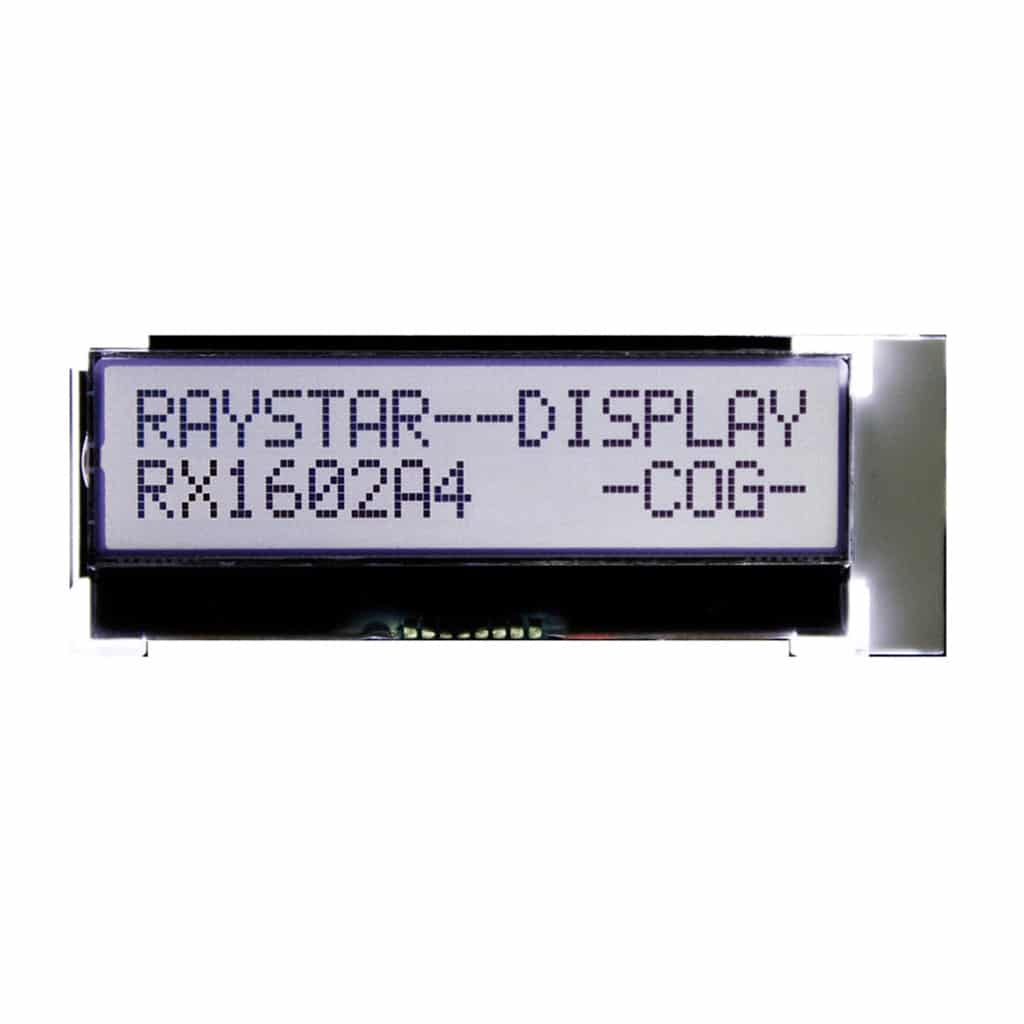

RX1602A4 16x2 COG Character LCD (62.8mm x 23.2mm) - Image 3

RX1602A4 16×2 COG Character LCD (62.8mm x 23.2mm)

This product is currently out of stock and unavailable.

SKU: RX1602A4 Categories: , , Manufacturer:
Download PDF

Product specs

Weight 10 g
Dimensions 62.8 × 23.0 mm
Characters

16×2
Interface

I2C
Technology

Blue-STN, FSTN, STN
Construction

COG
Font

Cyrillic, English, European

Product Description

The RX1602A4 Chip-On-Glass series of character displays is a standard range produced by Raystar Optronics, and is a range designed for the industrial market. Available in either STN or FSTN technologies, customers can also choose if they require a reflective, transflective or transmissive polariser as well as a choice of LED backlight colour (if a backlight is required). Using the ST7032i controller, customers can also select which font type they require, from English/Japanese, English/European or English/Cyrillic



  • 16×2 Character Liquid Crystal Display
  • Chip On Glass (COG)
  • Dimensions: 62.8mm x 23.0mm
  • Viewing Area: 51.5mm x 12.2mm
  • Available in either STN or FSTN Technology
  • Available in Reflective or Transflective Mode, with a choice of backlight colours
  • Standard Operating Temperature of -20°C to +70°C
