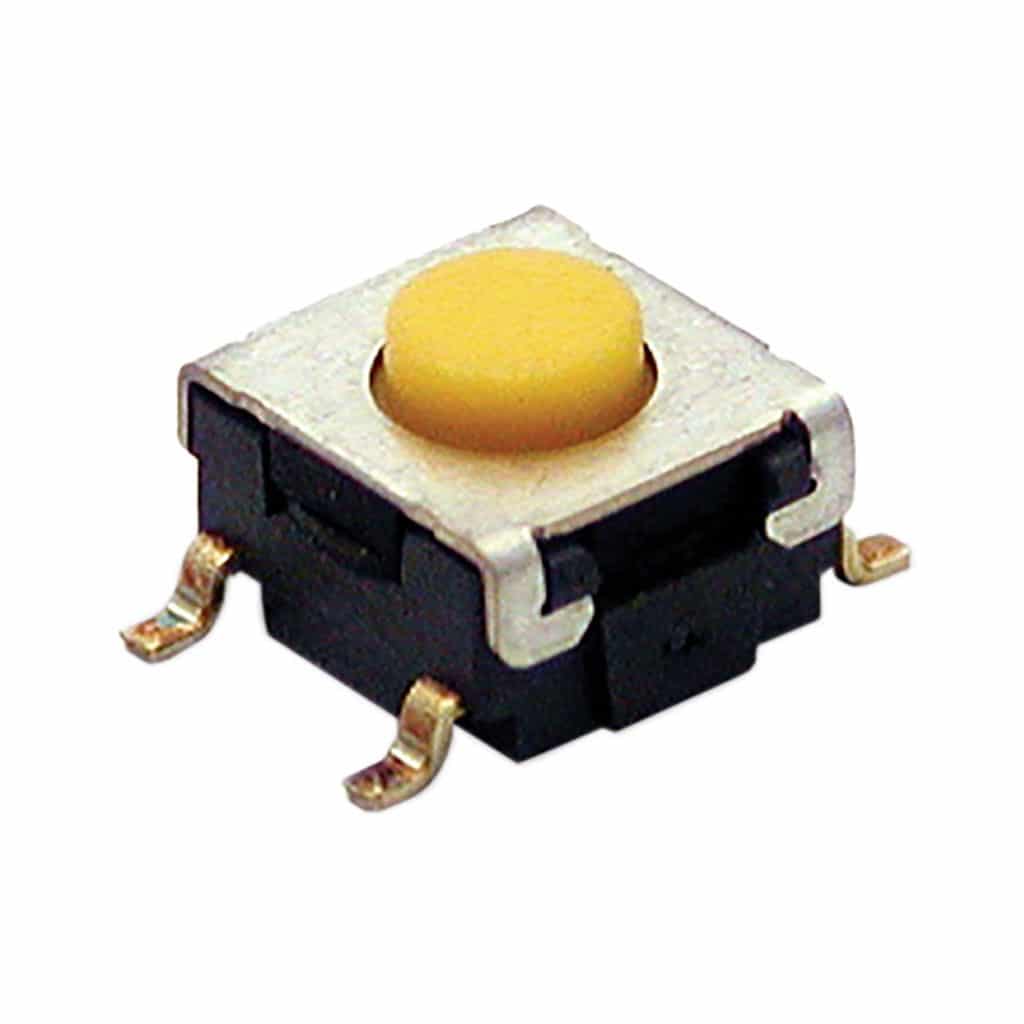

SMD IP67 Tact Switch 6×6 – B3S Series
Product specs
| Colour | Ivory, Yellow |
|---|---|
| Operating Force | 150gf, 260gf |
| Height | 4.3mm |
Product Description
The B3S series is an IP67 rated 6×6 SMD tactile switch from Omron. The series has a sealed construction conforming to IP67 (IEC-60529) which provides high contact reliability in locations exposed to dust or water. Sliver plated contacts and a standard height of 4.3mm. Surface-mounting terminals aid high-density mounting applications and also available in embossed taping packages. Please contact sales for further information.
- IP67 (IEC-60529)
- Contact Resistance 100mΩ Max.
- Contact Rating 1 to 50 mA, 3 to 24 VDC
- Insulation Resistance 100 MΩ min. @100 VDC
- Operating life 300,000 ⁓ 500,000 operations.
- Dielectric Withstanding Voltage 500 VAC, 50/60 Hz for 1 min
- Temperature range -25°C to +70°C at 60%RH max.
