SMD IP67 Tact Switch 6×6 – B3SN Series
Product specs
| Colour | Ivory |
|---|---|
| Operating Force | 160gf, 180gf |
| Package | Bag, Embossed Tape, Embossed Tape with Ground Terminal |
Product Description

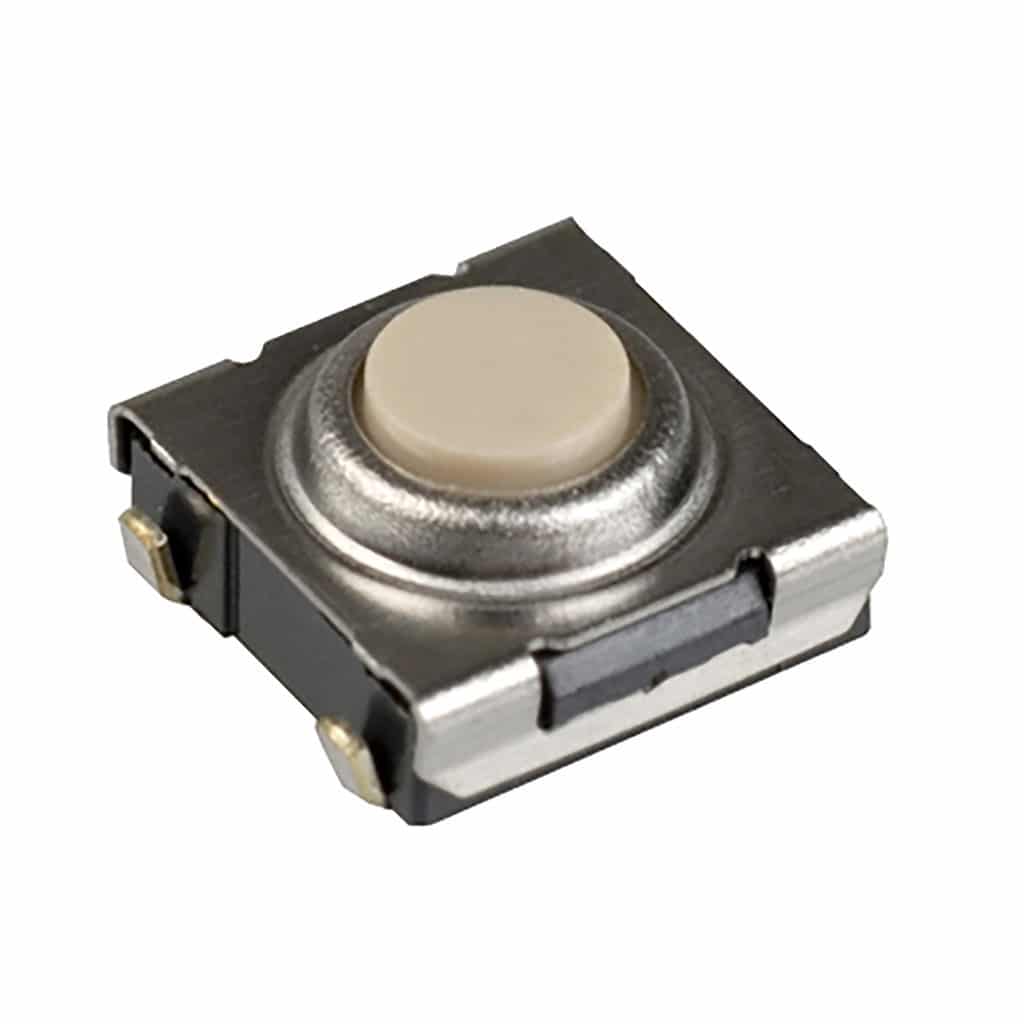

The B3SN series is an IP67 rated 6×6 SMD compact tactile switch from Omron. The series is 3.1mm high and has a sealed construction conforming to IP67 (IEC-60529) available with ground terminals for protection against static electricity. Using a stainless steel spring to give a crisp click. A Gold plated version enables stable contact and insulation over long periods of time. Please contact sales for further information.
- IP67 (IEC-60529)
- 3.1mm High
- Contact Resistance 100mΩ Max.
- Contact Rating 1 to 50 mA, 3 to 24 VDC
- Insulation Resistance 100 MΩ min. @250 VDC
- Operating life 100,000 operations.
- Dielectric Withstanding Voltage 250 VAC, 50/60 Hz for 1 min
- Temperature range -25°C to +70°C at 60%RH max.
