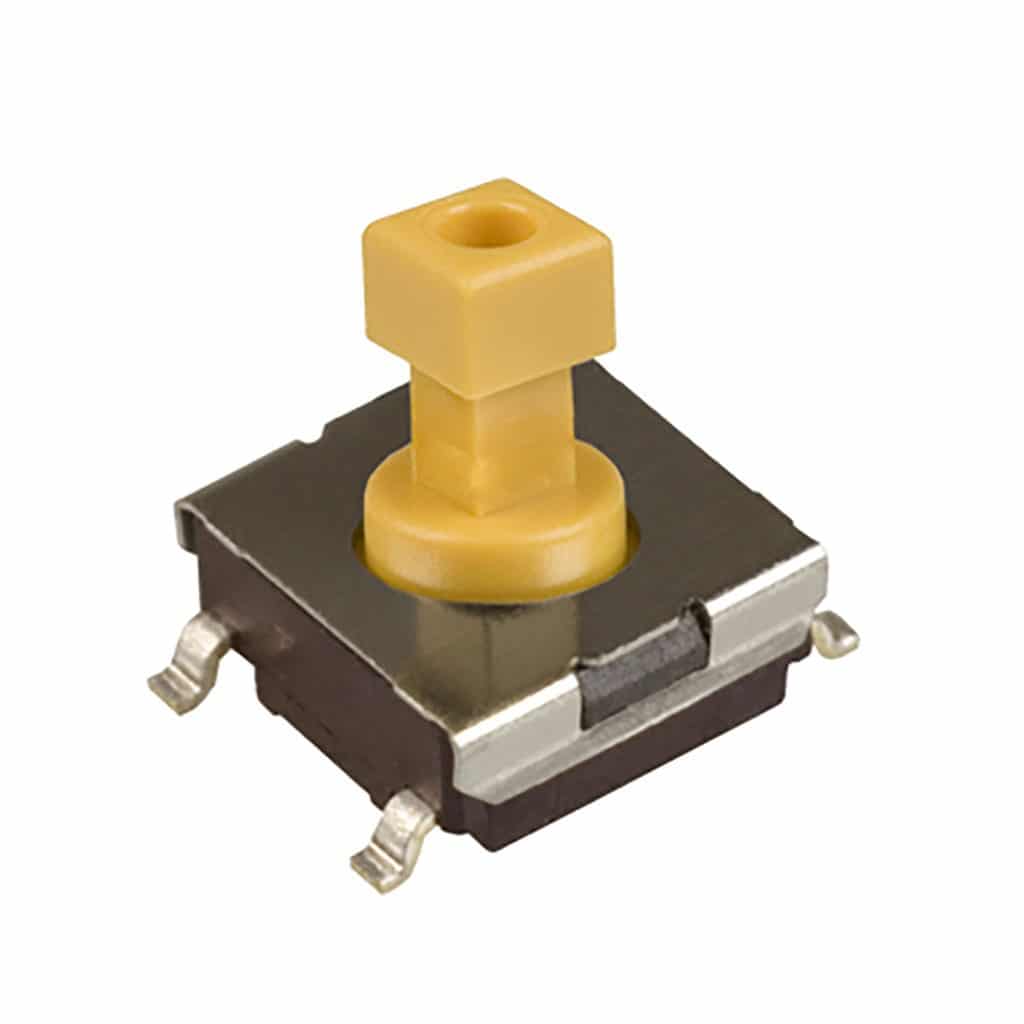

SMD Tact Switch 6×6 – B3FS Series
Product specs
| Colour | Ivory, Black |
|---|---|
| Operating Force | 100gf, 150gf |
| Height | 3.1mm, 4.3mm |
Product Description
The B3FS series is a 6×6 SMD tactile switch from Omron. The series incorporates Omron’s snap-action contact mechanism ensuring sharp switching action with silver Contacts. Horizontal, perfect for high density mounting. Please contact sales for further information.
- Contact Resistance 100mΩ Max.
- Contact Rating 1 to 50 mA, 3 to 24 VDC
- Insulation Resistance 100 MΩ min. @100 VDC
- Operating life 100,000 ⁓ 1,000,000 operations.
- Dielectric Withstanding Voltage 500 VAC, 50/60 Hz for 1 min
- Temperature range -25°C to +70°C at 60%RH max.
