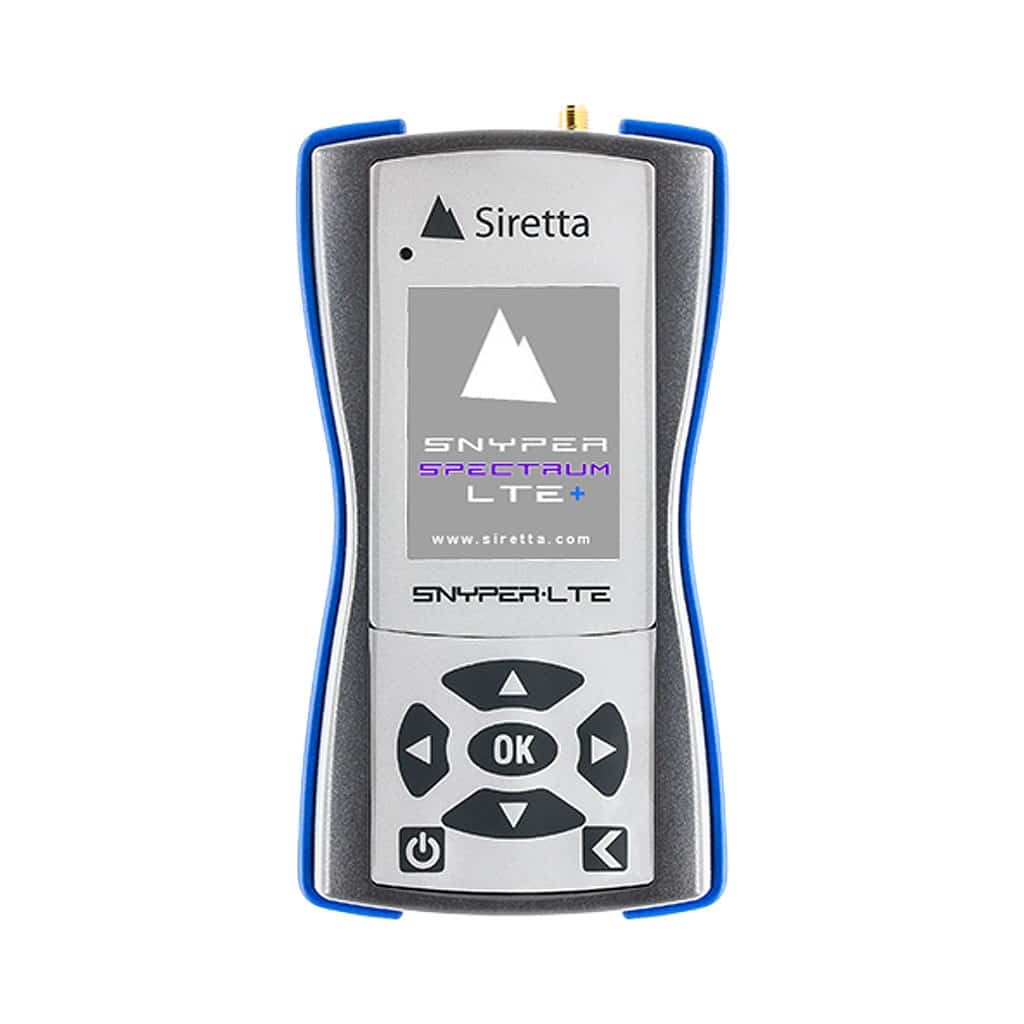

Snyper LTE+ Spectrum – Network Analyser

SKU: Snyper Spectrum LTE Categories: , Manufacturer:

Product specs

Weight 207 g
Dimensions 141 × 79 × 36 mm

Product Description

The SNYPER-LTE+ Spectrum (EU) is a high performance, multi-language network signal analyser dedicated to surveying the 4G/LTE, 3G/UMTS & 2G/ GSM European networks. The SNYPER-LTE+ Spectrum (EU) does not require a SIM in order to provide network survey results.

The SNYPER-LTE+ Spectrum (EU) can save multiple surveys locally in memory and incorporates Siretta’s leading liveSCAN feature which allows you to perform real time graphical site surveys on the full colour SNYPER display.

The SNYPER-LTE+ Spectrum is supplied with an omni-directional antenna to detect “hotspots” in buildings and perform site surveys and also includes a directional antenna kit to perform point-to-point antenna alignment. The  SNYPER can survey the local network and display results from all discovered cellular cell towers observed in the area. Results are ordered from highest to  lowest “visible” base-station signal and the key network parameters of each are displayed.

Supplied with a rugged hardcase, USB cable and USB car charger.

  • Enhanced cellular surveying of new and existing installations on 4G / LTE, 3G / UMTS and 2G / GSM networks
  • Establish most suitable operator for application
  • Evaluate your “preferred” MNO’s performance
  • Determines “hotspots” & assists with antenna alignment, through Siretta’s liveSCAN feature
  • Results are reported in CSV & graphical HTML format
  • SIM free operation on all bands and technologies
  • Complete network breakdown and summary results



To discuss your next IoT project, call the office on 01748 850 555

  • 2 Supported Bands GSM | GPRS:
    900/1800MHz
  • 2 Supported Bands UMTS/HSPA+:
    900/2100MHz
  • 5 Supported Bands LTE:
    800/900/1800/2100/2600MHz
  • Blue antenna for 700MHz to 2300 MHz
  • Silver/Grey Antenna for 2600MHz
  • liveSCAN feature for scanning selected base-stations
