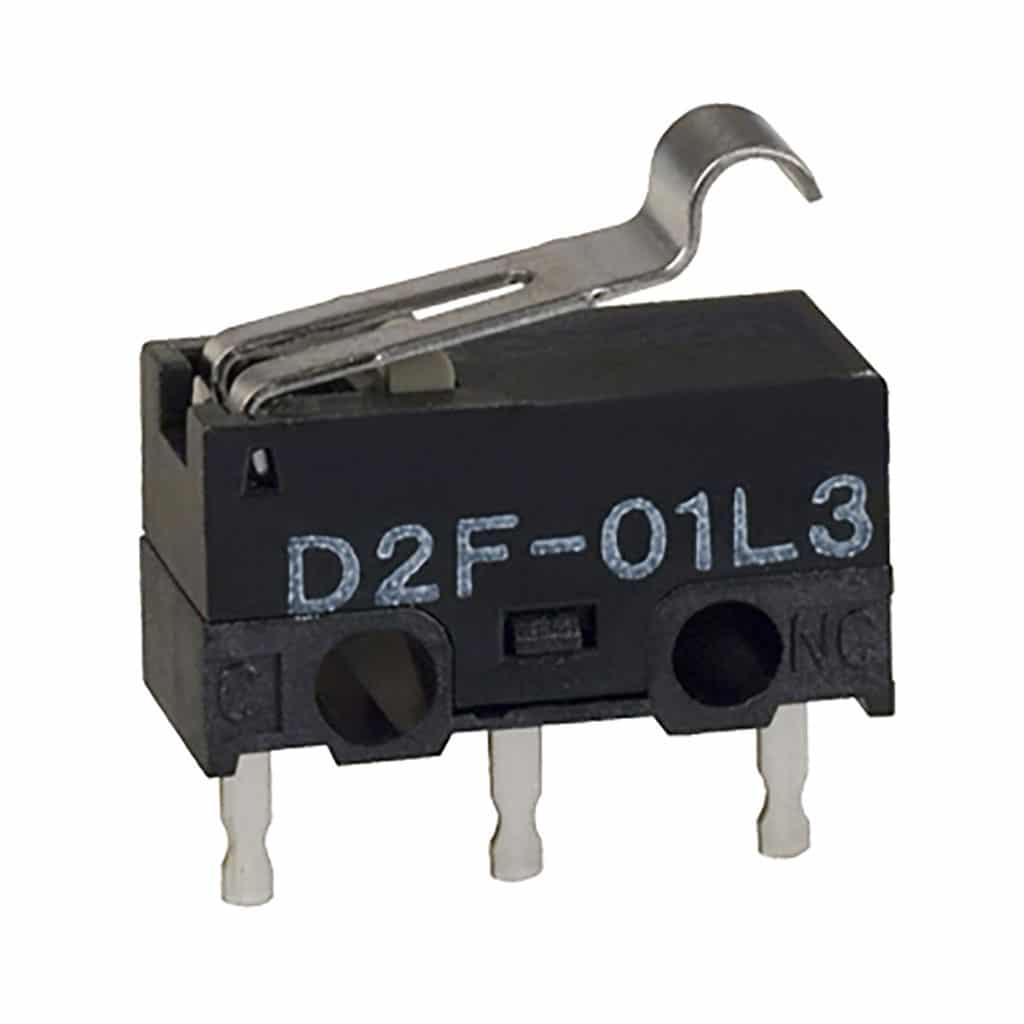

Subminature Microswitch – D2F Series
Product specs
| Operating Force | 150gf |
|---|---|
| Actuator | Lever |
Product Description
The D2F is an ultra subminature microswitch from Omron. Incorporating a snapping mechanism made with two highly precise split springs that ensures long durability. The switch uses insertion molded terminals that prevent flux penetration. Available in variety of terminal variations such as self clinching PCB, left angled, right angled terminals, solder terminals and compact solder terminals. IP40 rated with UL and CSA approvals. Contact our sales for further information.
- IEC IP40
- Contact Resistance 100mΩ Max.
- Insulation Resistance 100 MΩ min. @250 VDC
- Operating life 1,000,000 mechanical operations.
- Temperature range -40°C to +85°C (at ambient humidity 60% max.)
