T9A 30a Power Relay
T9A 30a Power Relay - Image 2
T9A 30a Power Relay - Image 3

T9A 30a Power Relay

SKU: T9A Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 15Vdc, 18Vdc, 24Vdc, 48Vdc, 110Vdc
Contact Arrangement

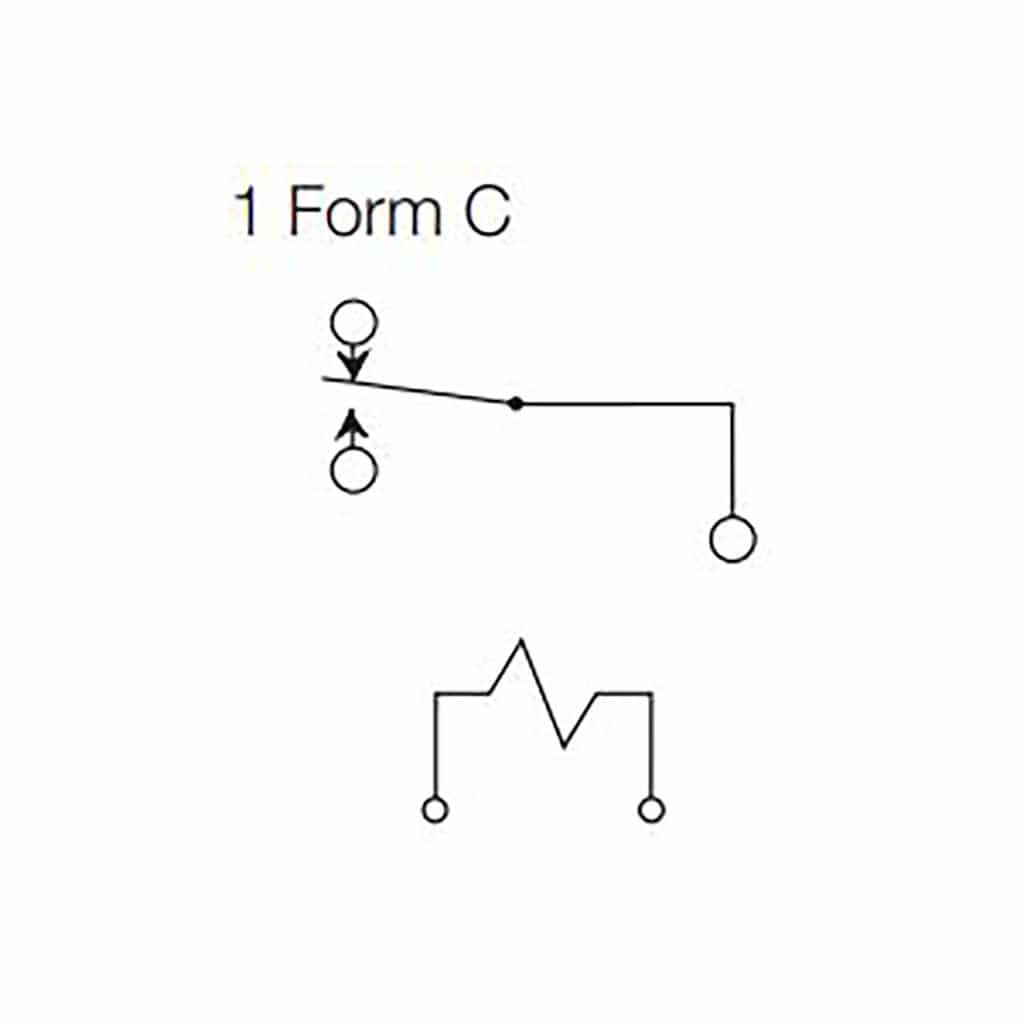

SPST (1NO)- 1 Form A, SPST (1NC) – 1 Form B, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

20A, 30A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgCdO, AgSnOInO
Coil Resistance (Ohm)

12100Ω, 13450Ω, 155Ω, 2560Ω, 256Ω, 25Ω, 27Ω, 36Ω, 380Ω, 40Ω, 660Ω, 81Ω, 97Ω, 225Ω, 144Ω, 324Ω, 576Ω, 2304Ω
Mounting

Panal, PCB
Type

Power Relay

Product Description

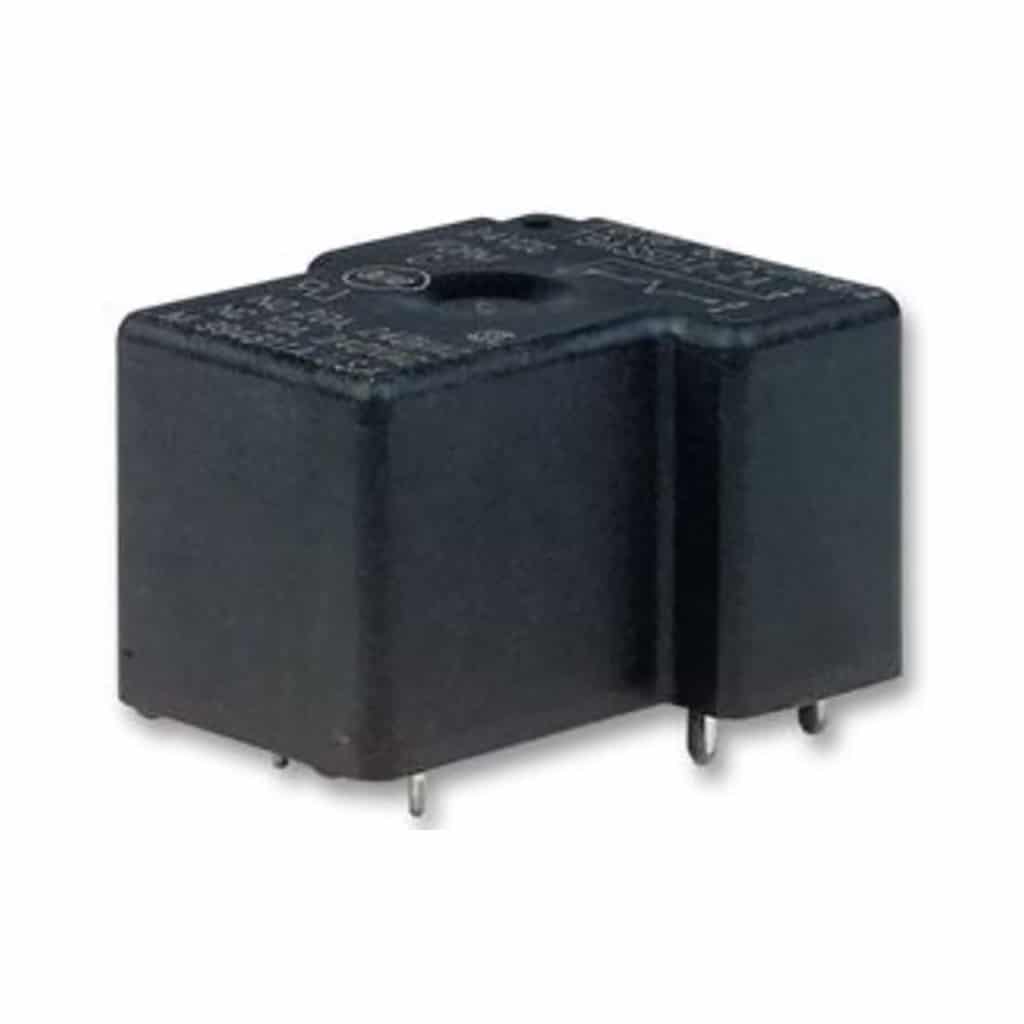

The T9A series from TE Connectivity is a 30amp relay on normally open contacts and 20amp on change over. Available in 1 form A, B & C contact arrangement.



  • 30A switching in 1 form A (NO) and 20A in 1 form C (CO)
  • Plastic sealed case available
  • Meets UL 508 and 873 spacing – 3.18mm through air, 6.36mm over
    surface
  • Option for load connections via 0.250”” (6.35mm) Q.C. terminals
  • UL class F insulation system standard
