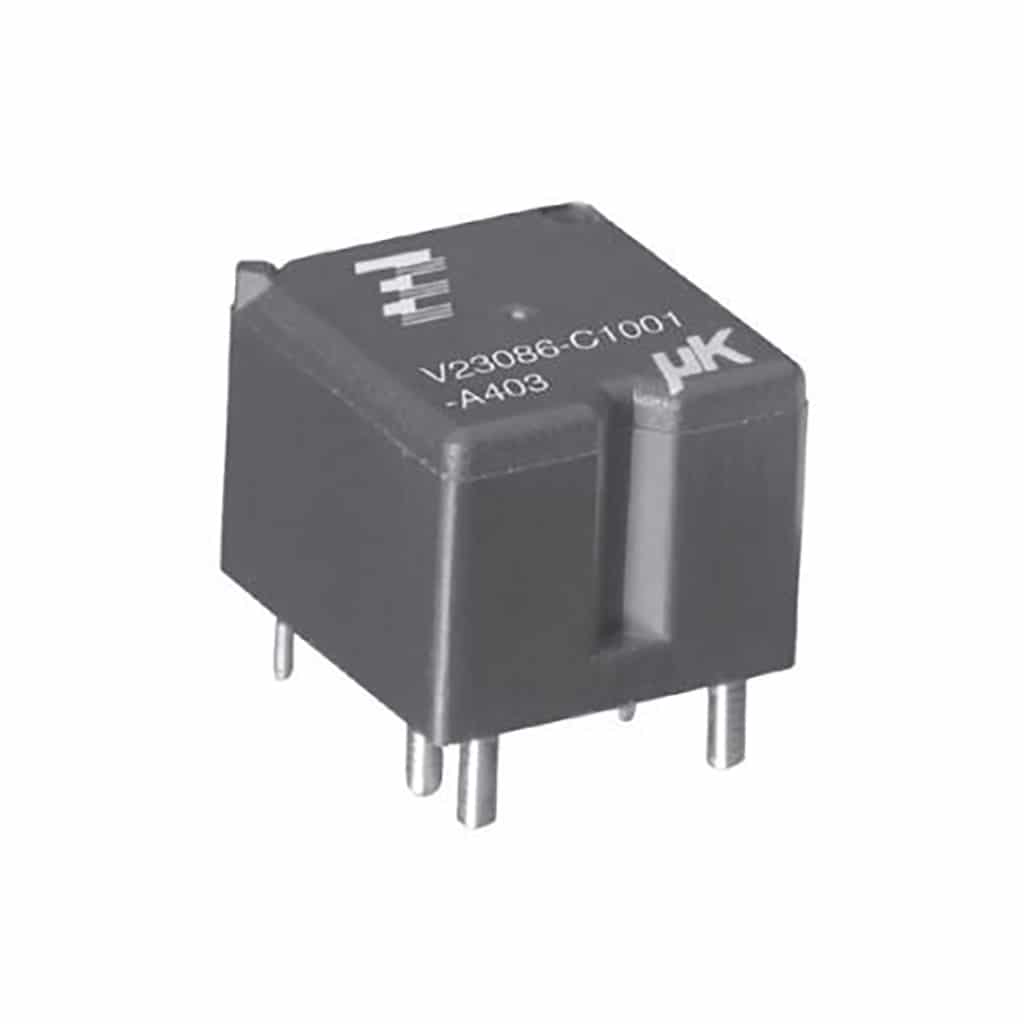

V23086 – Small 25A Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 10Vdc, 12Vdc |

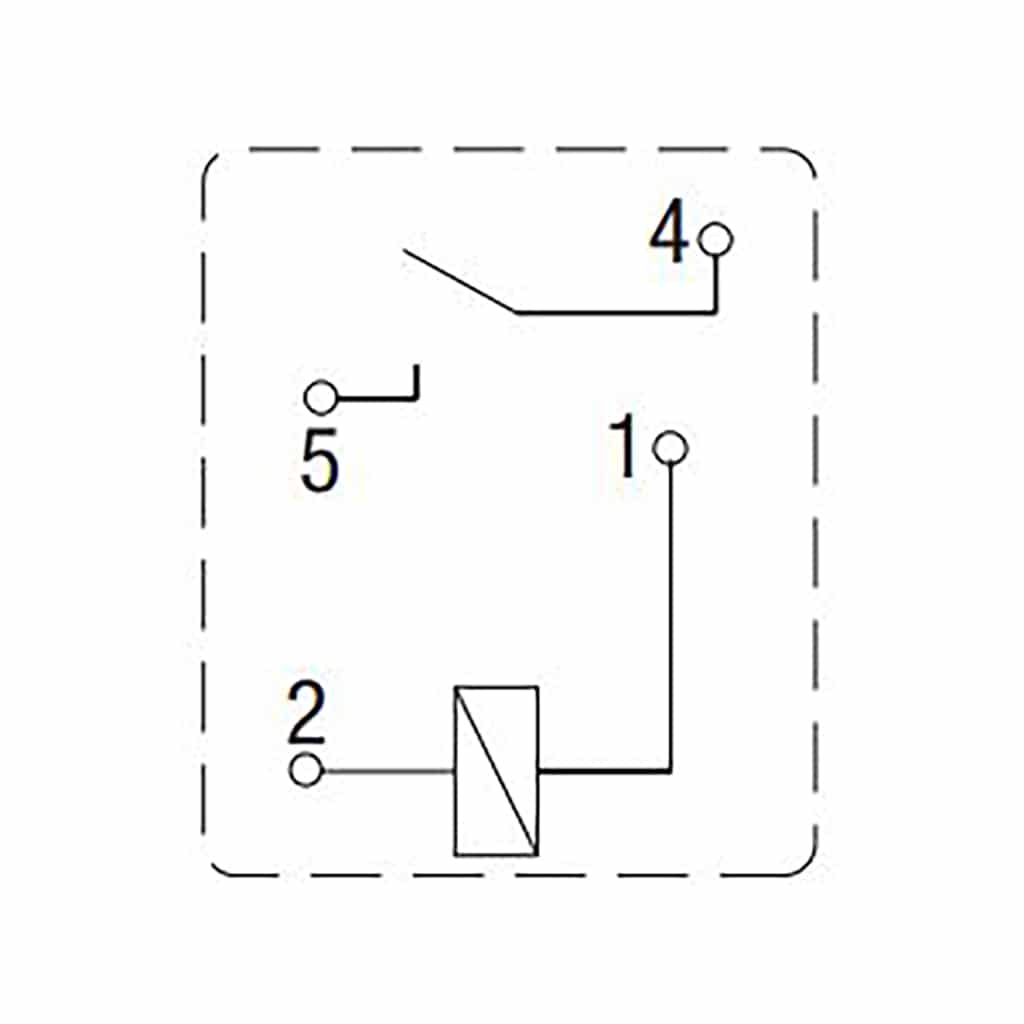

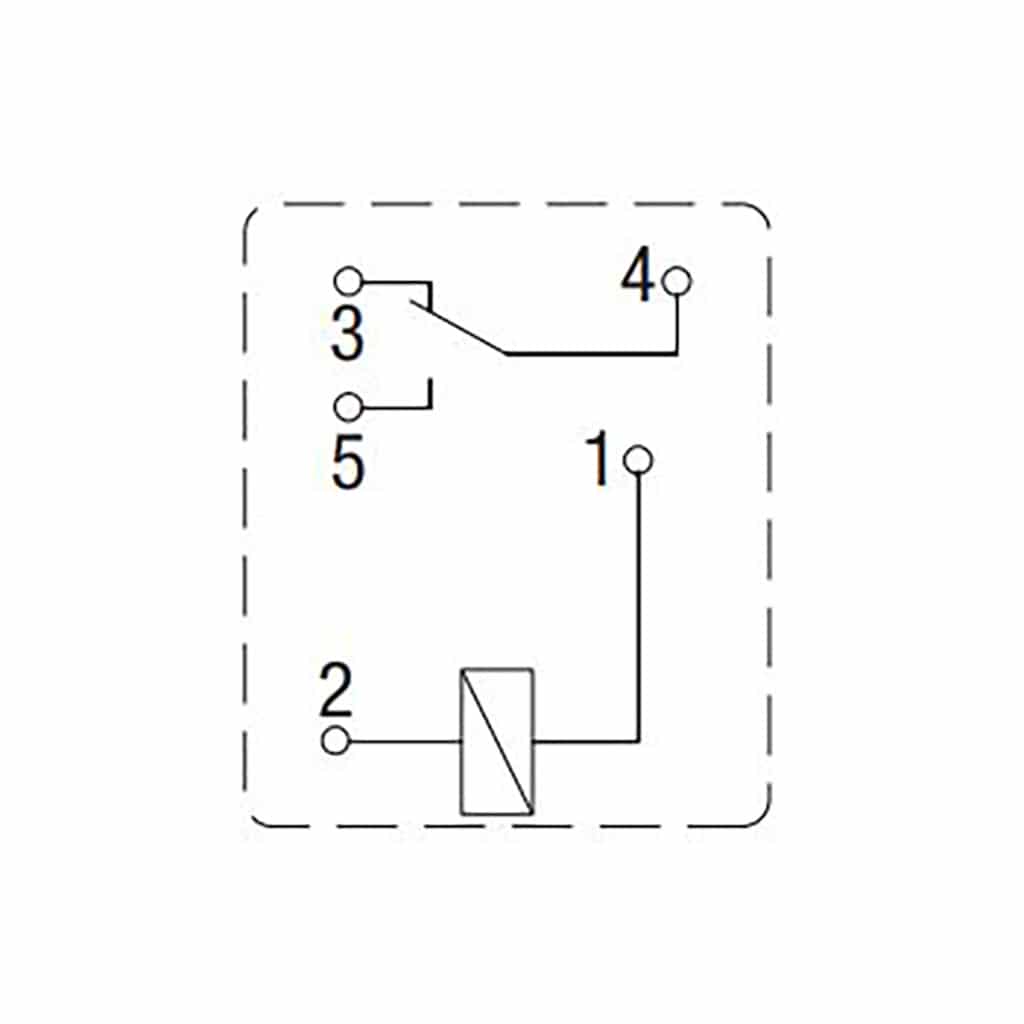

| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 25A |
| Sealing | Fully Sealed, THR – Vented |
| Contact Material | AgSnO2 |
| Coil Resistance (Ohm) | 181Ω, 254Ω, 90Ω |
| Mounting | PCB |
| Type | Automotive Relay |
Product Description
V23086 is a small 25a relay with a footprint of only 12.9 x 12mm. Available on 1 form A and 1 form B contact arrangements.
- Small power relay
- Limiting continuous current 20A at 85°C
- Low weight
- Low noise operation
- Wave (THT) and reflow (THR/pin-in-paste) solderable versions
- For double version refer to Double Micro Relay K
