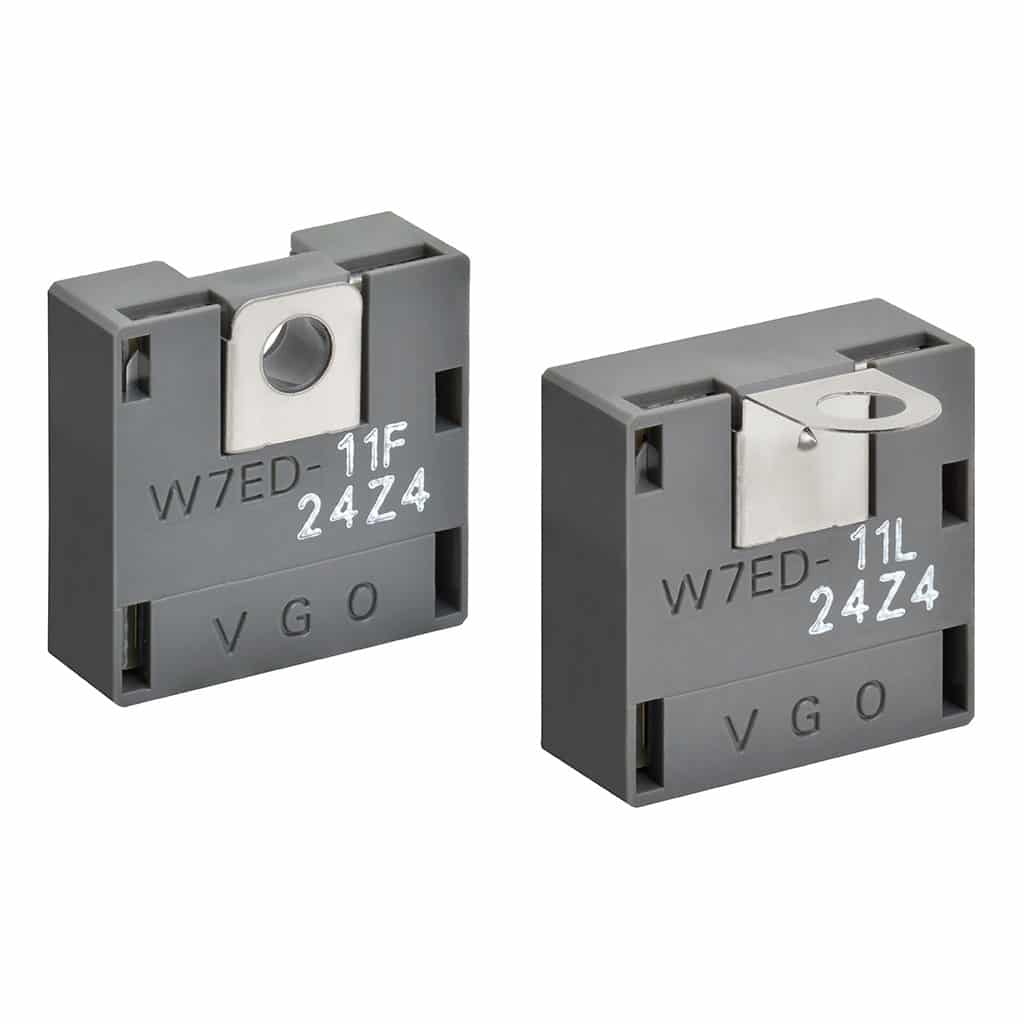

W7ED Touch Sensor Series

SKU: W7ED Categories: , , Manufacturer:

Product specs

Dimensions 15 × 15 mm
FG Terminal

With, Without

Detected Capacitance

25±5 pF

Power Supply

5 to 15V

Product Description

The Omron W7ED series of Touch Sensors are ideal for embedding straight into your equipment. Requiring only a light touch these touch sensors can be configured to be suit your application. The touch electrodes and touch sensor electrodes can be fastened just using screws allowing for quick and easy integration. Body-to-electrode static electricity transfers can also easily be prevented using FG terminal models.

  • Detected Capacitance: 25 ±5 pF
  • Power Supply Voltage: 5VDC to 15VDC
  • Output: Open Collector (max output current 10mA)
  • Residual Output Voltage: 0.4V
  • Current Consumption: 10mA (max)
