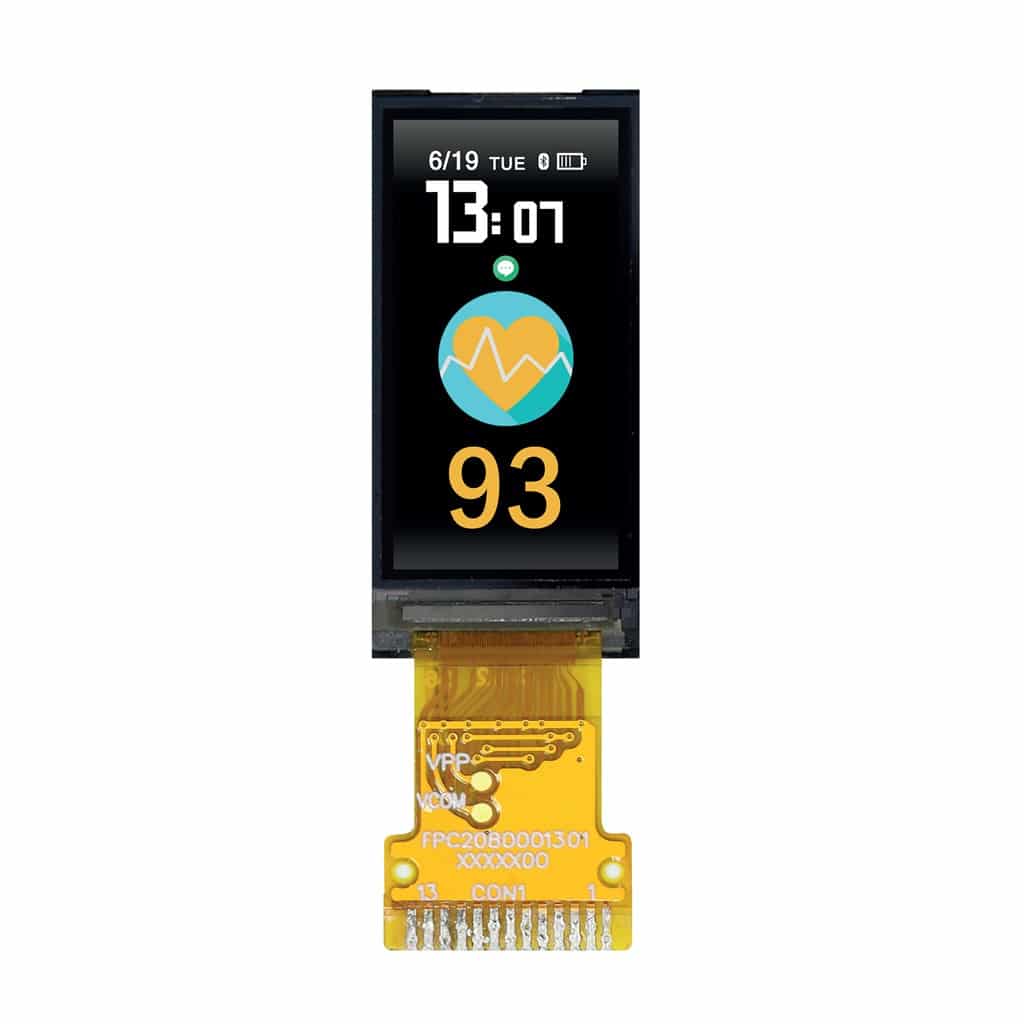

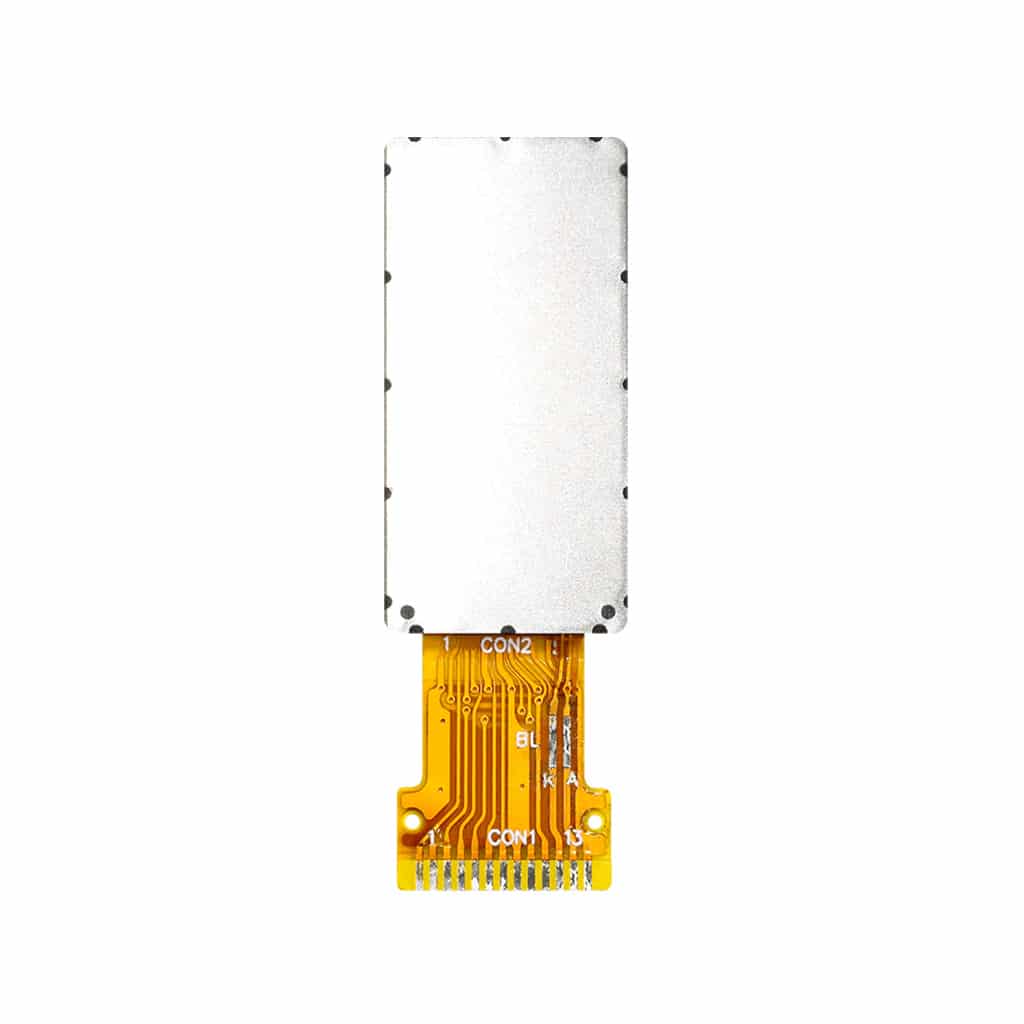

0.96″ TFT Display Module 80×160 (IPS)

SKU: 0.96" TFT Categories: , Manufacturers: , ,

Product specs

Dimensions 13.5 × 27.95 mm
Display Size

0.96"

Pixels

80×160

Technology

IPS

Interface

SPI

Product Description

Easby Electronics are able to offer several different variants of the popular 0.96″ Micro-TFT from Raystar, LCD-World and Team Source. This 80×160 pixel count TFT is an IPS display and offers incredible all round viewing angles. Generally available with the Sitronix ST7735S built in controller, this device has an SPI interface

As we have several different options for this type of product, please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application

  • 0.96″ TFT
  • IPS
  • 80/80/80/80 Viewing Angle
  • Overall Dimensions: 13.5mm x 27.95mm
  • Viewing Area: 11.40mm x 22.27mm
  • Active Area: 10.8mm x 21.696mm
  • Built-in Controller: ST7735S
  • SPI Interface
  • Operating Temperature: -20°C to +70°C
