1.5mm2 – Push-In – DS1.5 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

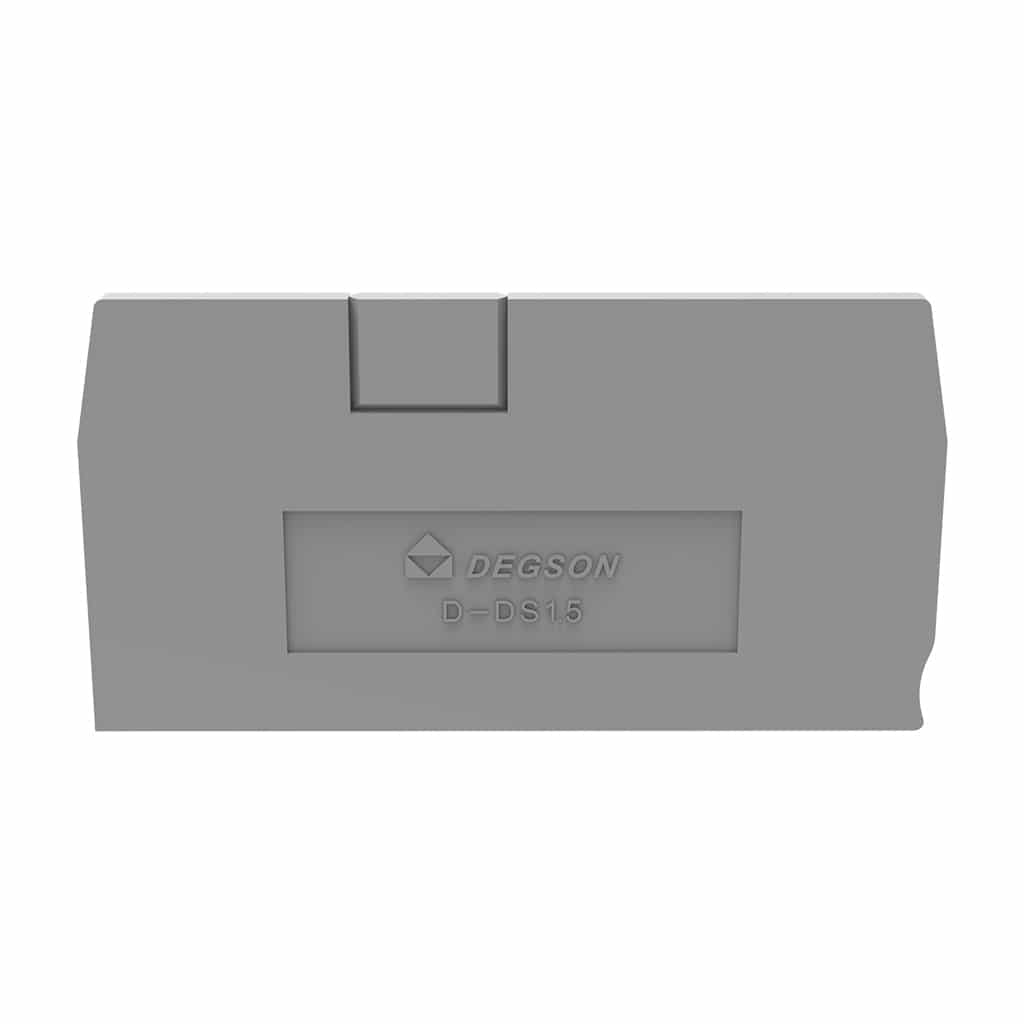

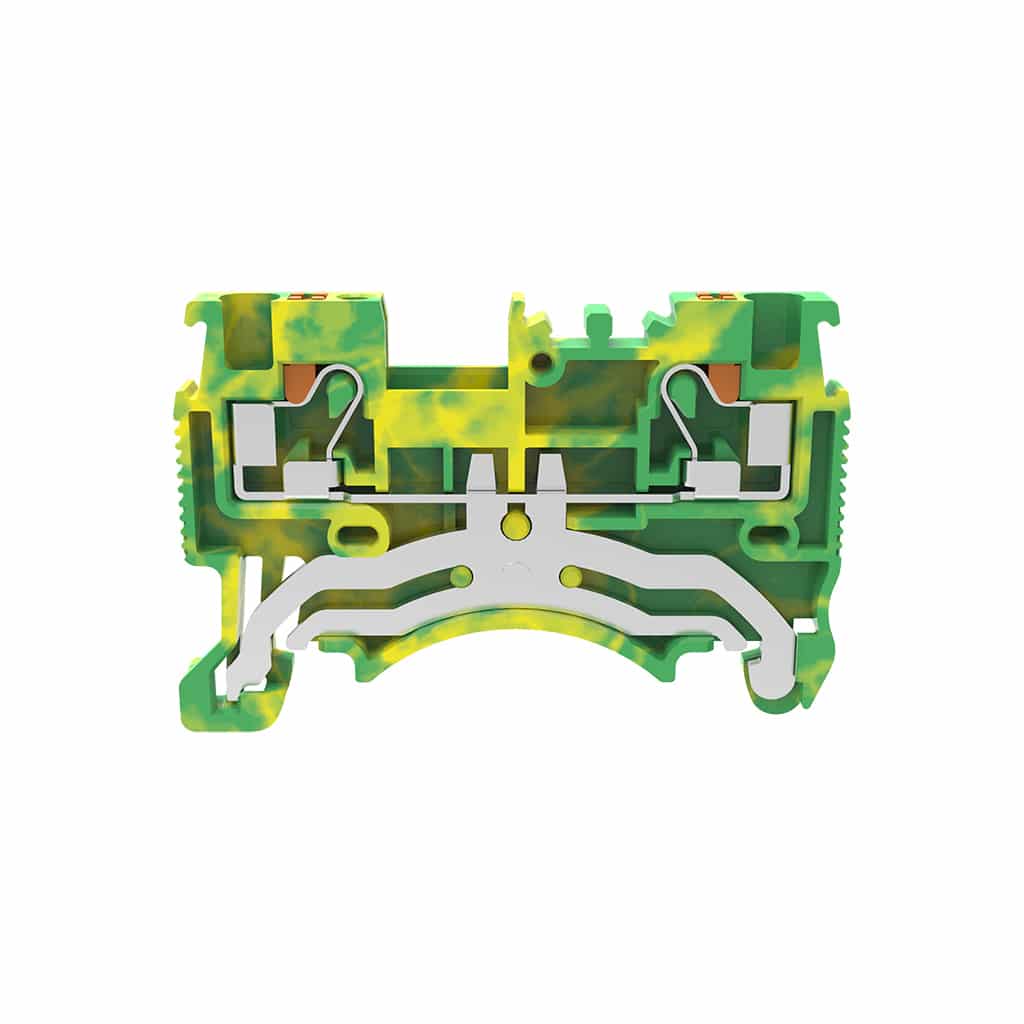

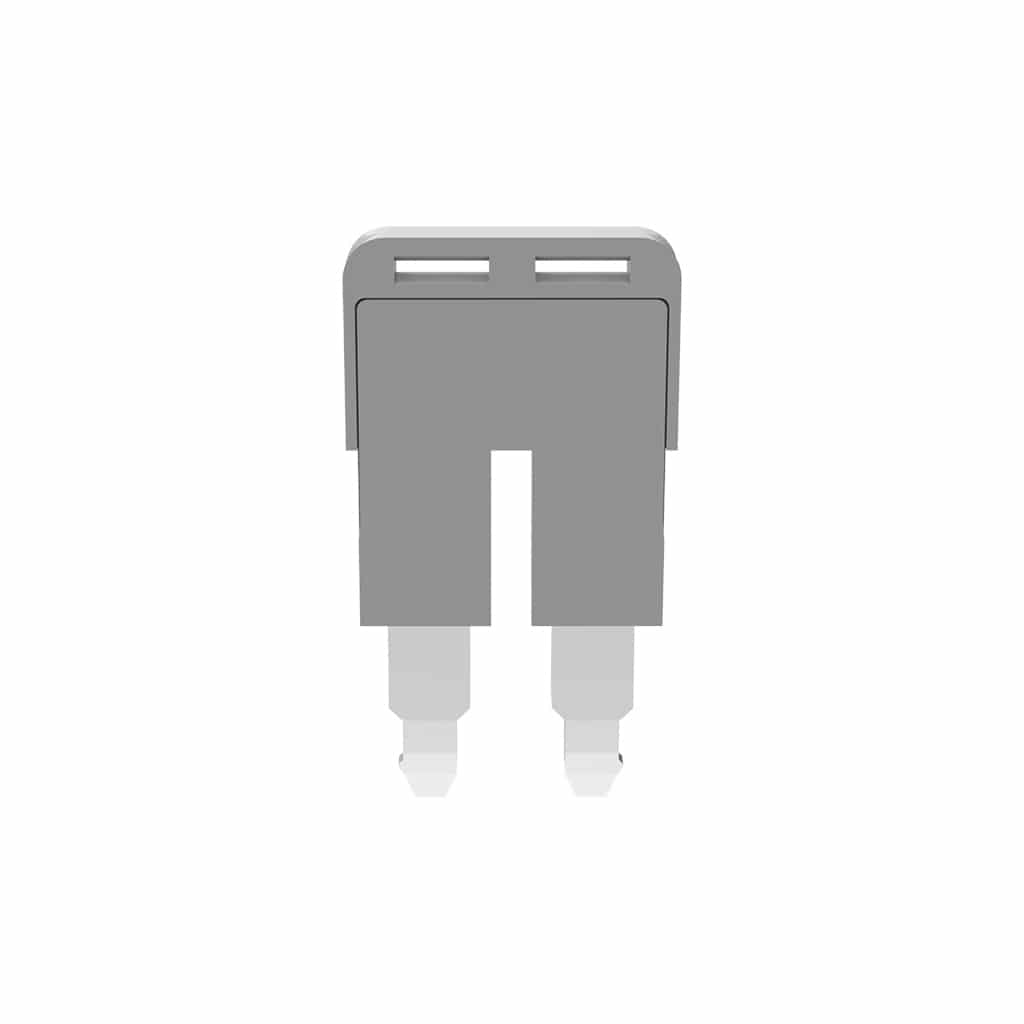

| Description | 1.5mm2 Earth, 1.5mm2 Grey, 2 Way Jumper, Blank Marking Tab, End piece for DS1.5, DS1.5-PE, End Stop |
| VDE/CE Ratings | 0.2-1.5mm2 17.5a @ 500V, 0.2-1.5mm2 |
| UL Ratings | 14-26awg, 14-26awg 15a @ 300V |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, UL |
Product Description
DS1.5 series is a Push-in Type Din-Rail clamped with a spring cage offering upto 1.5mm2 Cable entry. Product is available in multiple colours upon request. DS1.5 series are PA66 material offering the highest V0 flammability rating.
- 1.5mm2
- Push-In
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
Related products
-

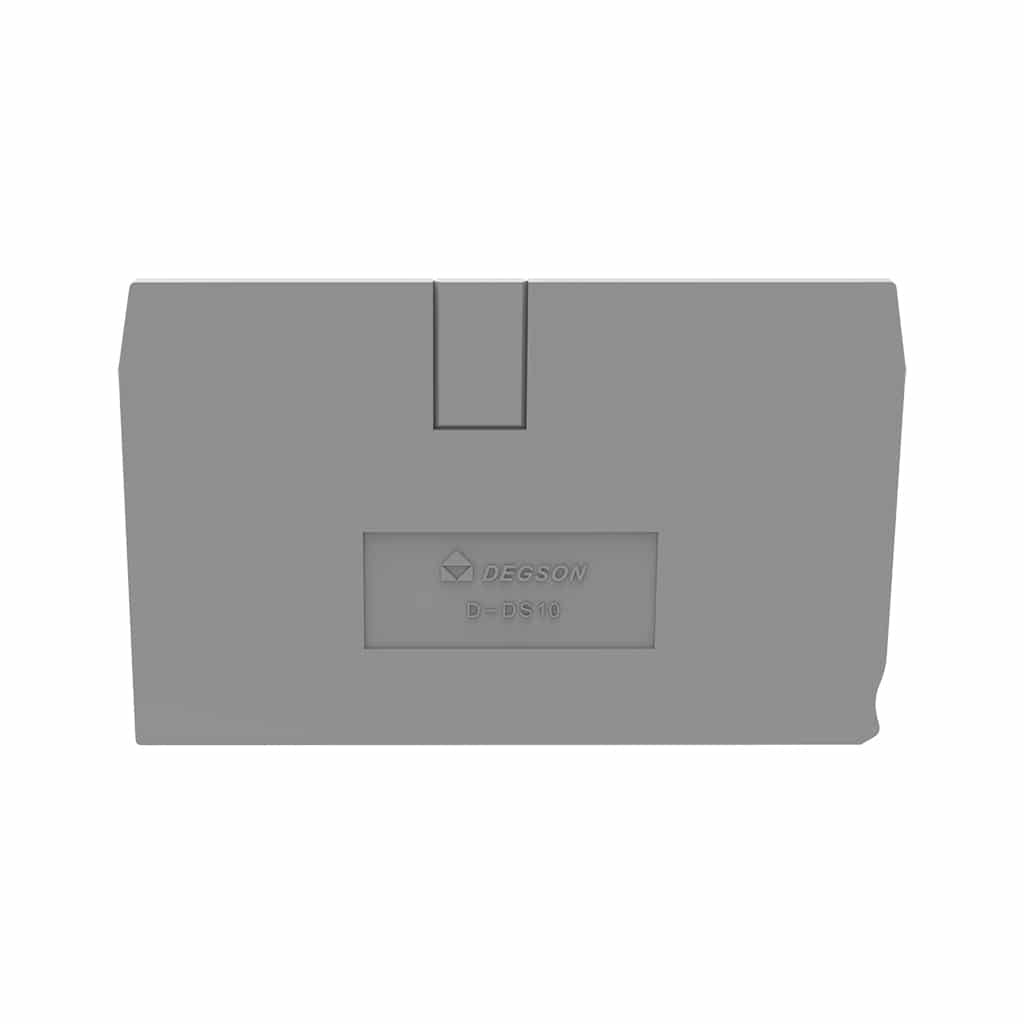

10mm2 – Push-In – DS10 – Din-Rail Series
Add to Quote Request This product has multiple variants. The options may be chosen on the product page -

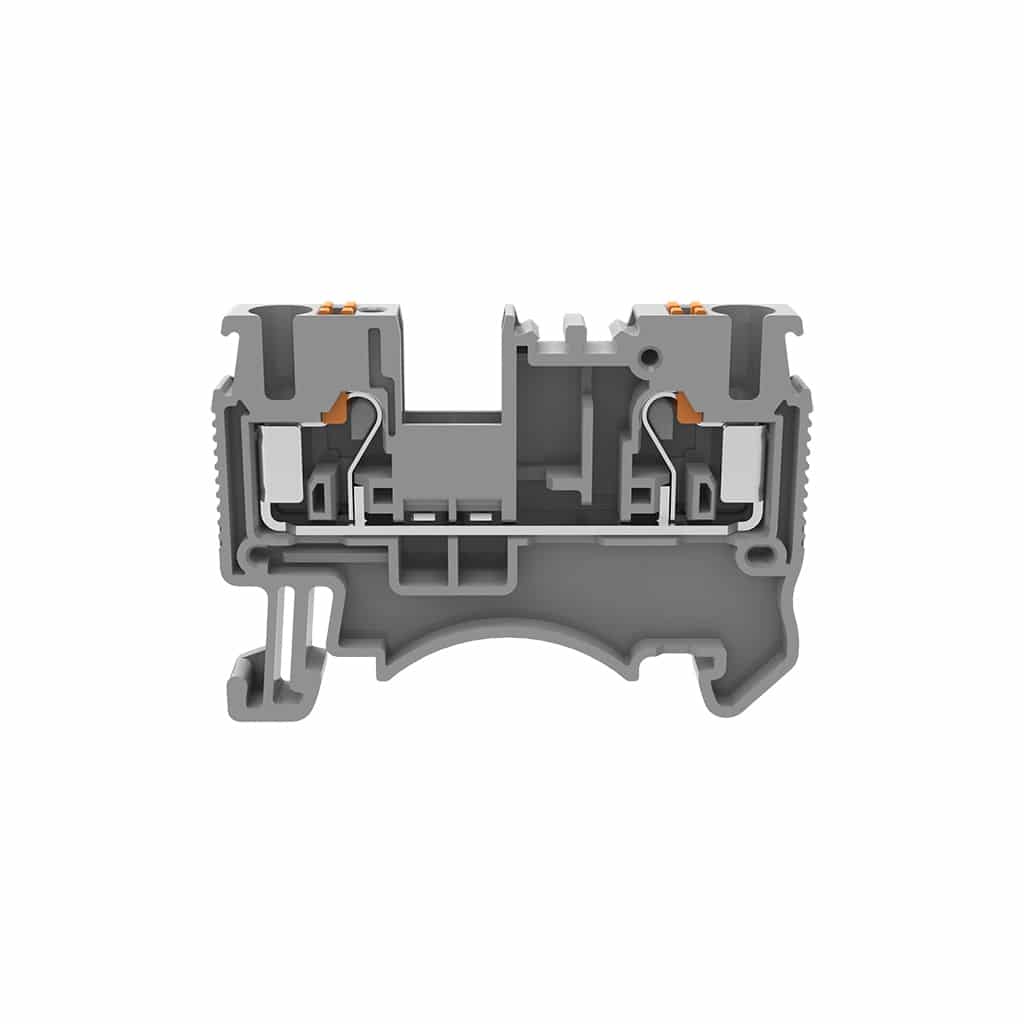

2.5mm2 – Push-In – DS2.5 – Din-Rail Series
