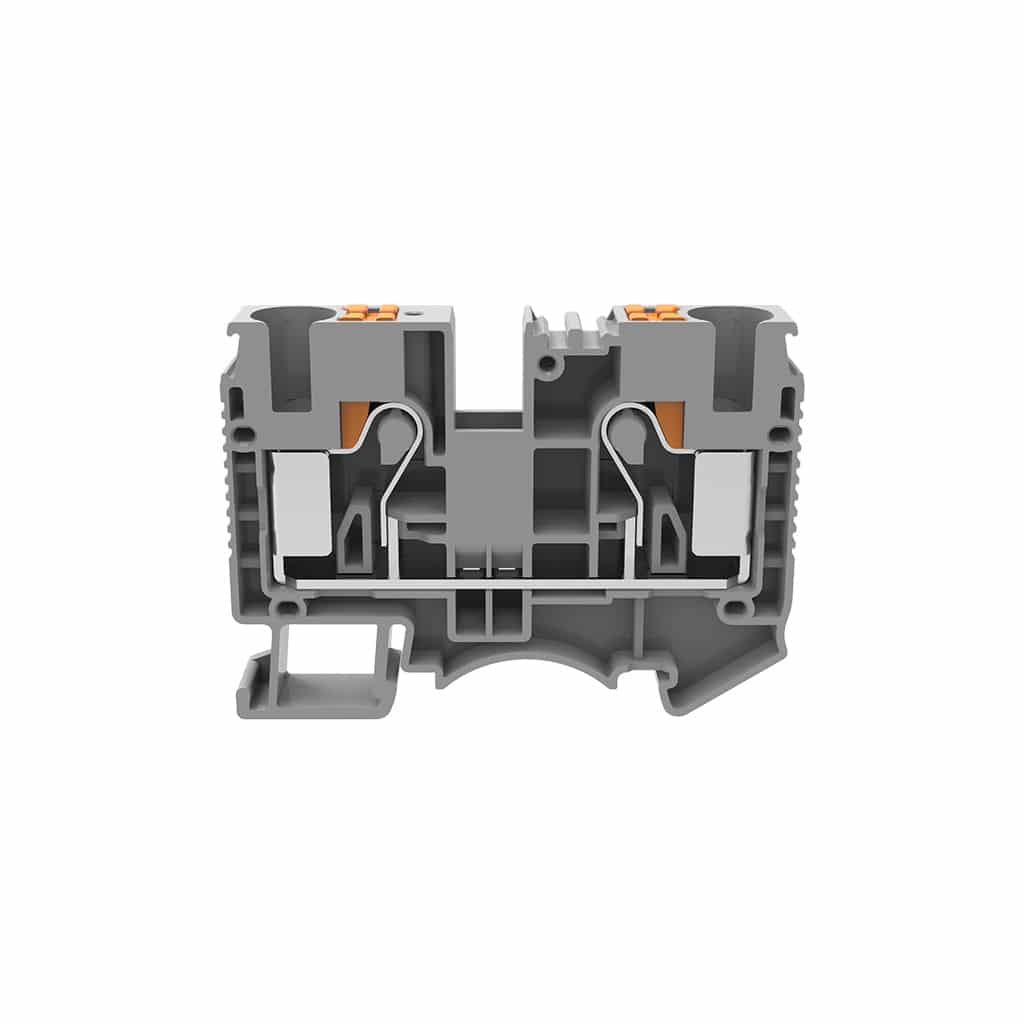

10mm2 – Push-In – DS10 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

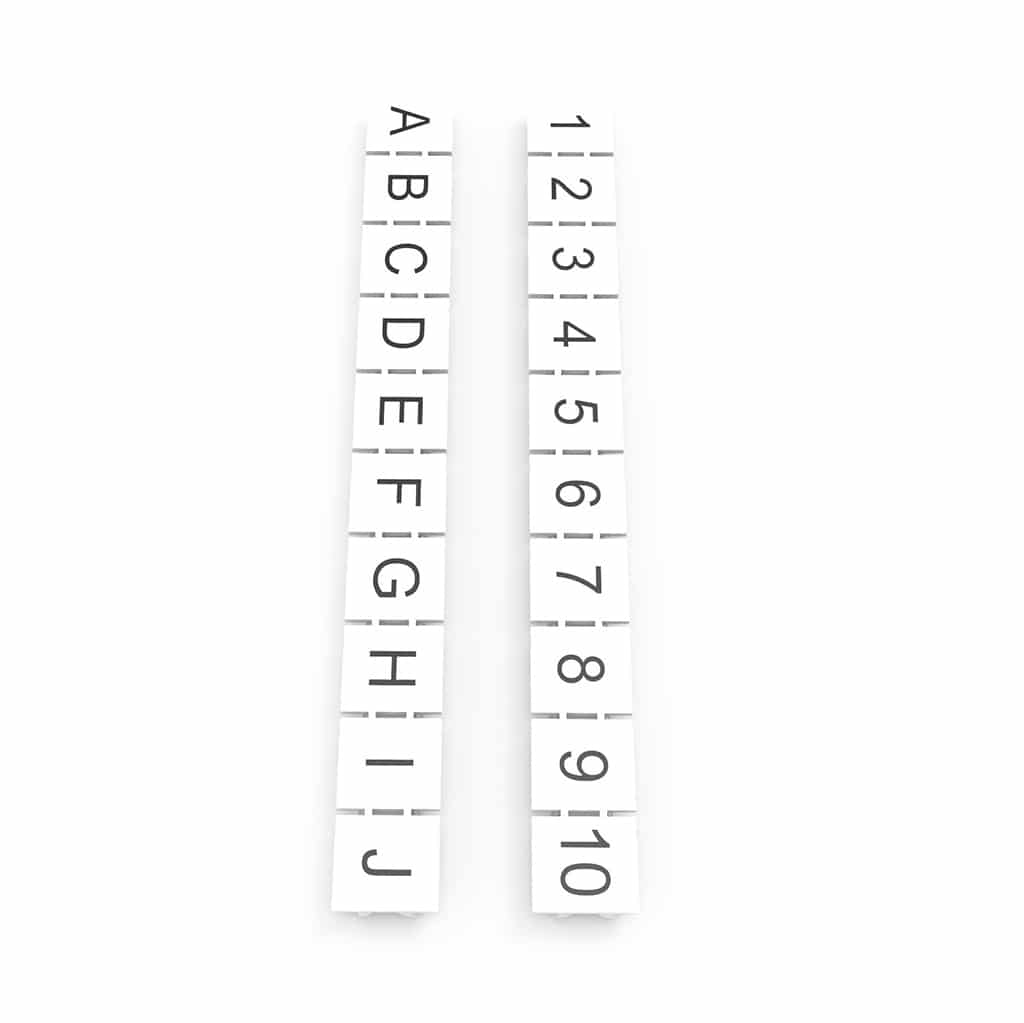

| Description | 10mm2 Earth Connector, 10mm2 Grey Connector, 2 Way Jumper, Blank Marking Tab, End piece for DS10, DS10-PE, End Stop |
| VDE/CE Ratings | 0.5-16mm2 (solid), 0.5-16mm2 (solid) 41a @ 1000V |
| UL Ratings | 6-20awg, 6-20awg 60a @ 600V |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, UL |
Product Description
DS10 series is a Push-in Type Din-Rail clamped with a spring cage offering upto 10mm2 Cable entry. Product is available in multiple colours upon request. DS10 series are PA66 material offering the highest V0 flammability rating.
- 10mm2
- Push-In
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
