2.5mm2 – Push-In – DS2.5 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

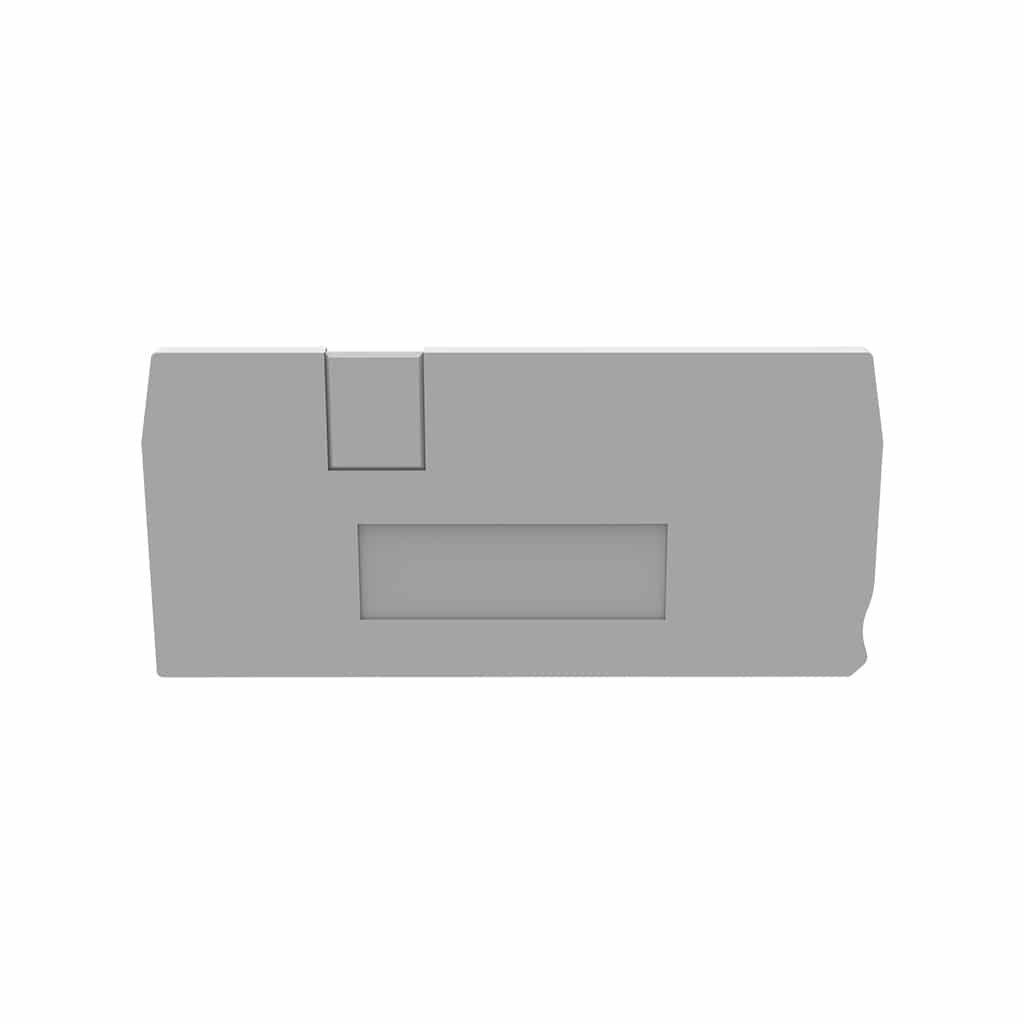

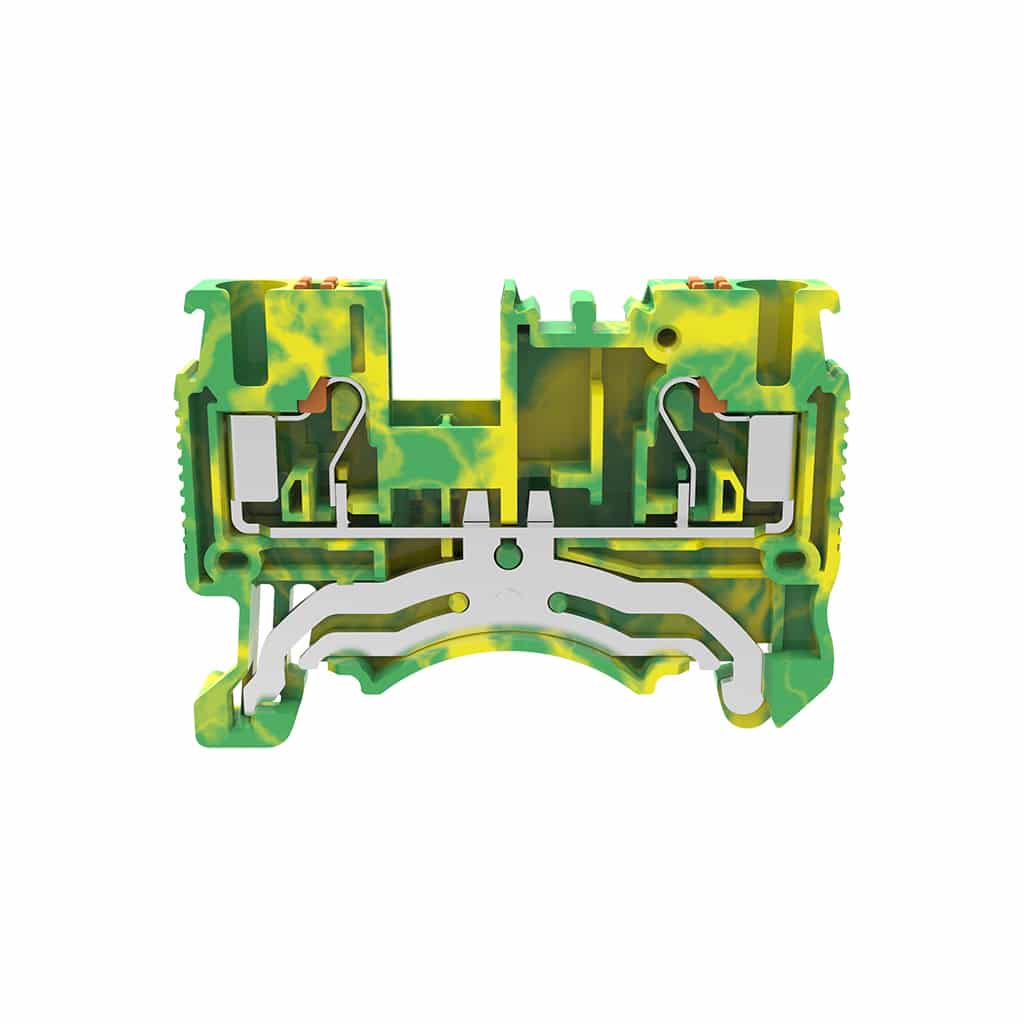

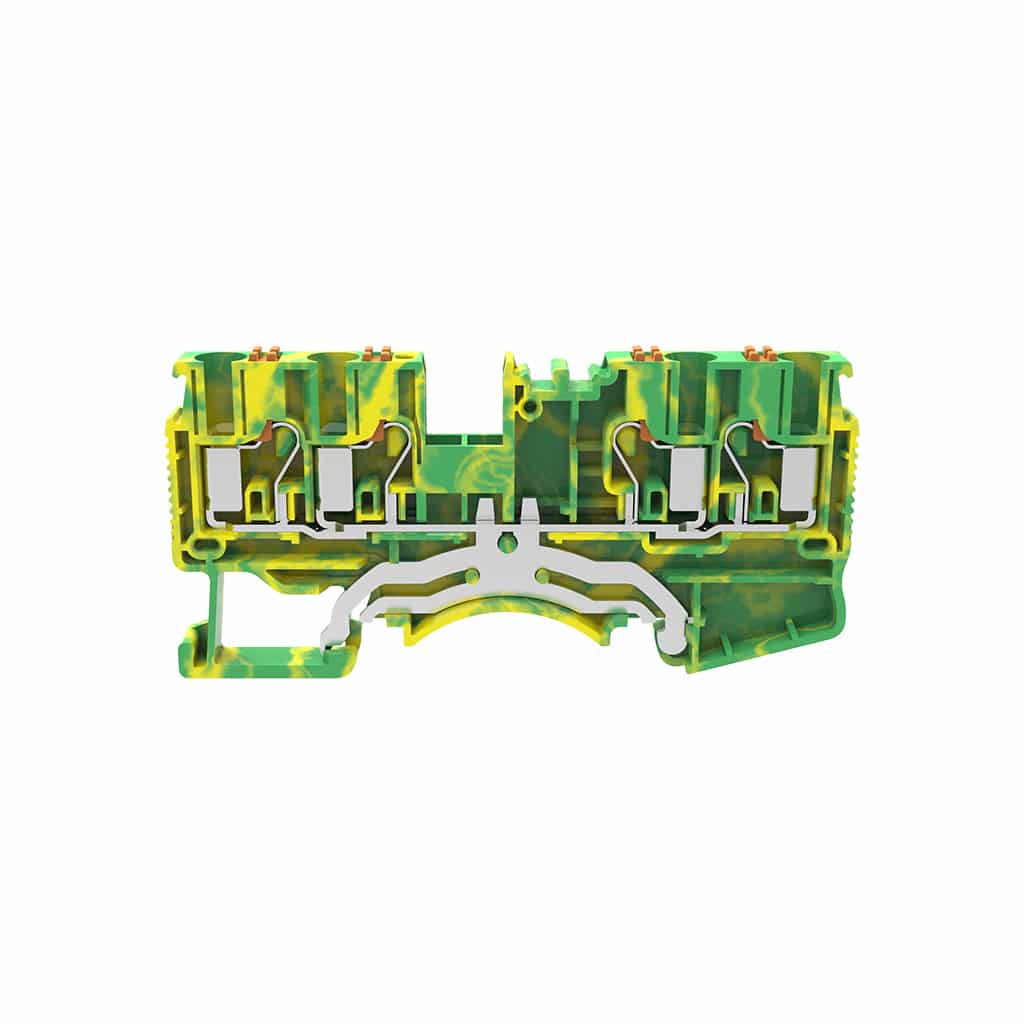

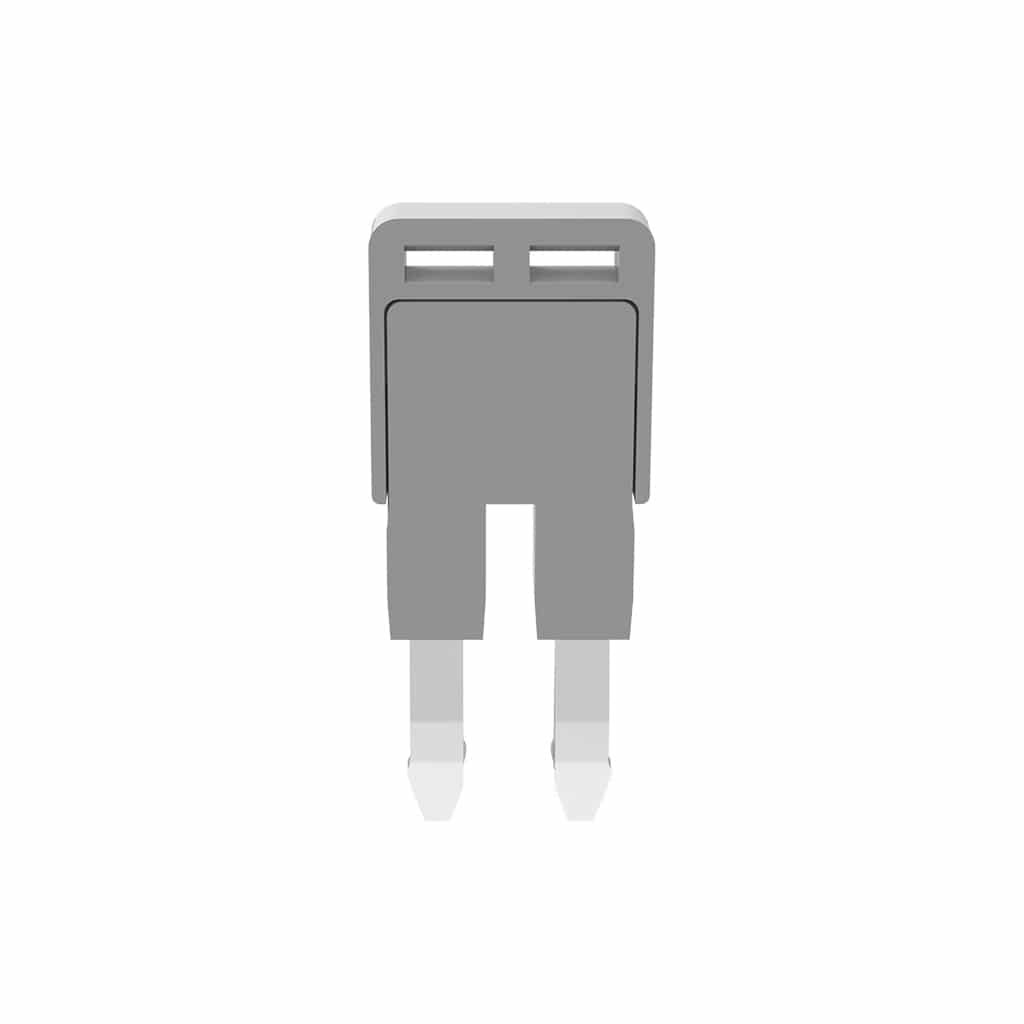

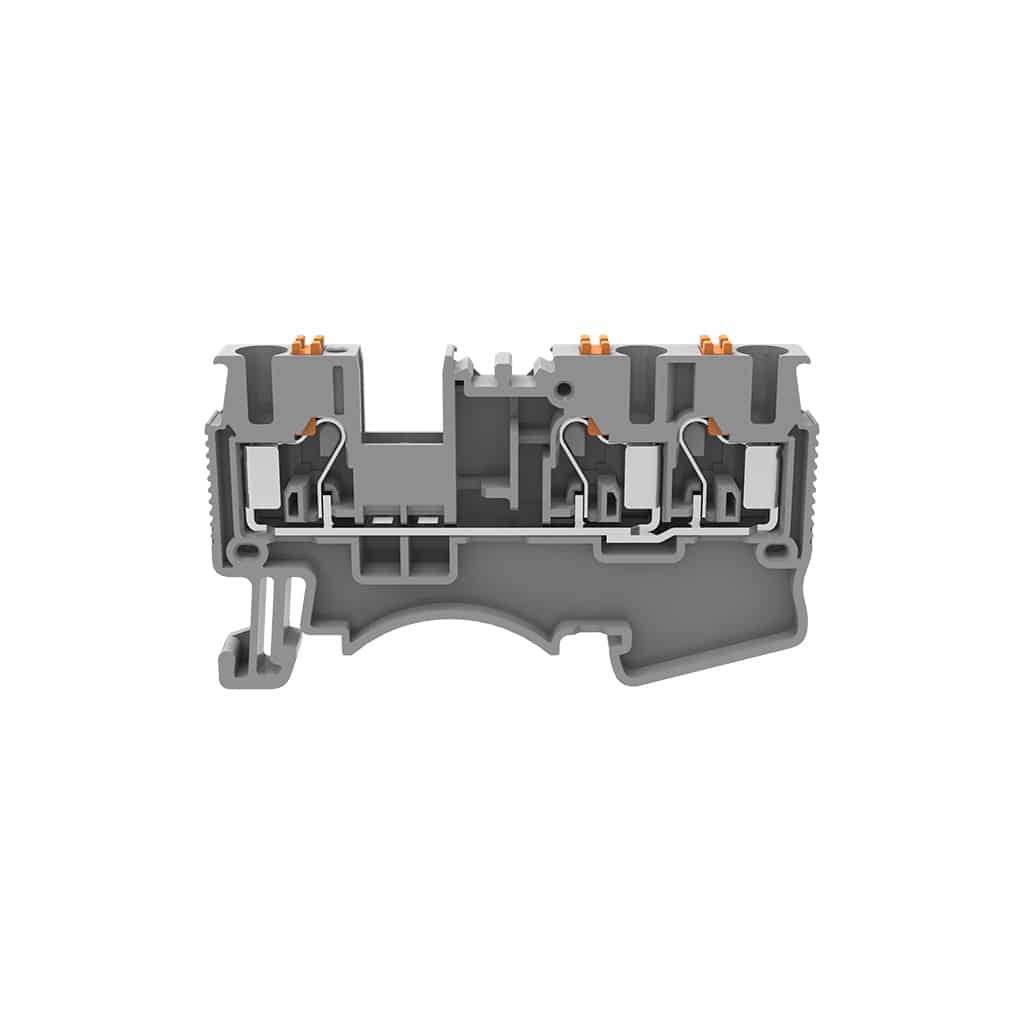

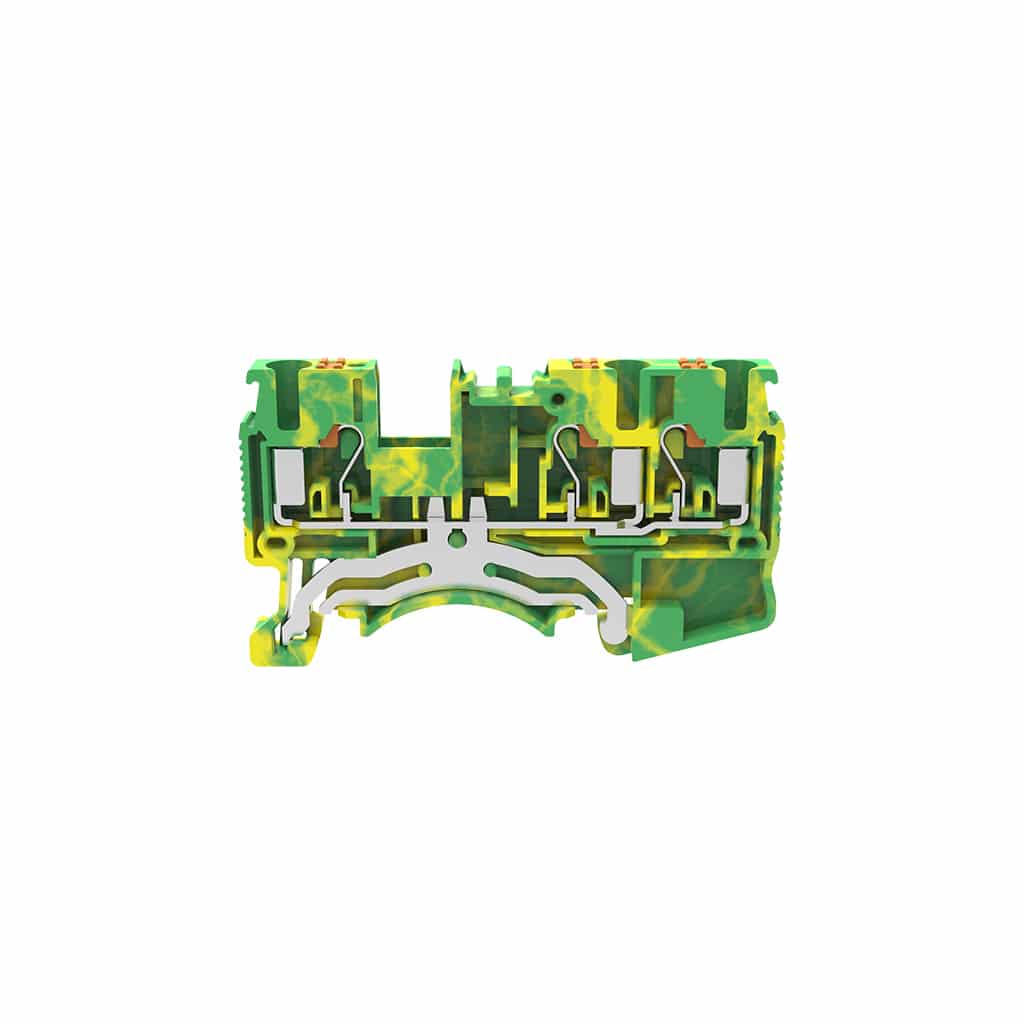

| Description | 2 Way Jumper, 2.5mm2 Earth Connector, 2.5mm2 Grey Connector, Blank Marking Tab, End piece for DS2.5-QU, DS2.5-QU-PE, End piece for DS2.5-TW, DS2.5-TW-PE, End piece for DS2.5, DS2.5-PE, End Stop |
| VDE/CE Ratings | 0.2-2.5mm2 24a @ 800V, 0.2-4mm2 (solid), 0.2-4mm2(solid) 24a @ 800V, 0.2-2.5mm2 |
| UL Ratings | 12-26awg, 12-26wg 20a @ 600V |
| Number of Positions | 2, 3, 4, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, CE, UL |
Product Description

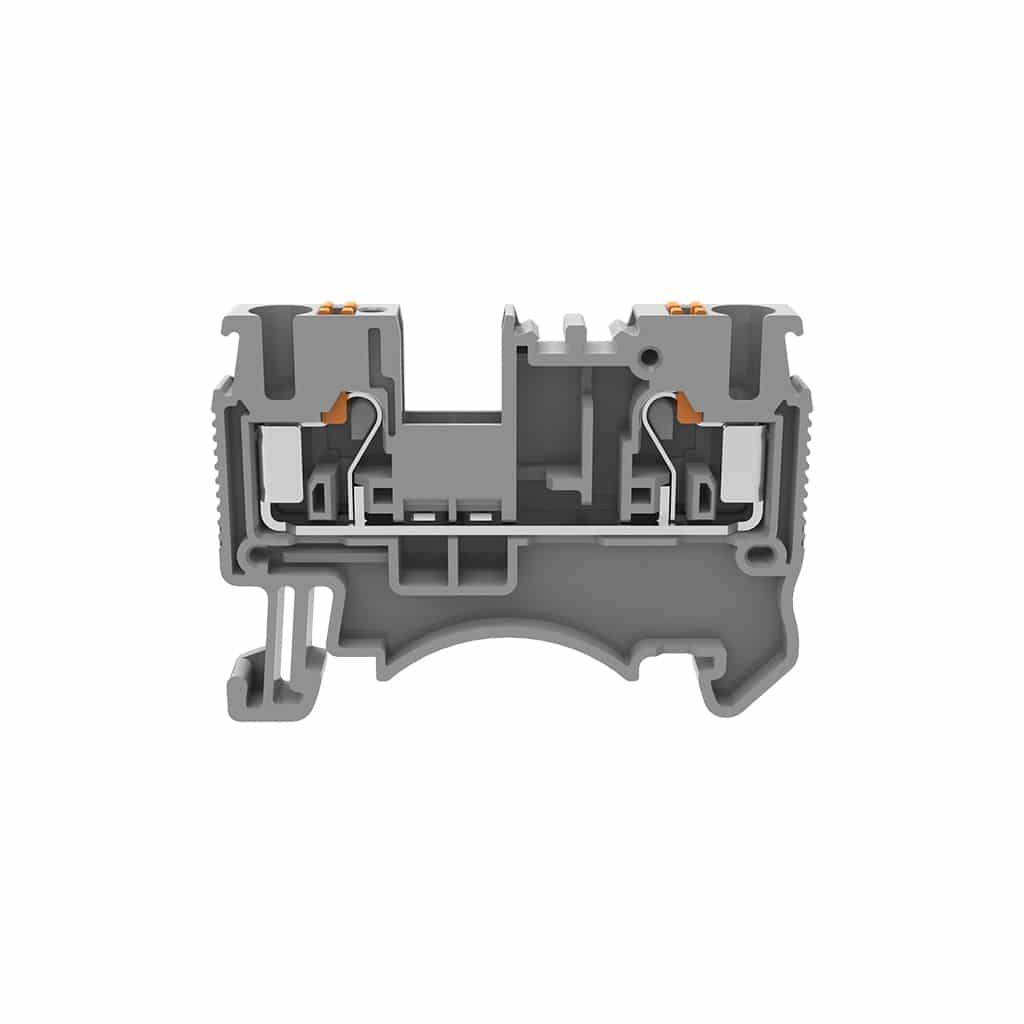

DS2.5 series is a Push-in Type Din-Rail clamped with a spring cage offering upto 2.5mm2 Cable entry. Product is available in multiple colours upon request. DS2.5 series are PA66 material offering the highest V0 flammability rating.
- 2.5mm2
- Push-In
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
