23.9″ Stretch Display (1920×359 pixels)

SKU: 23.9" Stretch Display Categories: , Manufacturer:

Product specs

Dimensions 627.1 × 152.5 mm
Display Size

23.9"

Pixels

1920×359

Technology

IPS

Interface

HDMI, LVDS

Product Description

LCD World, with their in house “TFT Slicing” system are able to offer a range of colour displays that are very different than the usual “off the shelf” displays that many suppliers offer.

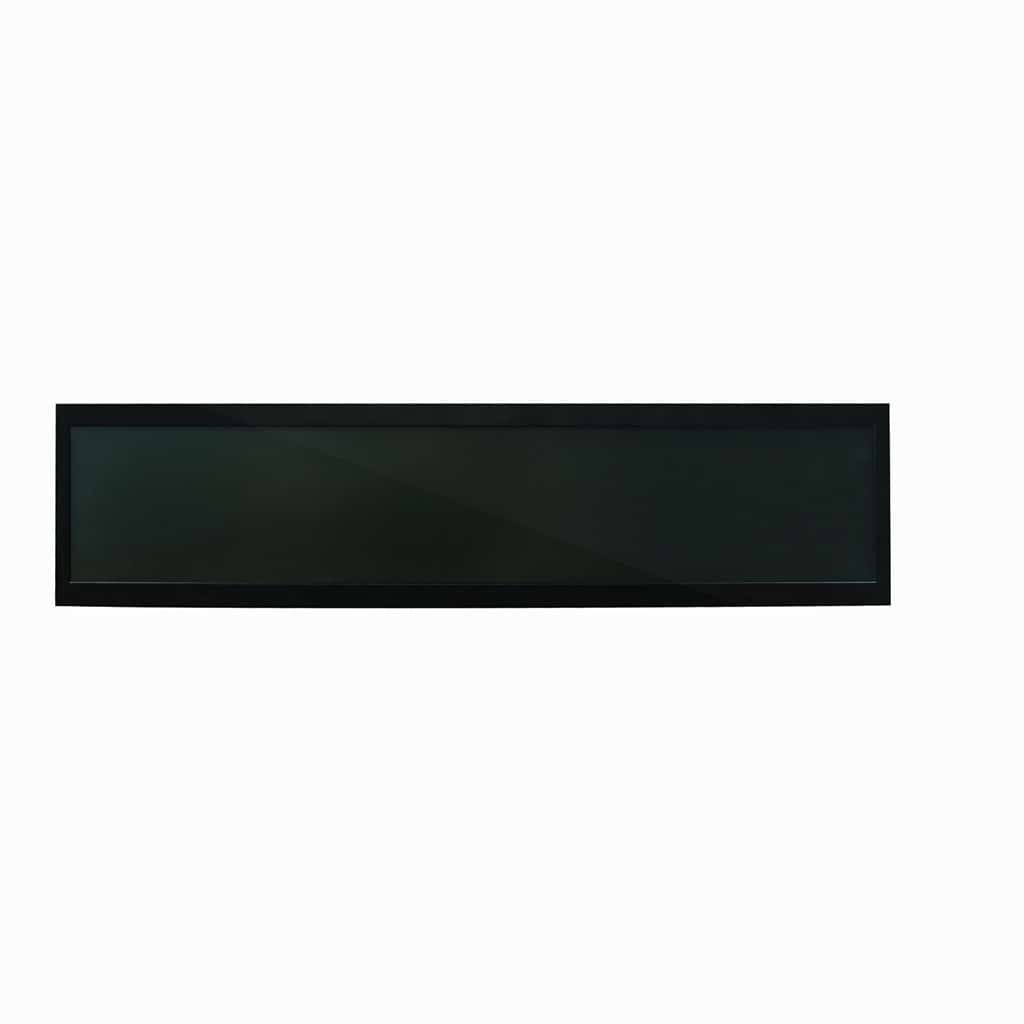

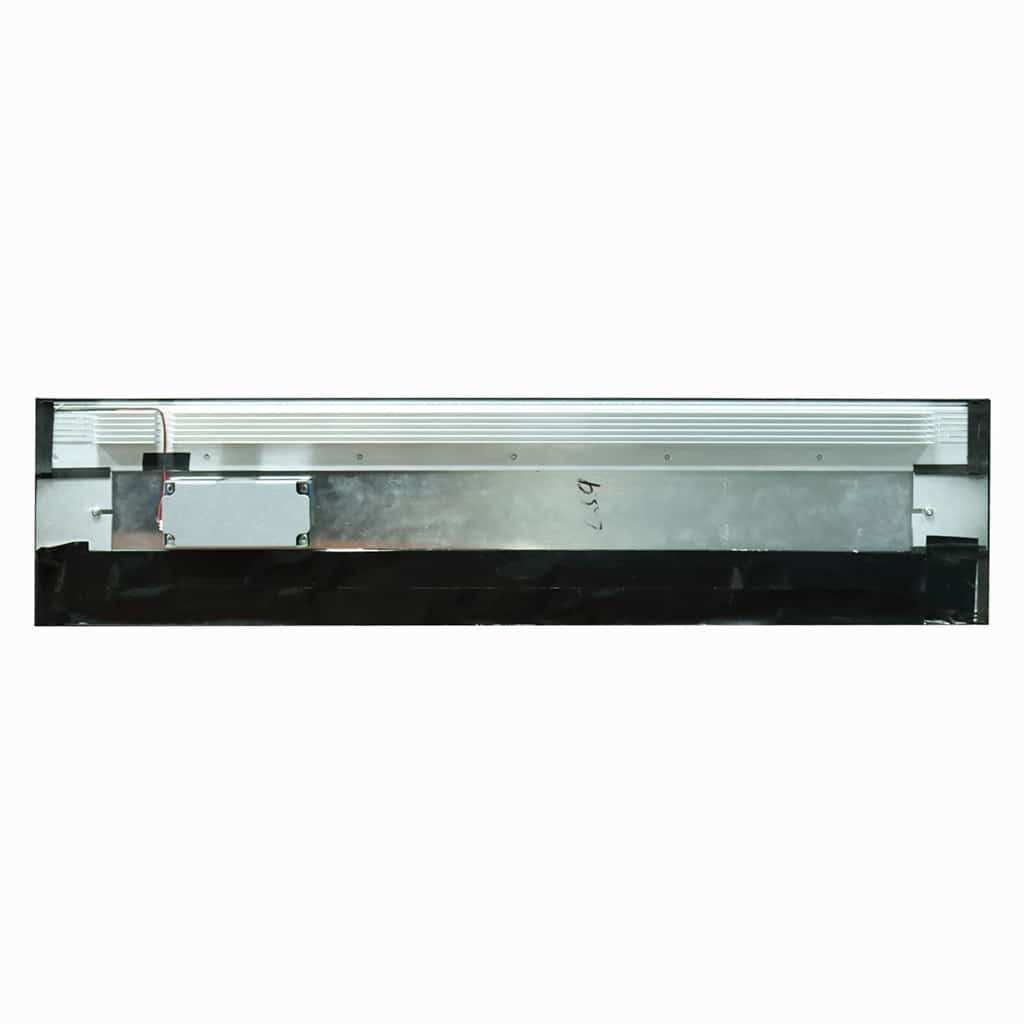

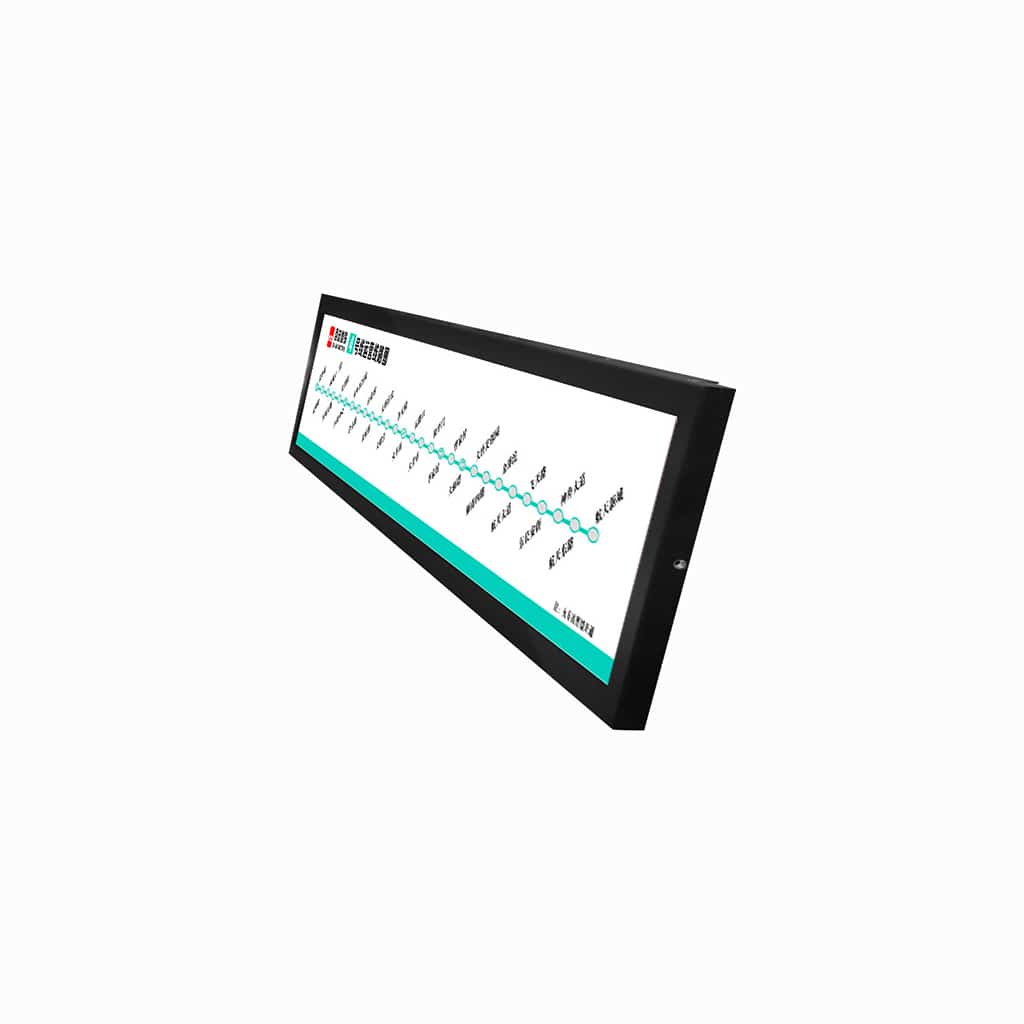

This 23.9″ display with a resolution of 1920×359 is sliced from a larger panel, and offers a viewing area of 601.6mm x 116.0mm all within an overall dimension of 627.1mm x 152.5mm x 25.8mm.

Using IPS technology, this display has great all round viewing angles and offers 16.7M colours with a contrast ratio of 1200:1

Resistive and Capacitive Touchscreens are available upon request

This is just one example of the type of products that LCD World are able offer, and we are happy to discuss any size/custom requirement that customers may have. Low NREs and MOQs make having a custom TFT a viable option, so please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application

  • 23.9″ TFT
  • 1920×359 Pixels
  • Full Colour IPS
  • Overall Dimensions: 627.1mm x 152.5mm x 25.8mm
  • Viewing Area: 601.6mm x 116.0mm
  • Active Area: 597.9mm x 112.0mm
  • Choice of Interface
  • Operating Temperature: -20°C to +70°C
  • Resistive (RTP) or Capacitive (CTP) available
  • Contrast: 1200:1
  • Colours: 16.7M
  • Viewing Angles: 85/85/80/80
  • Custom backlight or FFC available
