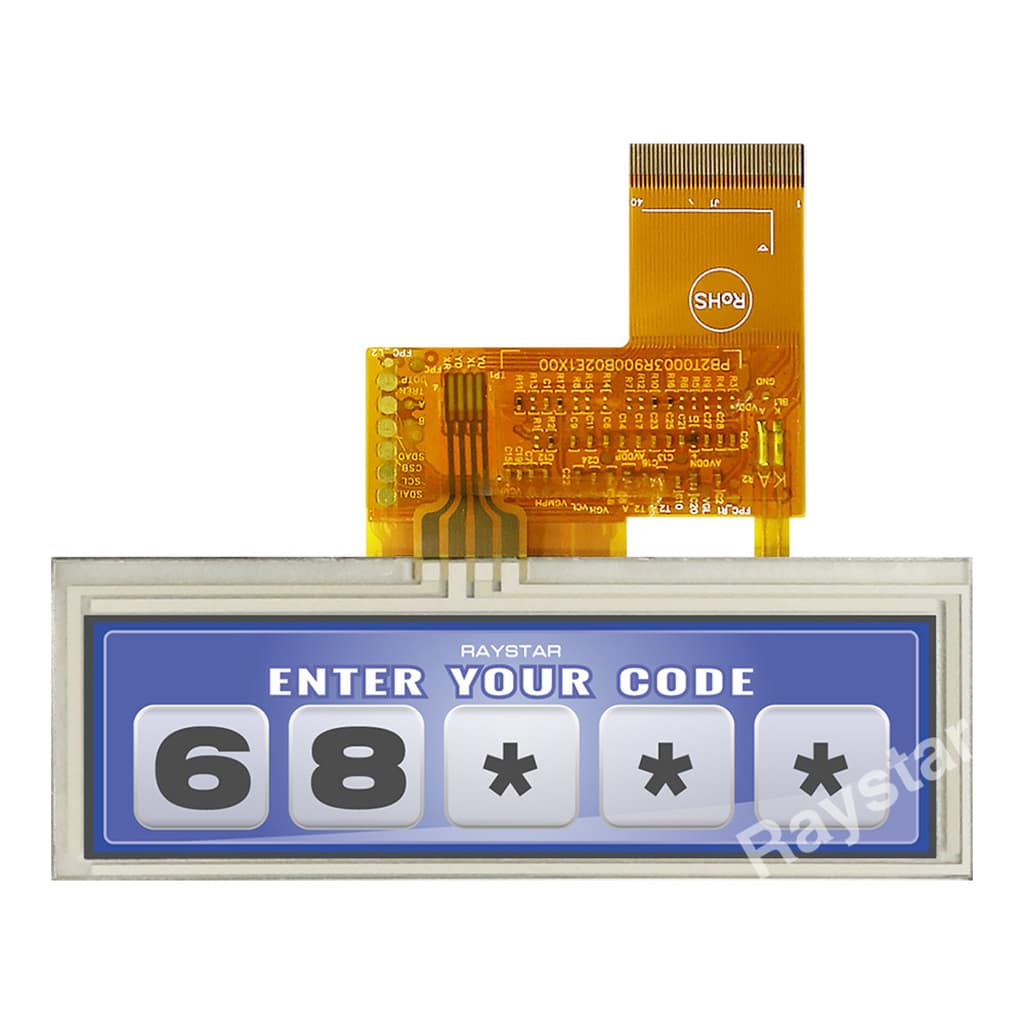

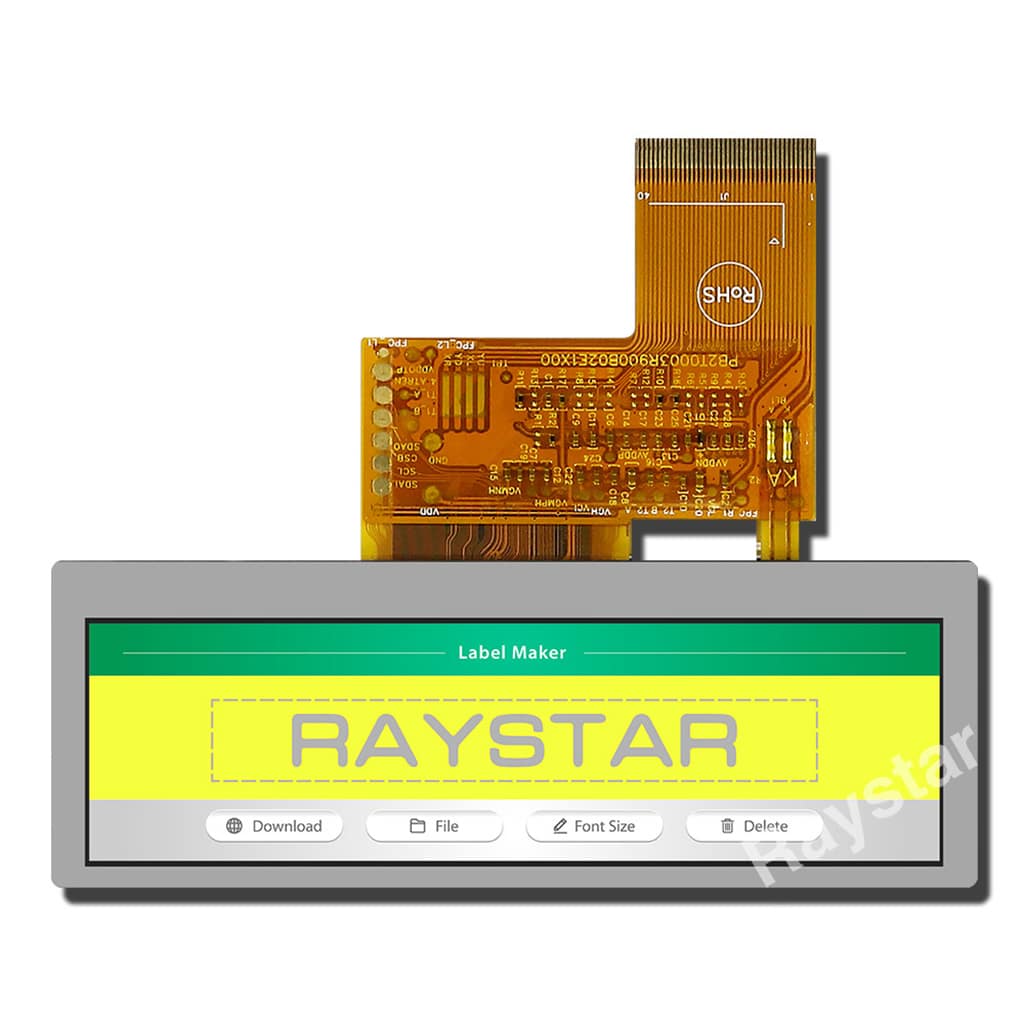

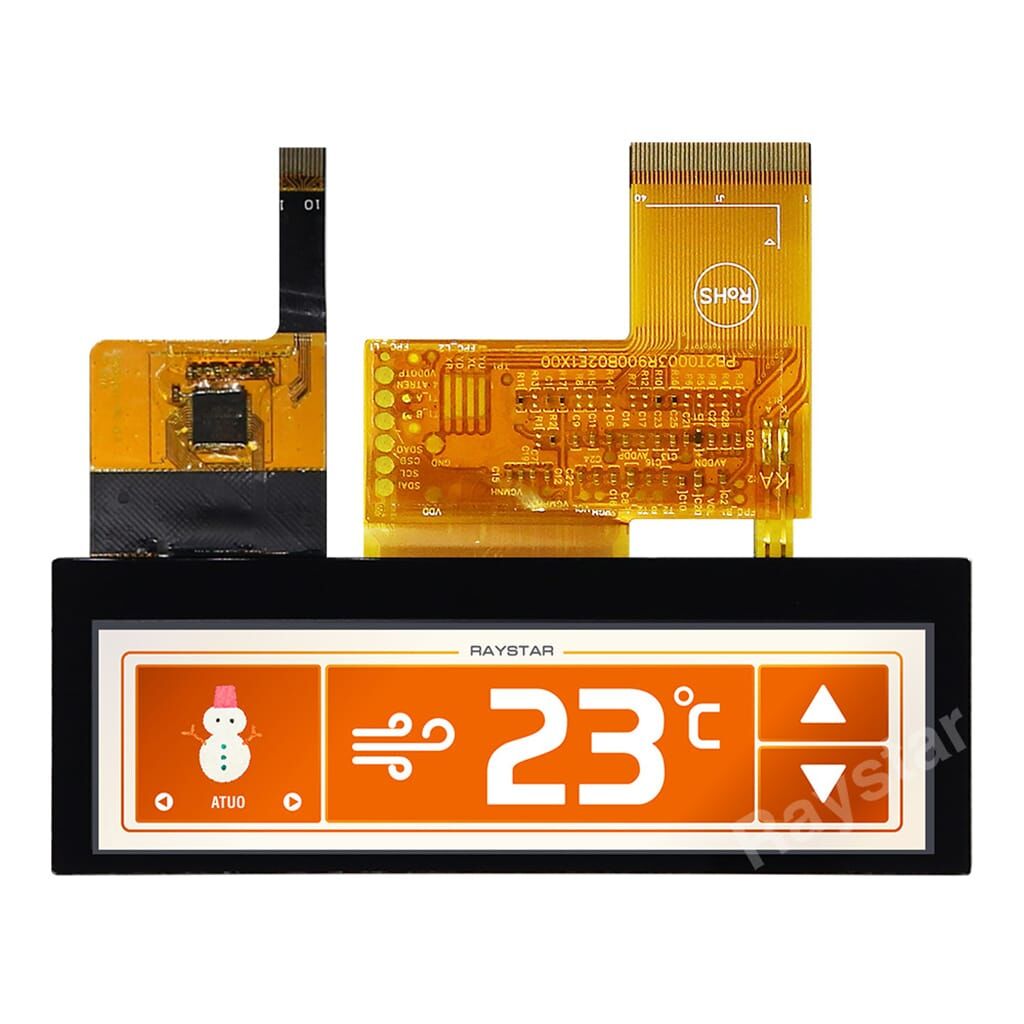

3.9″ TFT Display Module (480×128 pixels)

SKU: 3.9" TFT Categories: , Manufacturer:

Product specs

Dimensions 105.5 × 37.0 mm
Display Size

3.9"

Pixels

480×128

Technology

TN

Interface

MCU, RGB

Product Description

Easby Electronics are able to offer several different variants of the popular 3.9″ size TFT from Raystar. These 480×128 devices are available in TN Technology and can also be supplied with O-Film which offers enhanced viewing angles if required.

We can offer a choice of  RGB or MCU interfacing

Customers can also select various backlight intensities, as well as discuss custom options for both the backlight or the FFC to suit specific requirements

Resistive and Capacitive Touchscreens are available upon request

As we have several different options for this type of product, please contact our sales office on +44 (0) 1748 850555 or send an email to displays@easby.com for further details to ensure we help select the device that is perfect for your application

  • 3.9″ TFT
  • 480×128 Pixels
  • TN Technology
  • O-Film Options available (for enhanced viewing angles)
  • RGB or MCU Interface
  • Operating Temperature: -20°C to +70°C
  • Resistive (RTP) or Capacitive (CTP) available
  • Custom backlight or FFC available
