4mm2 – Push-In – DS4 – Din-Rail Series

Product specs

Dimensions N/A

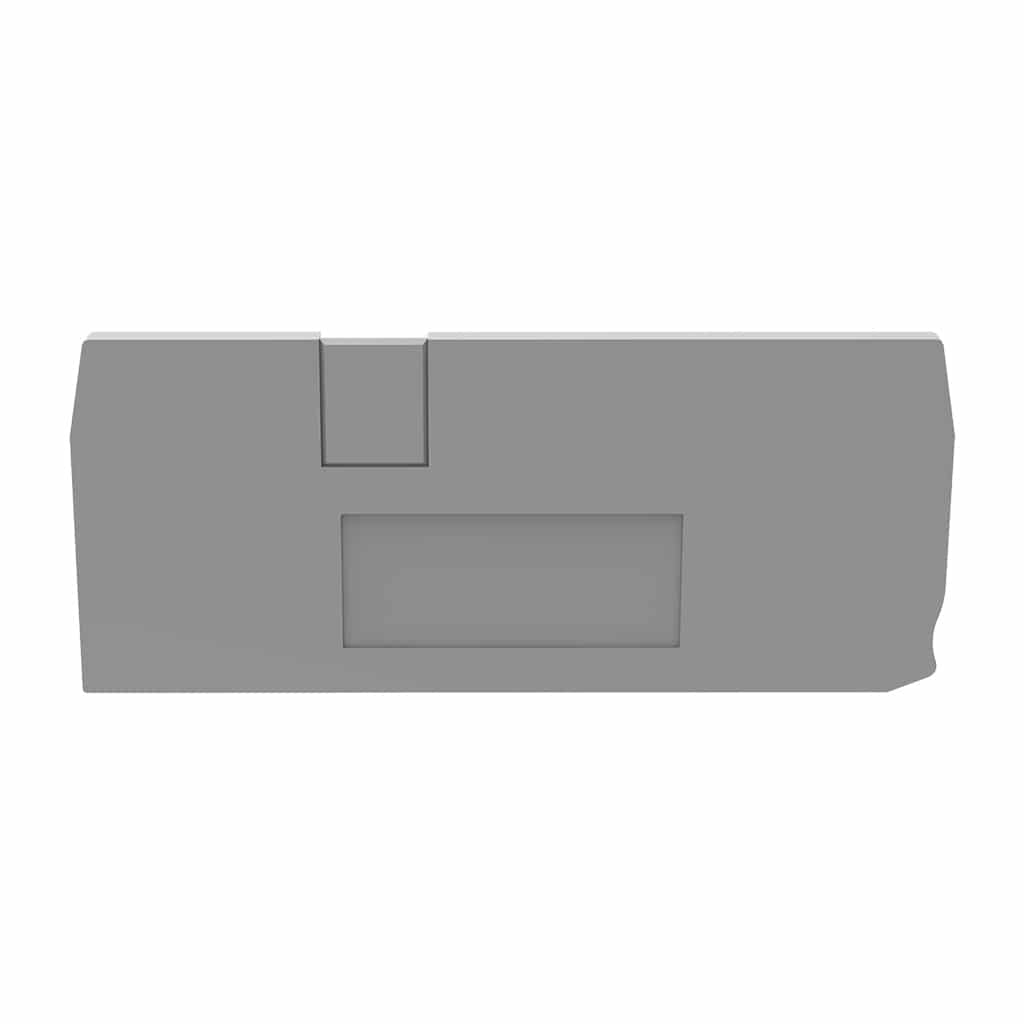

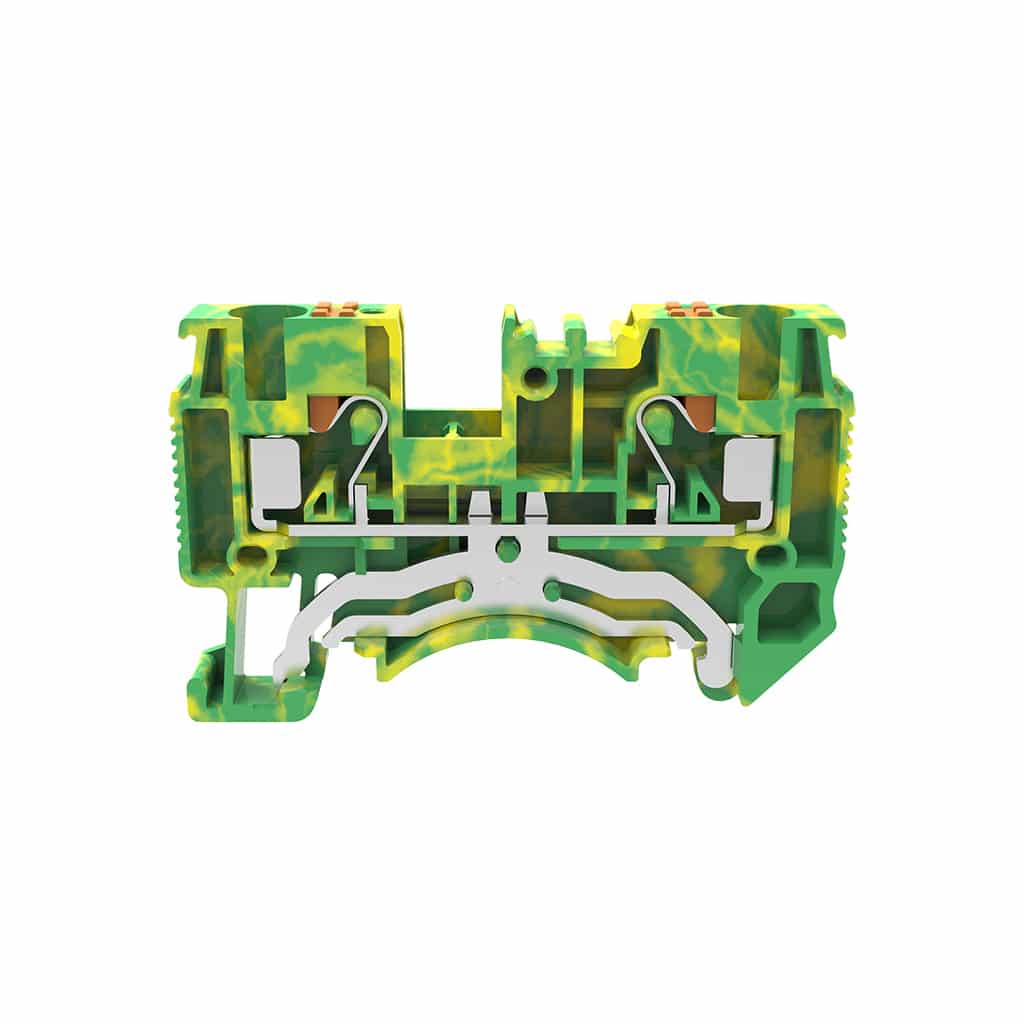

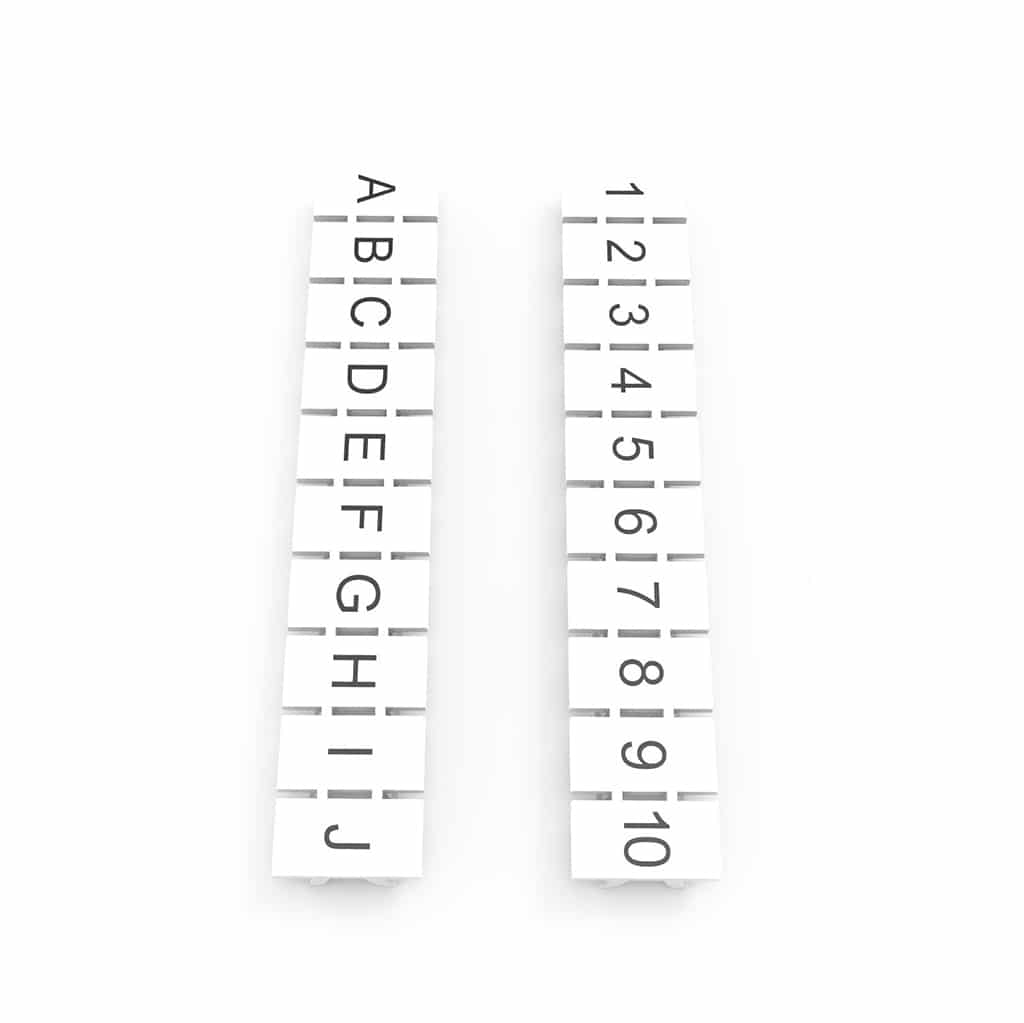

2 Way Jumper, 4mm2 Earth Connector, 4mm2 Grey Connector, Blank Marking Tab, End piece for DS4-QU, DS4-QU-PE, End piece for DS4-TW, DS4-TW-PE, End piece for DS4, DS4-PE, End Stop

VDE/CE Ratings

0.2-4mm2 32a @ 800V, 0.2-6mm2 (solid), 0.2-6mm2 (solid) 32a @ 1000V, 0.2-4mm2

UL Ratings

10-24awg, 10-24awg 28a @ 600V, 10-24awg 30a @ 600V

Number of Positions

2, 3, 4, 10


Grey, Yellow/Green, Red, Blue, Black



Product Description

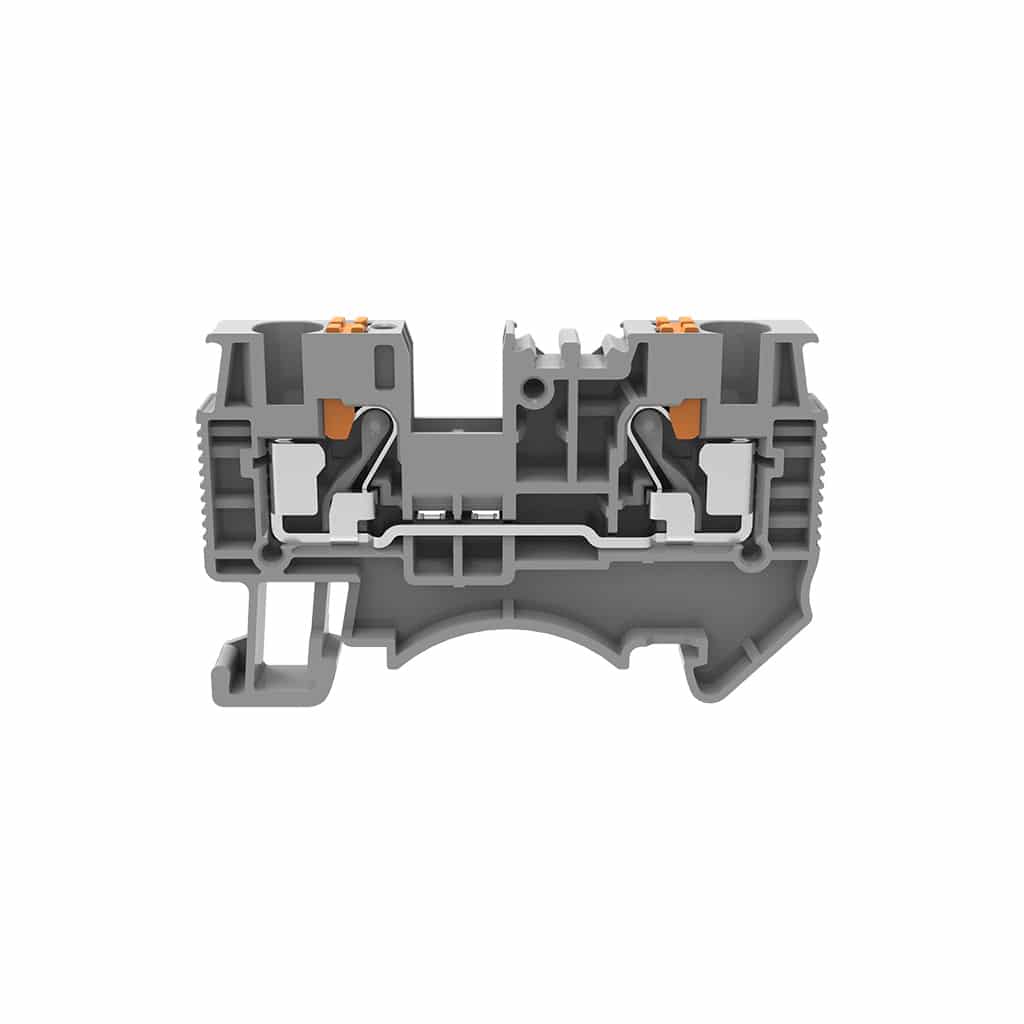

DS4 series is a Push-in Type Din-Rail clamped with a spring cage offering upto 4mm2 Cable entry. Product is available in multiple colours upon request. DS4 series are PA66 material offering the highest V0 flammability rating.

  • 4mm2
  • Push-In
  • Flammability Rating -V0
  • Temperature – -40 + 105C
  • Material PA66
  • Other colours available on request
