6mm2 – Push-In – DS6 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

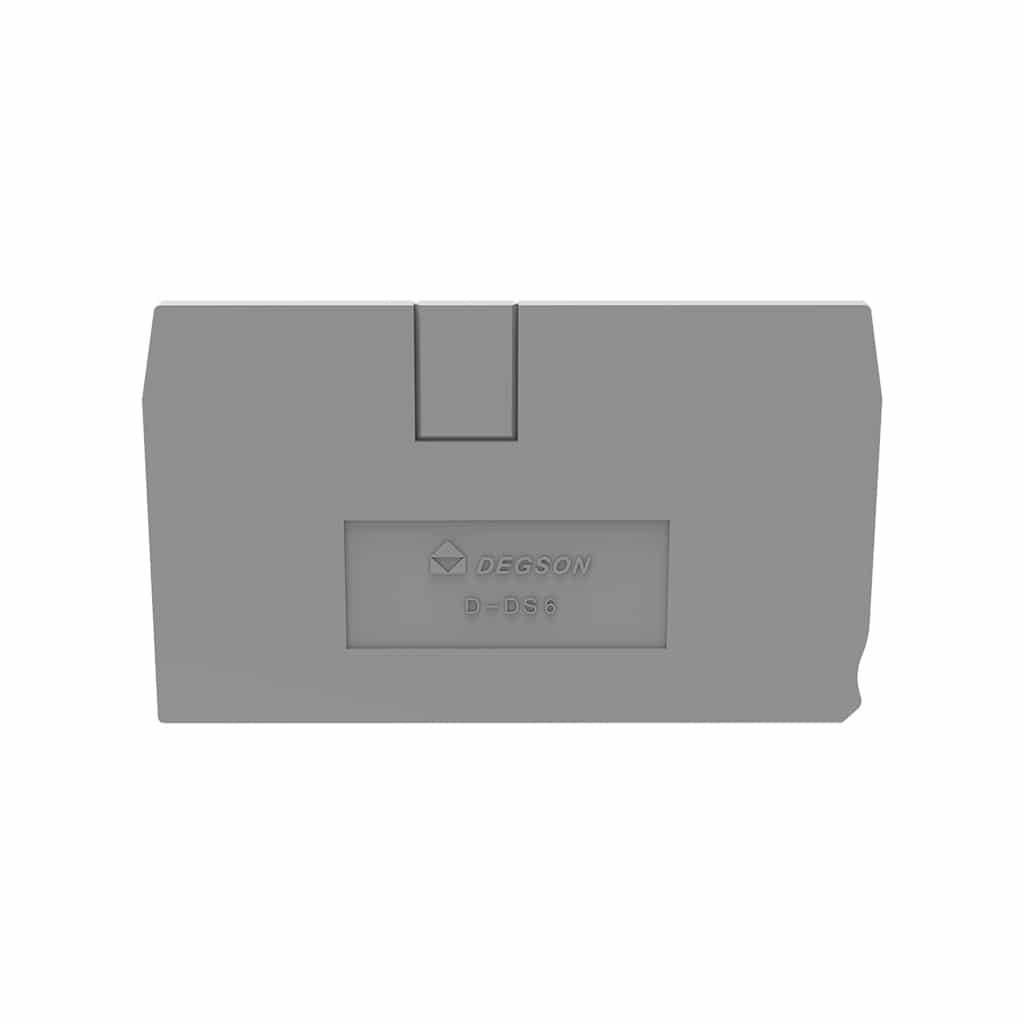

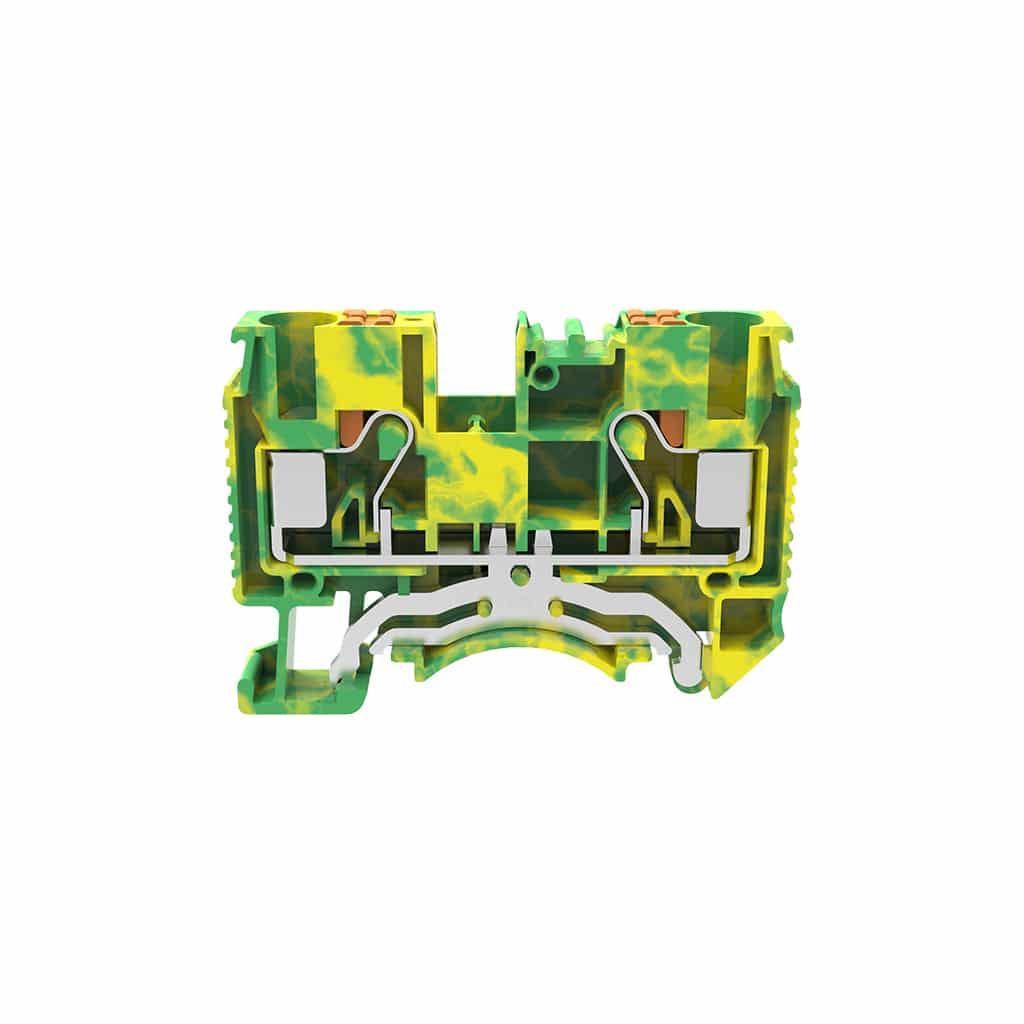

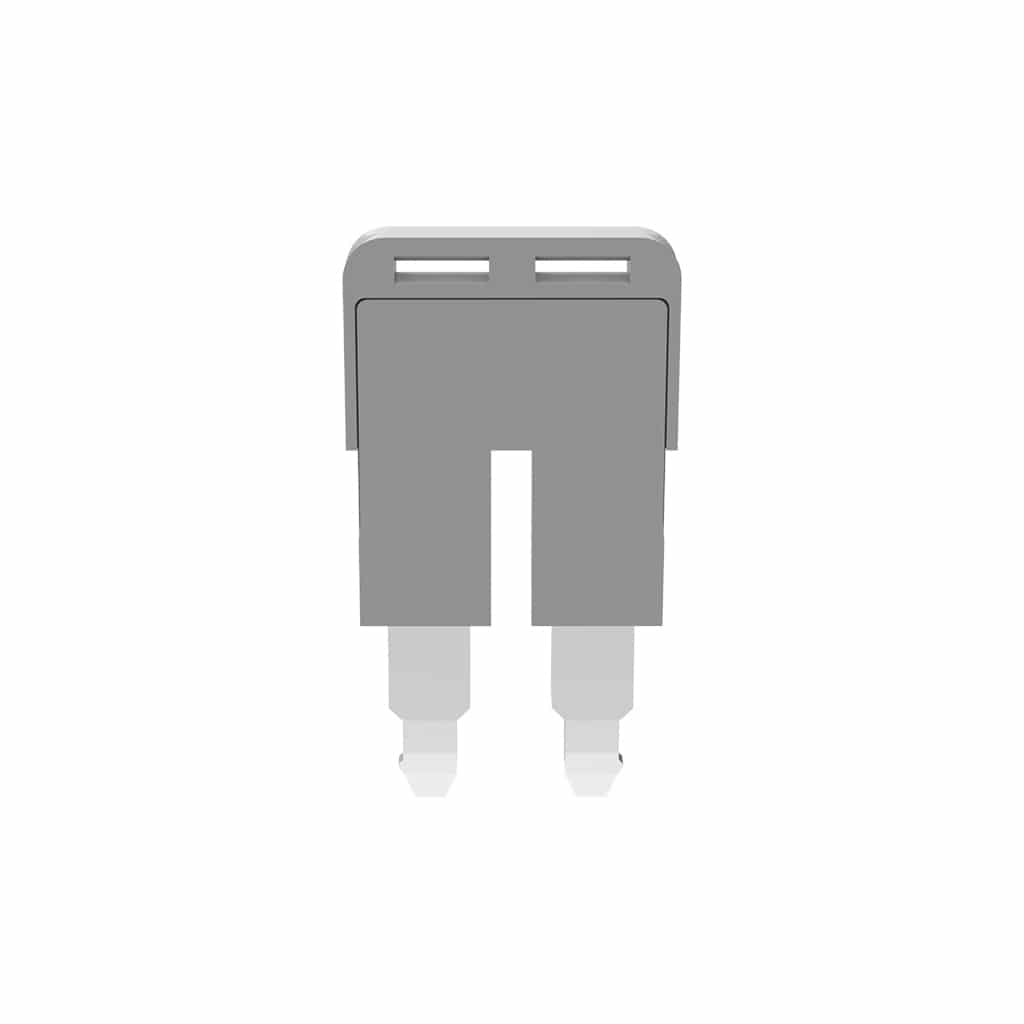

| Description | 2 Way Jumper, 6mm2 Earth Connector, 6mm2 Grey Connector, Blank Marking Tab, End piece for DS6, DS6-PE, End Stop |
| VDE/CE Ratings | 0.5-10mm2 (solid) 41a @ 1000V, 0.5-10mm2(solid) |
| UL Ratings | 8-20awg, 8-20awg 40a @ 600V |
| Number of Positions | 2, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, UL |
Product Description

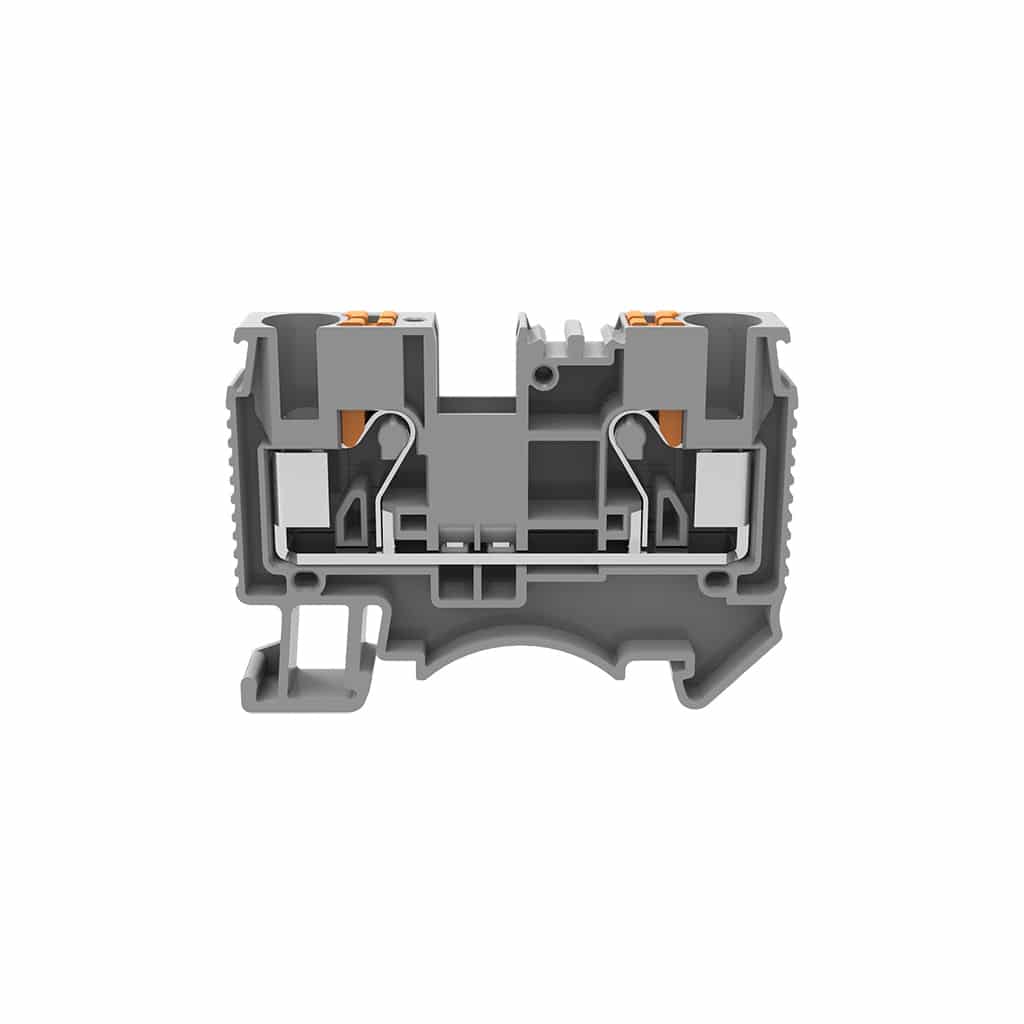

DS6 series is a Push-in Type Din-Rail clamped with a spring cage offering upto 6mm2 Cable entry. Product is available in multiple colours upon request. DS6 series are PA66 material offering the highest V0 flammability rating.
- 6mm2
- Push-In
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
