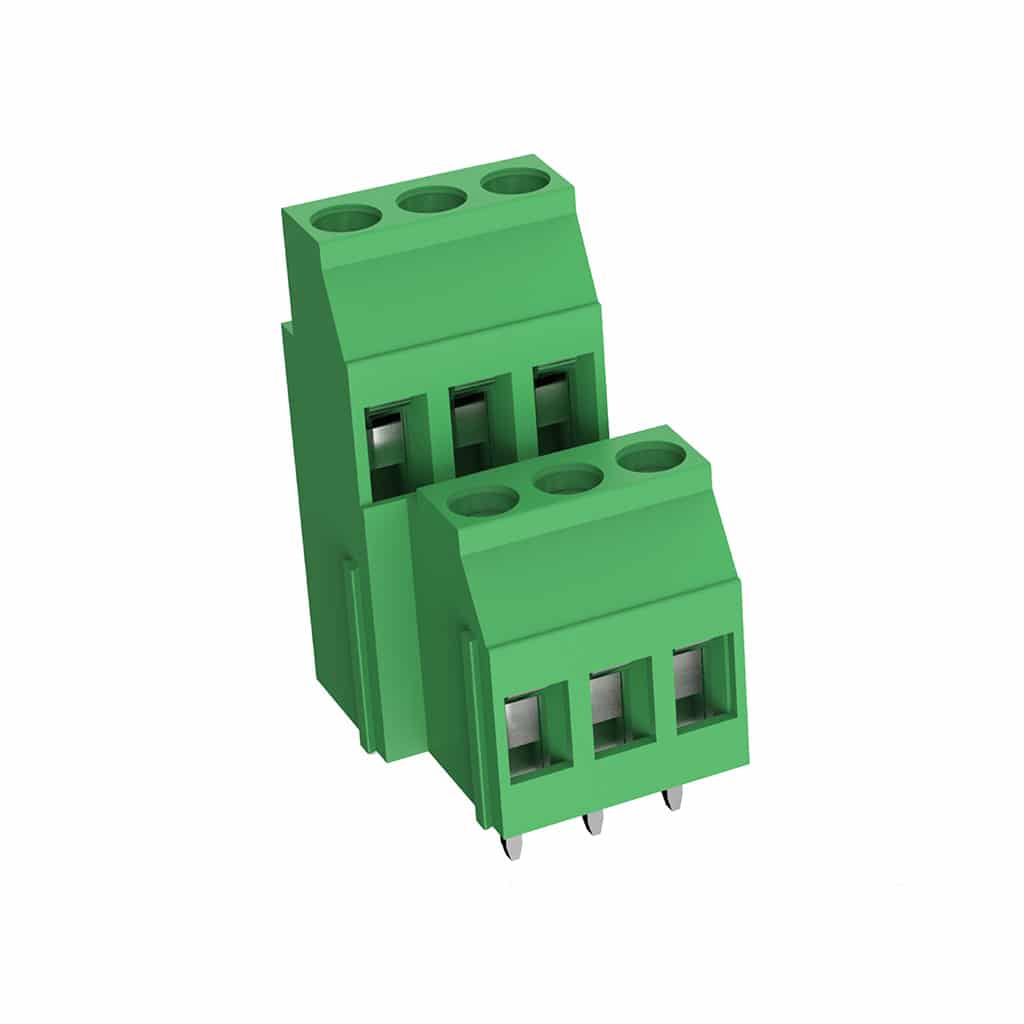

Rising Clamp , 5mm Pitch , Two Tier – DG130A-5.0-xxP-1400AH
Product specs
| Height | 31.5mm |
|---|---|
| Pitch | 5mm |
| Wire Orientation | Horizontal |
| Poles | 4, 6 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG130A-5.0 series is a 2 tier block from Degson. Products are available on 4 way (2×2) and 6 way (3×2) but with interlocking can be made to any number of ways. Also available on 5.08mm pitch and with different heights.
DG130A series is both UL & VDE approved and with the highest V0 flammability rating.
- Pitch 5mm – 2 Tier
- 31.5mm High – 22.3mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M3 slotted
- Torque – 20.4kgf / cm
- UL E228872 – 12-26 Awg – 20A @ 300v
- VDE 40036390 – 0.5-2.5mm2 – 20A @ 450v
- Interlocking device
- Colour Green as standard
