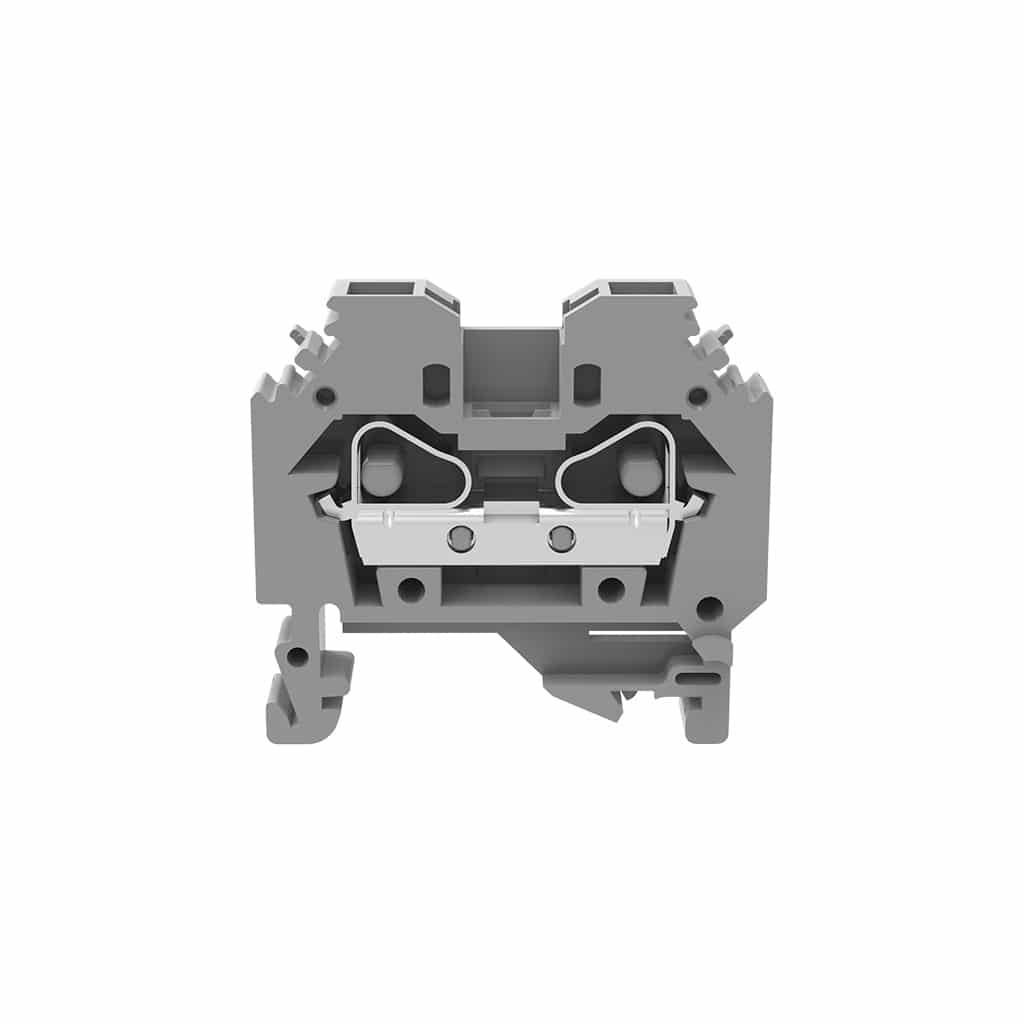

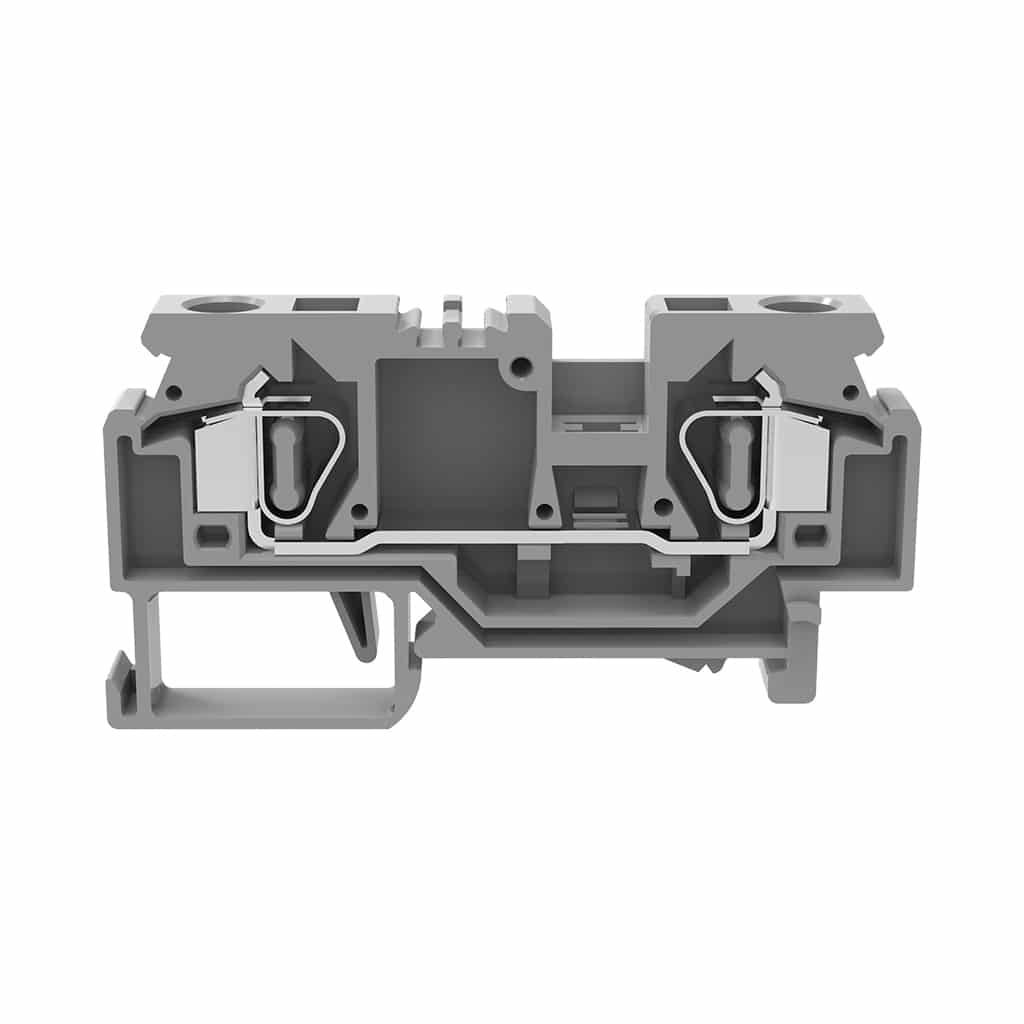

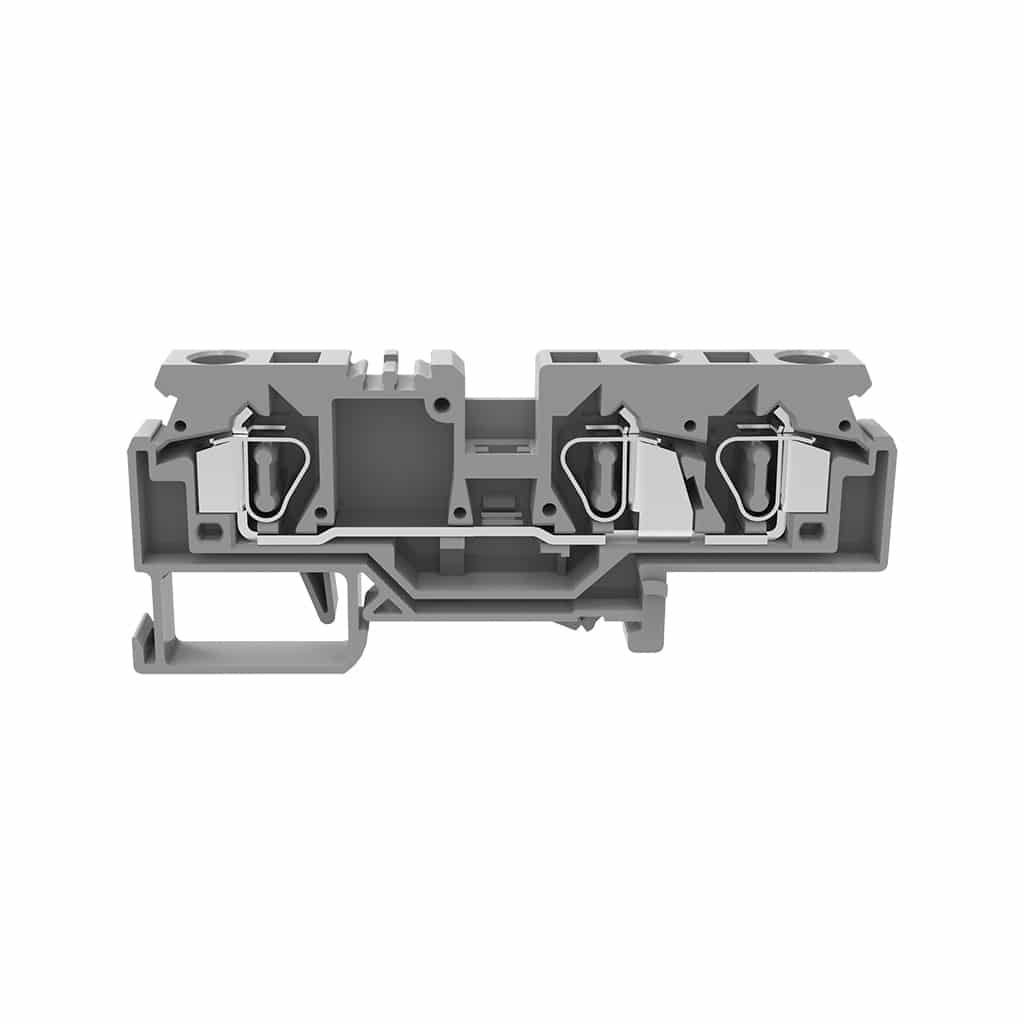

6mm2 – Spring Cage – WS6 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|
| Description | 2 Way Jumper, 6mm2 Earth Connector, 6mm2 Grey Connector, Blank Marking Tab, End piece for WS6-SD, WS6-SD-PE, End piece for WS6-TW, WS6-TW-PE, End Piece for WS6, WS6-PE, End Stop |
| VDE/CE Ratings | 0.2-6mm2, 0.2-6mm2 41a @ 800V |
| UL Ratings | 10-24awg, 10-24awg 30a @ 600V |
| Number of Positions | 2, 3, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, CE, UL |
Product Description
WS6 series is a Spring Cage Type Din-Rail connector from Degson offering upto 6mm2 Cable entry. Product is available in multiple colours upon request. WS6 series are PA66 material offering the highest V0 flammability rating.
- 6mm2
- Spring Cage
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
