Circular Power Connector – Chassis Socket, Size 12, 0270 – Series

SKU: 0270 Categories: , , Manufacturer:

Product specs

Poles

2, 3, 4, 5, 6, 7, 8

Rated Current

3A, 5A

Product Description

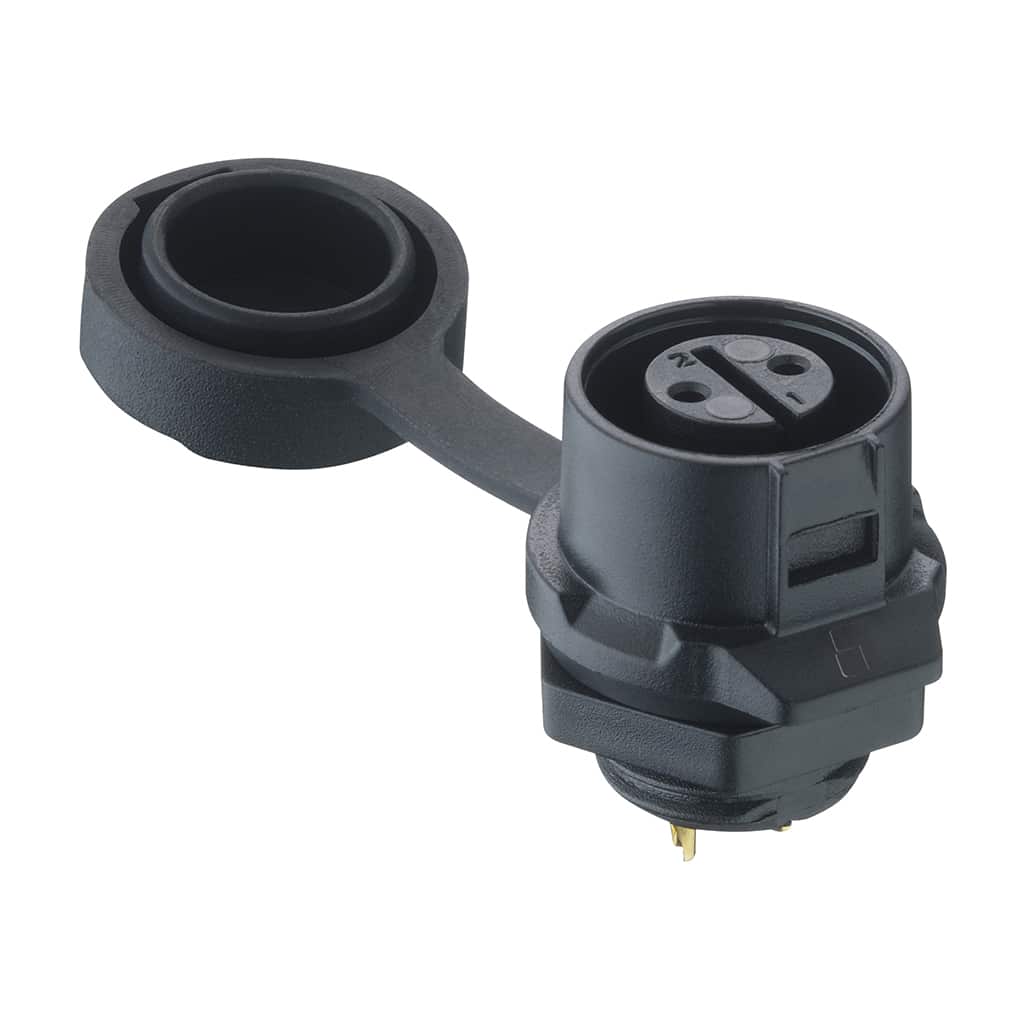

The 02 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. The chassis socket is available with 2, 3, 4, 5, 6, 7 & 8 poles. IP67 when mated, IP65 with the protecting cap. Size 12 for signal and load currents up to 5A (2 ⁓ 6 poles up to 5A  7 ⁓ 8 poles 3A)  Gold plated contacts, rated to 125V. Cable dia 3.00 ⁓ 6.00mm. Please ask for further details.

  • Temperature range: -40 °C/+80 °C
  • Insulating body: PBT, V-0 according to UL94
  • Contact pin: CuZn, gold-plated
  • Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
  • Protection class: IP67 – IP65 with Protection Cap
  • Contact resistance: ≤ 10 mΩ
  • Rated current: 5 A (2–6 poles) 3 A (7–8 poles)
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V AC
