Circular Power Connector – Plug, Size 16, 0251 – Series

SKU: 0251 Categories: , , Manufacturer:
Download PDF

Product specs

Poles

2, 3, 4, 5, 7, 8, 9
Rated Current

5A, 10A

Product Description

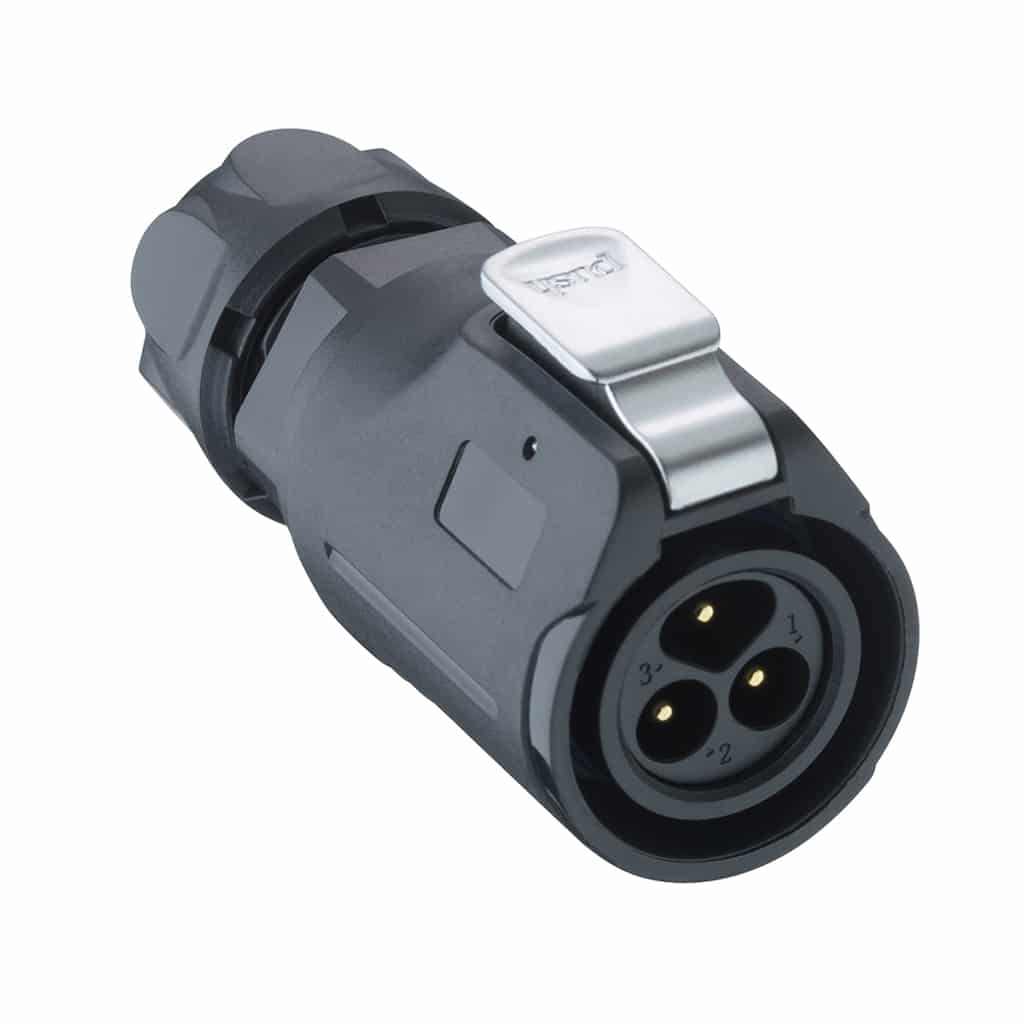

The 02 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. The plug has a locking latch and is available with 2, 3, 4, 5,  7, 8 & 9 poles. IP67 when mated. Size 16 for signal and load currents up to 10A (2 ⁓ 4 poles up to 10A  5 ⁓ 9 poles 5A)  Gold plated contacts, rated to 400V. Cable dia 3.00 ⁓ 8.5mm. Please ask for further details.

  • Temperature range: -40 °C/+80 °C
  • Insulating body: PBT, V-0 according to UL94
  • Contact pin: CuZn, gold-plated
  • Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
  • Protection class: IP67 – IP65 with Protection Cap
  • Contact resistance: ≤ 5 mΩ
  • Rated current: 10A (2–4 poles) 5 A (5–9 poles)
  • Rated voltage: 400 V
  • Rated impulse voltage: 2500 V AC
